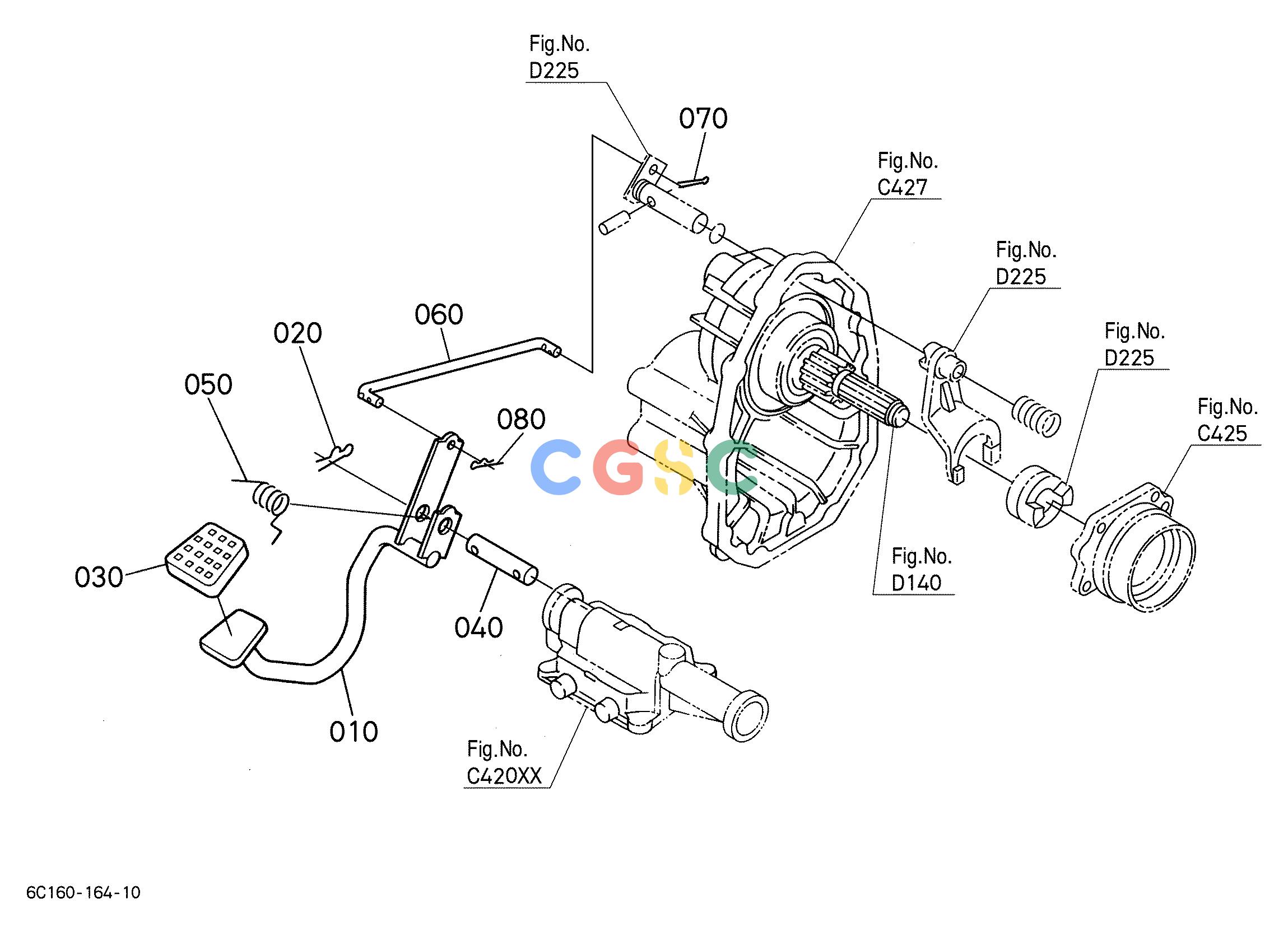

久保田零件查询F20502 DIFFERENTIAL LOCK PEDAL REAR AXLEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
269 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04042870
|
[1] |
PEDAL DIFF.LOCK
|
1.8040(lbs); 0.820
|
| 020. |
0552551600
|
[1] |
PIN SNAP
|
0.0066(lbs); 0.003
|
| 030. |
3741042760
|
[1] |
COVER PEDAL
|
0.0550(lbs); 0.025
|
| 040. |
6C04042860
|
[1] |
SHAFT FULCRUM
|
0.2354(lbs); 0.107
|
| 050. |
6C04042890
|
[1] |
SPRING
|
0.0946(lbs); 0.043
|
| 060. |
6C04042880
|
[1] |
ROD DIFF.LOCK
|
0.2200(lbs); 0.100
|
| 070. |
0551150215
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 080. |
0552550800
|
[1] |
PIN SNAP
|
0.0022(lbs); 0.001
|
