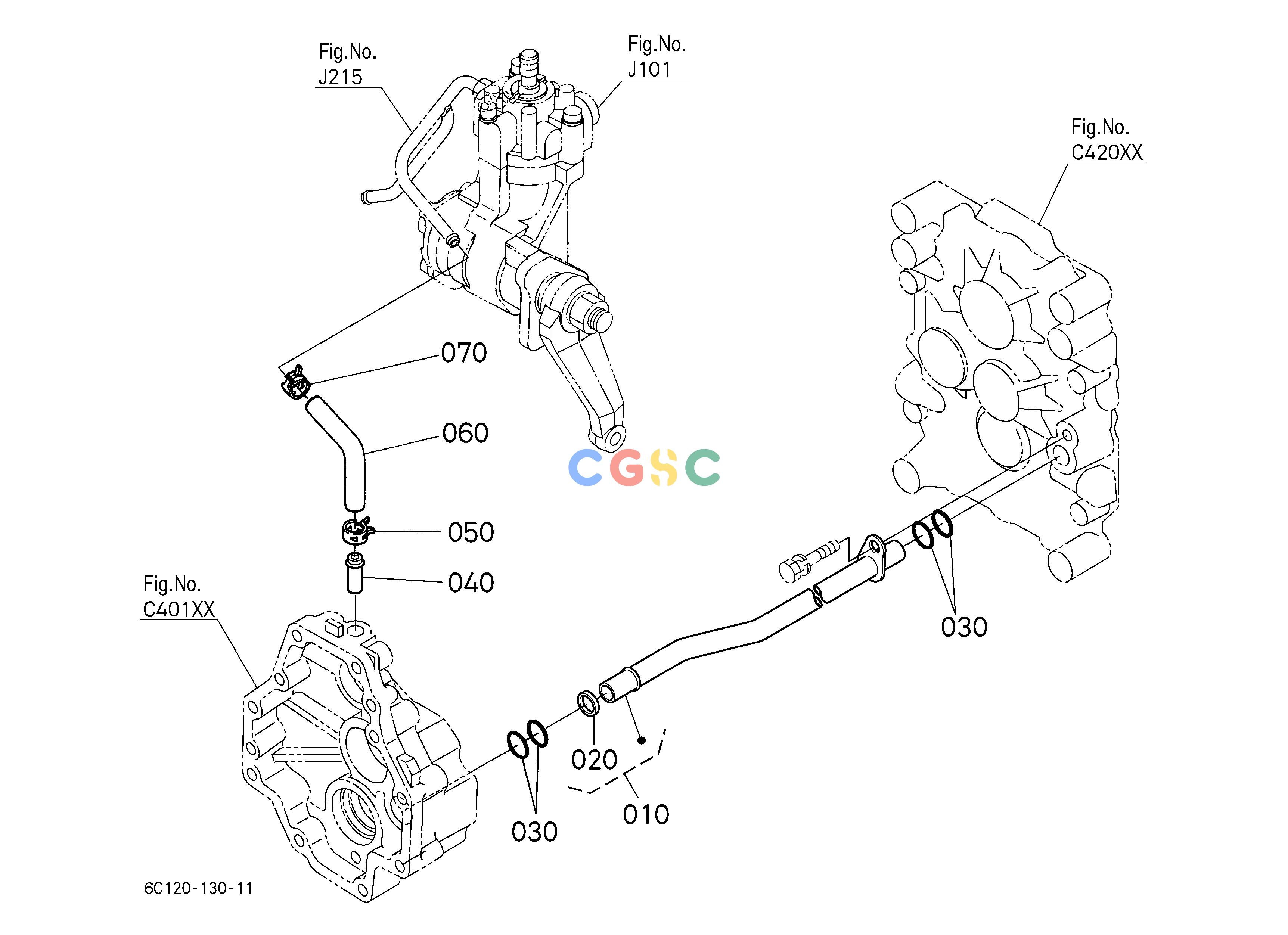

久保田零件查询J24501 HYDRAULIC OIL LINE(F/M) PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
457 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C14013150
|
[1] |
PIPE
|
0.5500(lbs); 0.250
|
| 020. |
6C04013160
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 030. |
0481106170
|
[4] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
0481606170
|
[4] |
O RING
|
0.0110(lbs); 0.005
|
| 040. |
6C14013190
|
[1] |
JOINT PIPE
|
0.0176(lbs); 0.008
|
| 050. |
0931888125
|
[1] |
CLAMP HOSE
|
0.0022(lbs); 0.001
|
| 060. |
6C05013140
|
[1] |
HOSE HYDRAULIC
|
0.0286(lbs); 0.013
|
| 070. |
0931888125
|
[1] |
CLAMP HOSE
|
0.0022(lbs); 0.001
|
