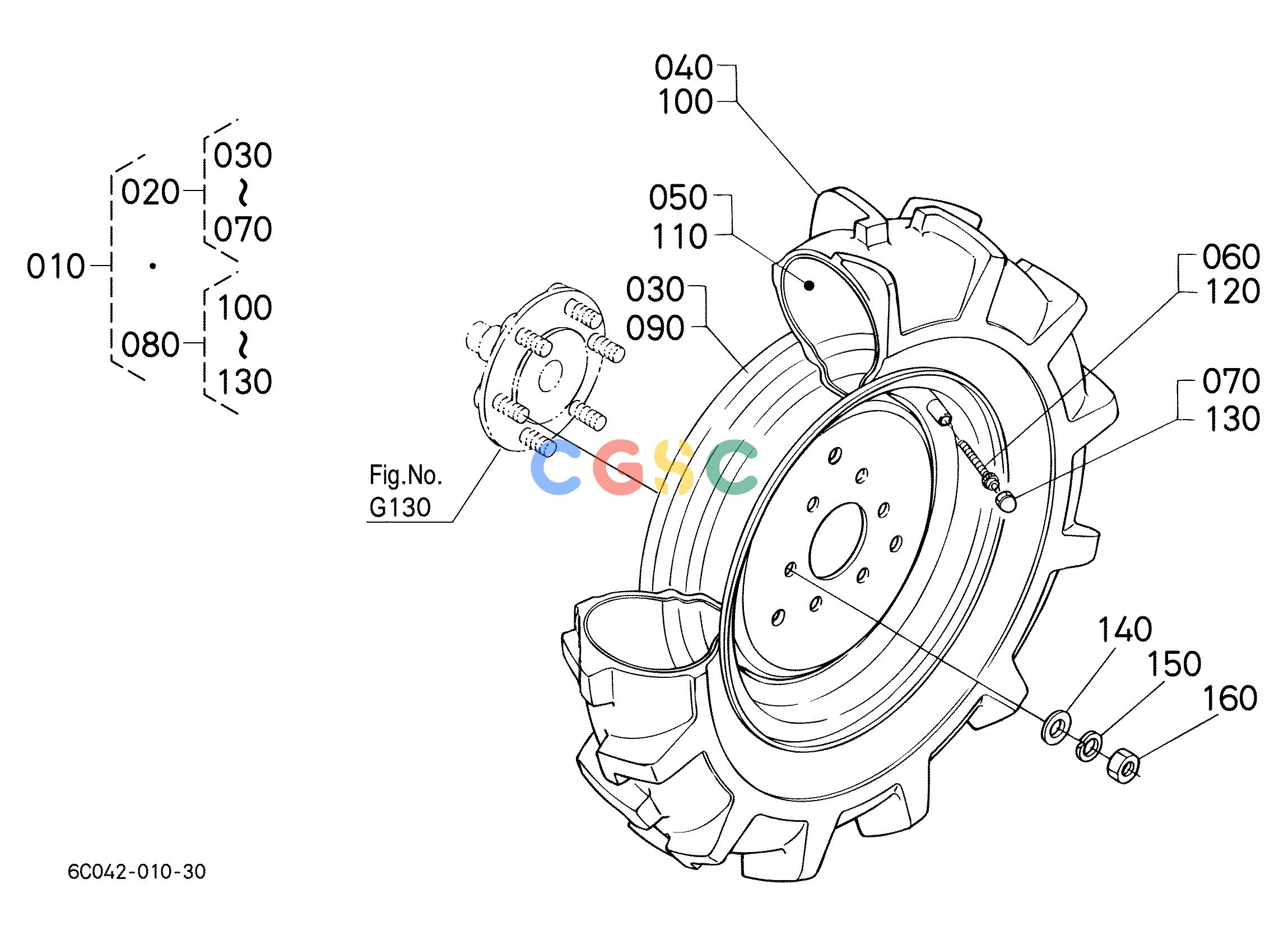

久保田零件查询R10106 FRONT WHEEL(6-12) [AU][NZ] FRONT TIREEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
510 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04250110
|
[1] |
ASSY WHEEL
|
59.4000(lbs); 27.000
|
| 020. |
6C04250120
|
[1] |
ASSY WHEEL LH
|
29.7000(lbs); 13.500
|
| 030. |
3750057920
|
[1] |
WHEEL
|
12.7600(lbs); 5.800
|
| 040. |
6752157330
|
[1] |
TIRE
|
16.2800(lbs); 7.400
|
| 050. |
9301601120
|
[1] |
TUBE
|
1.5400(lbs); 0.700
|
| 060. |
3215027740
|
[1] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 070. |
3824011690
|
[1] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 080. |
6C04250130
|
[1] |
ASSY WHEEL RH
|
29.7000(lbs); 13.500
|
| 090. |
3750057920
|
[1] |
WHEEL
|
12.7600(lbs); 5.800
|
| 100. |
6752157330
|
[1] |
TIRE
|
16.2800(lbs); 7.400
|
| 110. |
9301601120
|
[1] |
TUBE
|
1.5400(lbs); 0.700
|
| 120. |
3215027740
|
[1] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 130. |
3824011690
|
[1] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 140. |
0401360120
|
[12] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 150. |
0451260120
|
[12] |
WASHER SPRING
|
0.0110(lbs); 0.005
|
| 160. |
0217650120
|
[12] |
NUT
|
0.0220(lbs); 0.010
|
