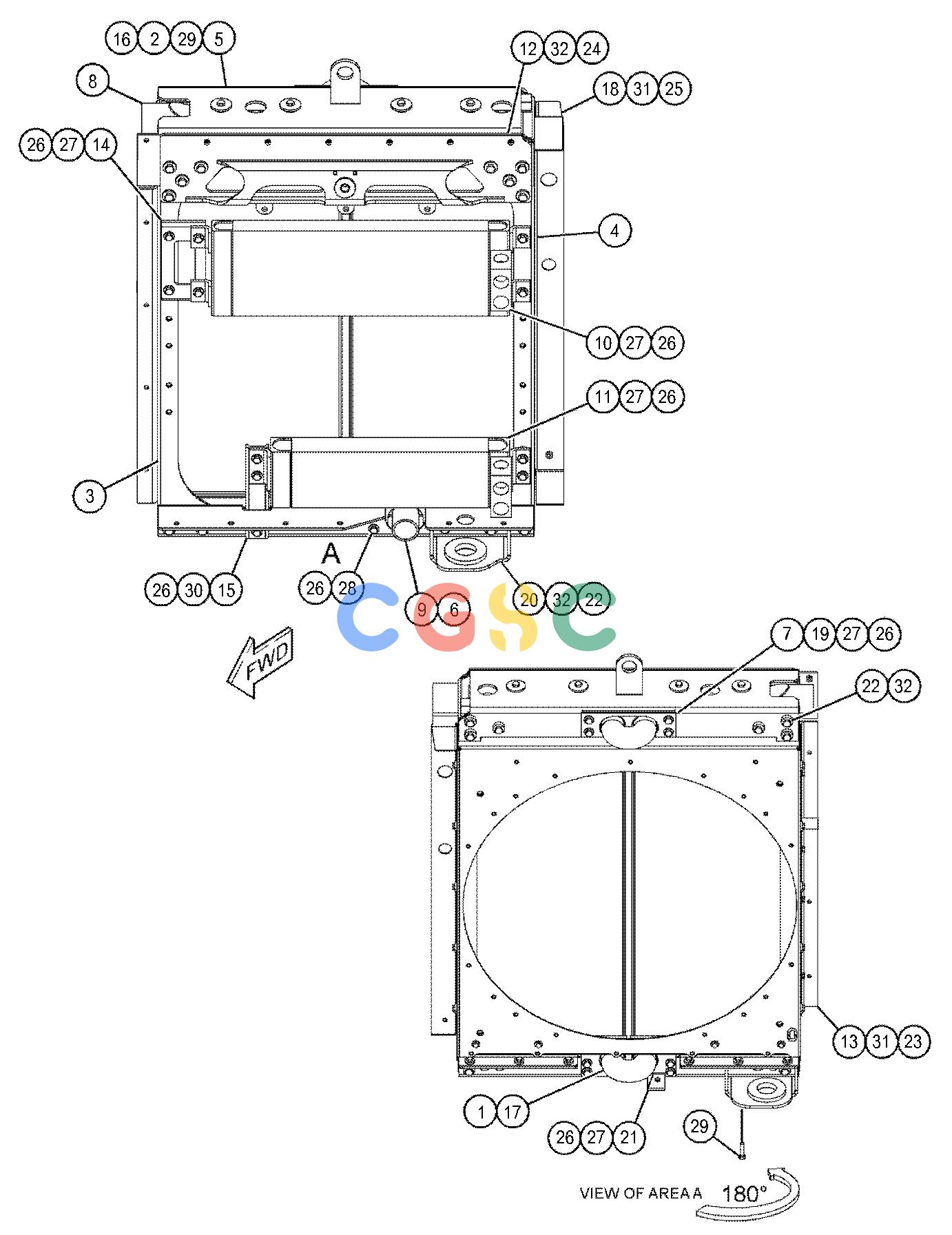

卡特零件查询（735） 504-0404: RADIATOR GP
广数供应链运营团队, 15 02月, 2025，浏览：
872 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5P-0597 | [8] | CLAMP-HOSE | |
| 2. | 9X-2306 | [8] | WASHER(11X50X5-MM THK) | |
| 3. | 475-6365 | [1] | FRAME AS(RH) | |
| 4. | 475-6366 | [1] | FRAME AS(LH) | |
| 5. | 475-6367 | [1] | FRAME AS-TOP | |
| 6. | 475-6370 | [1] | BRACKET AS | |
| 7. | 475-6371 | [1] | BRACKET-TOP | |
| 8. | 475-6372 | [1] | CORE AS-RADIATOR(INLET) | |
| 9. | 475-6373 | [1] | CORE AS-RADIATOR(OUTLET) | |
| 10. | 475-6374 | [1] | CORE AS-OIL COOLER | |
| 11. | 475-6376 | [1] | CORE AS-OIL COOLER | |
| 12. | 475-6378 | [1] | BRACKET AS | |
| 13. | 475-6379 | [1] | BRACKET AS | |
| 14. | 475-6381 | [1] | BRACKET AS | |
| 15. | 475-6382 | [1] | BRACKET AS | |
| 16. | 494-2983 | [8] | MOUNT AS | |
| 17. | 494-2985 | [2] | HOSE | |
| 18. | 504-0405 | [1] | SHROUD AS-RADIATOR | |
| | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| | 515-4680 | [1] | SHROUD AS-FAN | |
| | 515-4681 | [1] | BRACKET AS | |
| 19. | 504-0408 | [1] | SEAL AS | |
| 20. | 504-4063 | [1] | FRAME AS-BOTTOM | |
| 21. | 508-8425 | [1] | BRACKET AS | |
| 22. | 198-4778 | [20] | WASHER-HARD(13.5X30X12-MM THK) | |
| 23. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 24. | 7D-1649 | [8] | WASHER-HARD(13.5X32X5-MM THK) | |
| 25. | 7X-0613 | [16] | WASHER-HARD(8.8X25.5X5-MM THK) | |
| 26. | 7X-7729 | [24] | WASHER(11X25X3-MM THK) | |
| 27. | 8T-4136M | [18] | BOLT(M10X1.5X25-MM) | |
| 28. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 29. | 8T-4186M | [8] | BOLT(M10X1.5X40-MM) | |
| 30. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 31. | 8T-4908M | [20] | BOLT(M8X1.25X25-MM) | |
| 32. | 8T-4956M | [28] | BOLT(M12X1.75X35-MM) | |
| | M | | METRIC PART |
