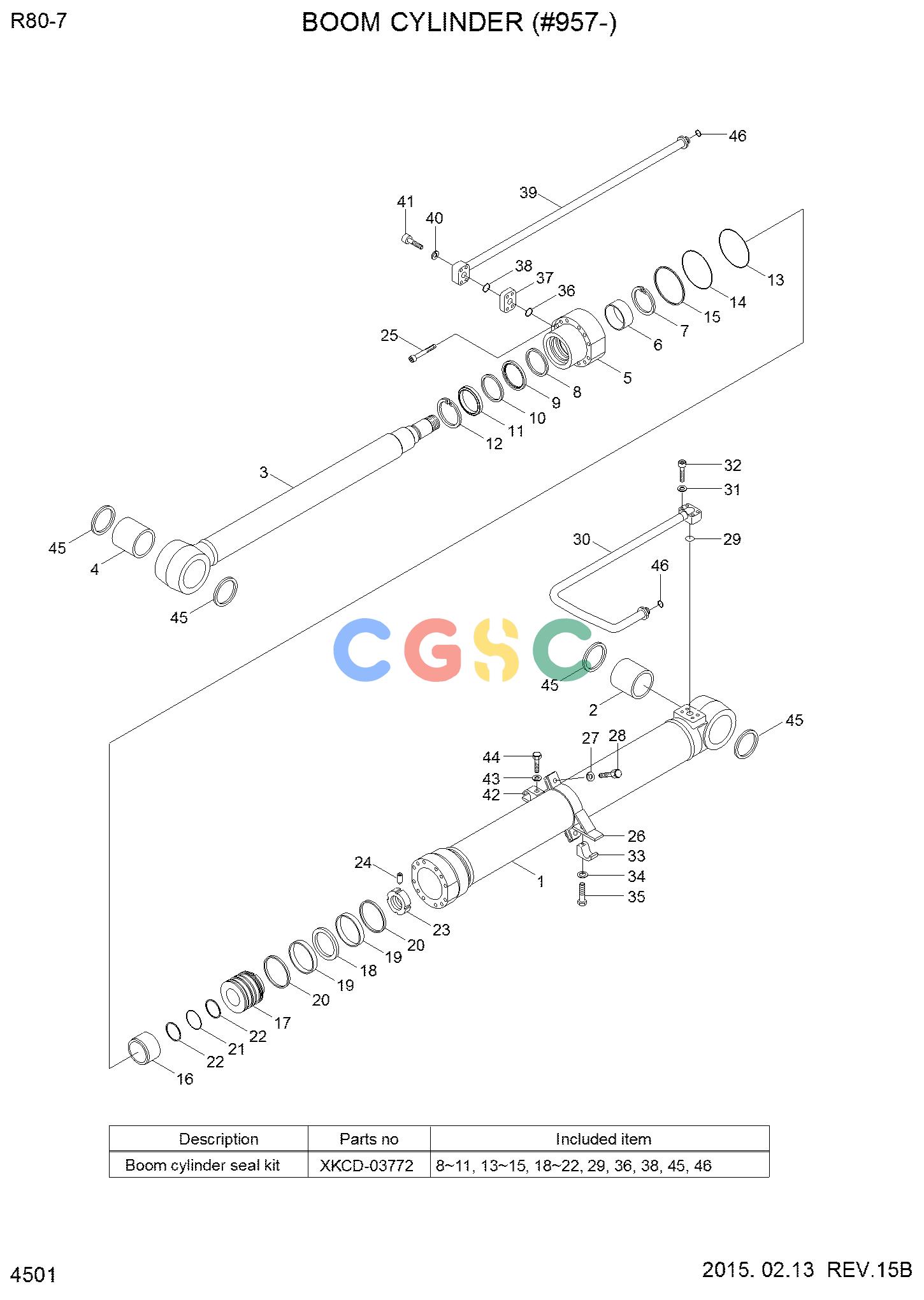

现代零件查询R80-7(INDIA) BOOM CYLINDER(# 957)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
700 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
31N1-51112
|
[1] |
BOOM CYLINDER ASSY
|
|
| 1. |
XKCD-03768
|
[1] |
TUBE ASSY
|
|
| 2. |
XKCD-03444
|
[1] |
PIN BUSH
|
|
| 3. |
XKCD-03443
|
[1] |
ROD ASSY
|
|
| 4. |
XKCD-03444
|
[1] |
PIN BUSH
|
|
| 5. |
XKCD-03769
|
[1] |
ROD COVER
|
|
| 6. |
XKCD-01596
|
[1] |
ROD BUSHING
|
|
| 7. |
XKCD-01009
|
[1] |
RING-RETAINING
|
|
| K8. |
XKCD-02553
|
[1] |
BUFFER SEAL
|
|
| K9. |
XKCD-03770
|
[1] |
U-PACKING
|
|
| K10. |
XKCD-03771
|
[1] |
BACK UP RING
|
|
| K11. |
XKCD-02420
|
[1] |
DUST WIPER
|
|
| K12. |
XKCD-01600
|
[1] |
RETAINING RING
|
|
| K13. |
XKCD-00555
|
[1] |
O-RING
|
|
| K14. |
XKCD-00556
|
[1] |
RING-BACK UP
|
|
| K15. |
XKCD-01601
|
[1] |
O-RING
|
|
| 16. |
XKCD-01602
|
[1] |
CUSHION RING
|
|
| 17. |
XKCD-01603
|
[1] |
PISTON
|
|
| K18. |
XKCD-01604
|
[1] |
PISTON SEAL
|
|
| K19. |
XKCD-01605
|
[2] |
WEAR RING
|
|
| K20. |
XKCD-01606
|
[2] |
RING-DUST
|
|
| K21. |
XKCD-01607
|
[1] |
O-RING
|
|
| K22. |
XKCD-01608
|
[2] |
BACK UP RING
|
|
| 23. |
XKCD-02276
|
[1] |
PISTON NUT
|
|
| 24. |
XKCD-02277
|
[1] |
SCREW-SET
|
|
| 25. |
XKCD-01610
|
[10] |
HEX SOCKET BOLT
|
|
| 26. |
XKCD-01611
|
[2] |
PIPE BAND ASSY
|
|
| 27. |
XKCD-00533
|
[2] |
WASHER-SPRING
|
|
| 28. |
XKCD-01478
|
[2] |
BOLT-HEX
|
|
| K29. |
XKCD-01479
|
[1] |
O-RING
|
|
| 30. |
XKCD-01612
|
[1] |
PIPE ASSY
|
|
| 31. |
XKCD-00989
|
[4] |
WASHER-SPRING
|
|
| 32. |
XKCD-01589
|
[4] |
BOLT-SOCKET
|
|
| 33. |
XKCD-01482
|
[1] |
CLAMP
|
|
| 34. |
XKCD-00533
|
[1] |
WASHER-SPRING
|
|
| 35. |
XKCD-01478
|
[1] |
BOLT-HEX
|
|
| K36. |
XKCD-01479
|
[1] |
O-RING
|
|
| 37. |
XKCD-01584
|
[1] |
SPACER
|
|
| K38. |
XKCD-01479
|
[1] |
O-RING
|
|
| 39. |
XKCD-01615
|
[1] |
PIPE ASSY
|
|
| 40. |
XKCD-00989
|
[4] |
WASHER-SPRING
|
|
| 41. |
XKCD-01586
|
[4] |
HEX SOCKET BOLT
|
|
| 42. |
XKCD-01482
|
[1] |
CLAMP
|
|
| 43. |
XKCD-00533
|
[1] |
WASHER-SPRING
|
|
| 44. |
XKCD-01614
|
[1] |
BOLT-HEX
|
|
| K45. |
XKCD-01213
|
[1] |
WIPER-PIN
|
|
| K46. |
XKCD-00993
|
[1] |
O-RING
|
|
| K. |
XKCD-03772
|
[AR] |
SEAL KIT
|
|
