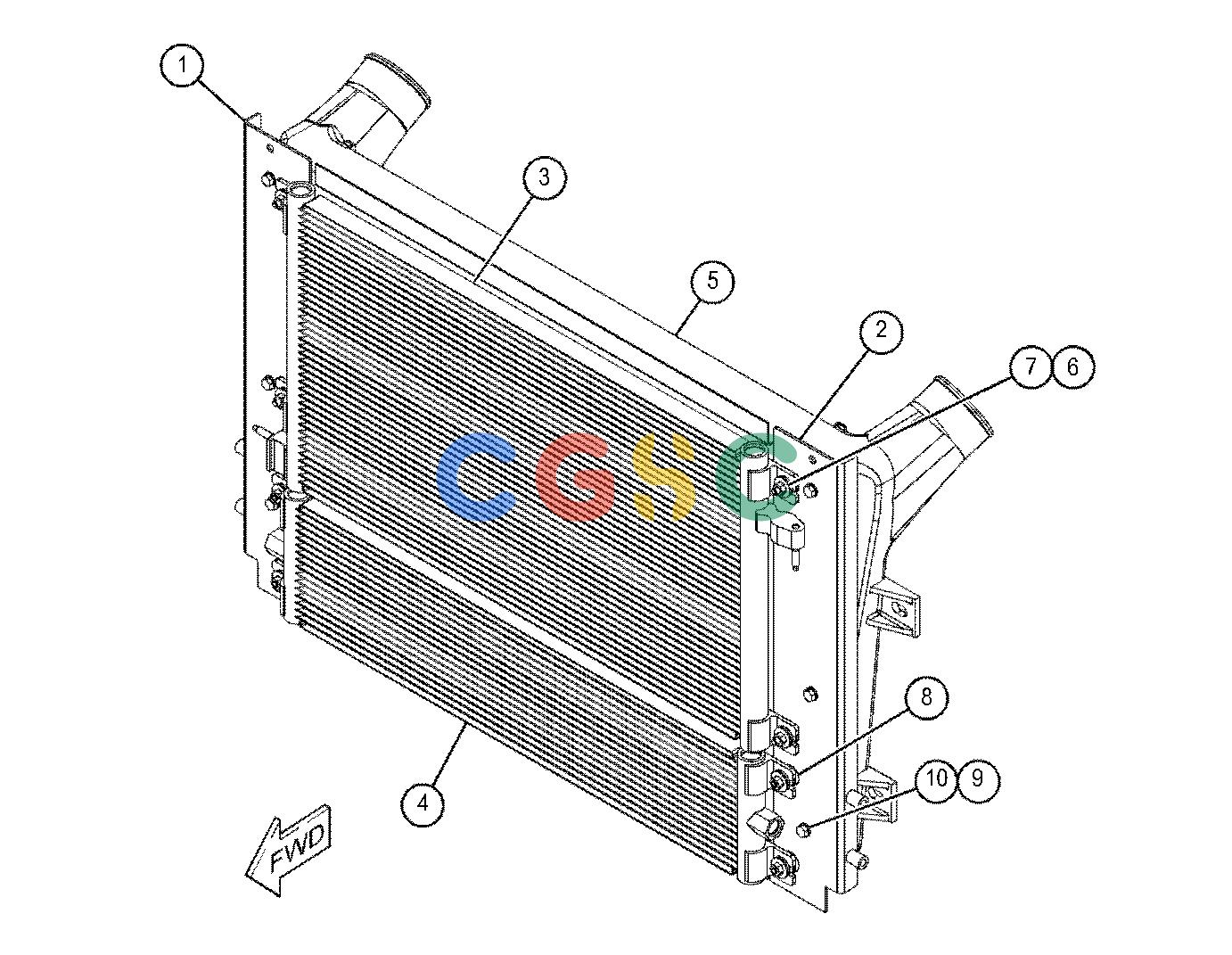

卡特零件查询（735） 515-4679: AFTERCOOLER GP-AIR
广数供应链运营团队, 15 02月, 2025，浏览：
822 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 475-6356 | [1] | FRAME AS(RH) | |
| 2. | 475-6357 | [1] | FRAME AS(LH) | |
| 3. | 475-6360 | [1] | CORE AS-CONDENSER | |
| 4. | 475-6361 | [1] | CORE AS-FUEL COOLER | |
| | | | (EACH CORE AS INCLUDES) |
| | 484-5529 | [4] | MOUNT AS | |
| 5. | 515-4678 | [1] | CORE AS-AFTERCOOLER | |
| 6. | 344-5674M | [8] | NUT(M8X1.25-THD) | |
| 7. | 7X-0579 | [8] | WASHER-HARD(8.8X25.5X2-MM THK) | |
| 8. | 7X-0613 | [4] | WASHER-HARD(8.8X25.5X5-MM THK) | |
| 9. | 8T-4189M | [6] | BOLT(M8X1.25X20-MM) | |
| 10. | 8T-4224 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
