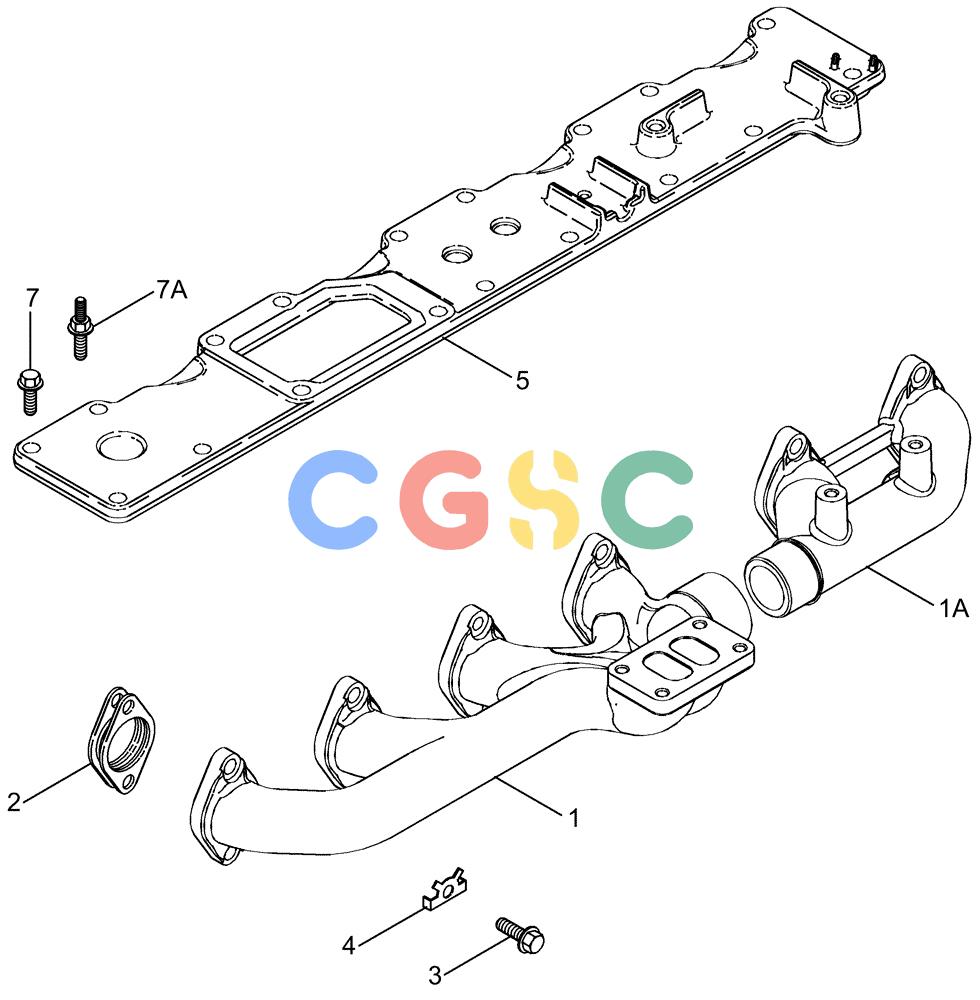

凯斯零件查询(FLX3020) - FLOATER (6/06-1/12) (02-03) - MANIFOLDS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
303 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87344862
|
[1] |
EXHAUST MANIFOLD
|
CAS
|
| 1A. |
87344861
|
[1] |
EXHAUST MANIFOLD
|
CAS
|
| 2. |
J937479
|
[6] |
MANIFOLD GASKET
|
CAS
Superseded by part number: 84368103
|
| 3. |
J944593
|
[12] |
BOLT
|
CAS
10x70 mm Superseded by part number: 504085705
|
| 4. |
J945252
|
[12] |
SPACER
|
CAS
|
| 5. |
87340282
|
[1] |
COVER
|
CAS
Intake
|
| 7. |
845-8030
|
[13] |
BOLT,Hvy Hex, M8 x 30mm, Cl 8.8
|
CAS
|
| 7A. |
87340279
|
[1] |
SCREW,Hex Flg, M8 x 1.25 x 35mm
|
CAS
M8 x 35
|
