REF
|
[1] |
INSTRUCTION
|
NH
Engine, Service, Tier 3
|
| 1. |
87336996
|
[1] |

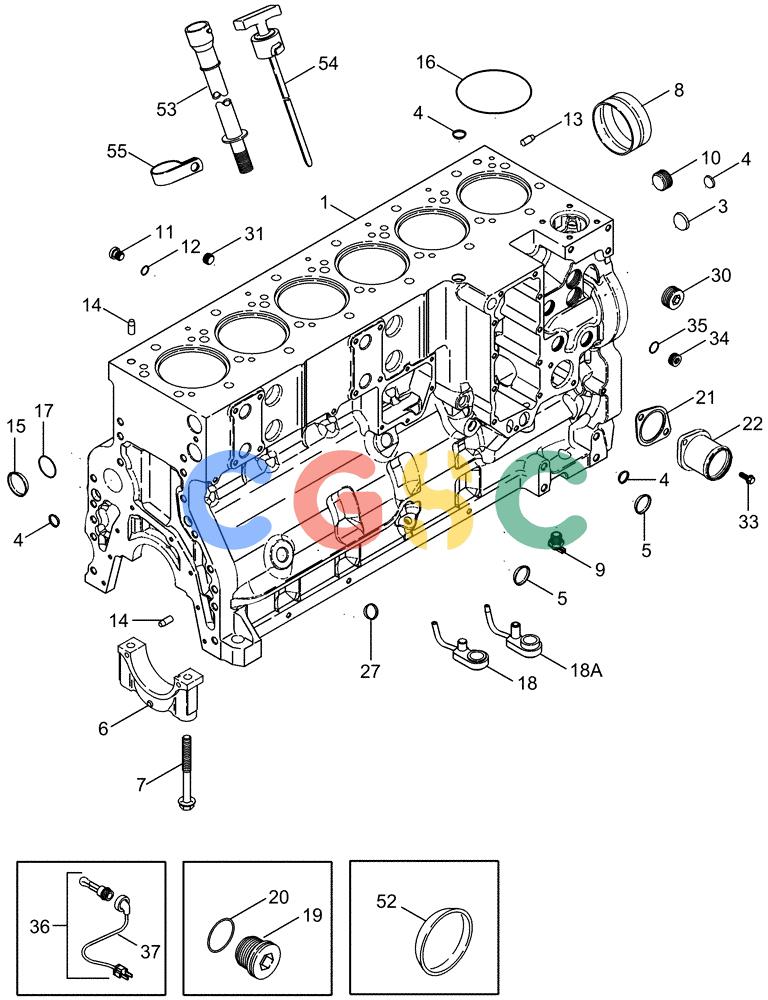

CYLINDER BLOCK
|
CAS
Stripped, Inc. 1 - 8 Superseded by part number: 84339647
|
| 3. |
A77586
|
[3] |
PLUG
|
IH
28.9 mm
|
| 4. |
A77506
|
[4] |
PLUG
|
IH
21 mm
|
| 5. |
J905401
|
[4] |
PLUG
|
IH
35 mm
|
| 6. |
87444056
|
[7] |
BEARING CAP,159 mm OD x 34 mm
|
CAS
Main Bearing
|
| 7. |
87444059
|
[14] |
BOLT
|
CAS
M14 x 128
|
| 8. |
J945329
|
[7] |
CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L
|
CAS
|
| . . |
87338079
|
[1] |
KIT
|
CAS
Inc. 9 - 20
|
| 9. |
217-103
|
[2] |
COCK, DRAIN
|
CAS
1/4 PT Superseded by part number: 86625234
|
| 10. |
86625135
|
[1] |
PLUG,1" - 11-1/2 NPT
|
RAC
|
| 11. |
J678923
|
[6] |
PLUG,M10 x 1
|
CAS
10 mm, Inc. 12
|
| 12. |
637-72081
|
[1] |
O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro
|
CAS
Superseded by part number: 86625087
|
| 13. |
J900257
|
[4] |
PIN,10.01mm OD x 16mm L
|
CAS
10 mm x 16 mm long Superseded by part number: J900257AM
|
| 14. |
J901846
|
[8] |
PIN,12.01mm OD x 24mm L
|
IH
Superseded by part number: J901846AM
|
| 15. |
41-3044
|
[2] |
PLUG,Exp, 2 3/4"
|
CAS
(70 mm) Superseded by part number: 86637927
|
| 16. |
J907177
|
[6] |
SEAL,118mm ID x 122.32mm OD x 4mm Thk
|
IH
|
| 17. |
J926048
|
[2] |
O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro
|
CAS
Superseded by part number: J926048AM
|
| 18. |
87338171
|
[6] |
NOZZLE
|
CAS
Superseded by part number: 84351524
|
| 18A. |
87337015
|
[6] |
NOZZLE
|
CAS
Superseded by part number: 87673839
|
| 19. |
J678921
|
[1] |
PLUG
|
CAS
14 mm, Inc. 20
|
| 20. |
J678912
|
[1] |
O-RING,2.2mm Thk x 11.3mm ID
|
CAS
|
| 21. |
J945603
|
[1] |
GASKET,1.65mm Thk
|
CAS
Water Inlet
|
| 22. |
J913030
|
[1] |
FITTING
|
CAS
Water Inlet
|
| 27. |
A77530
|
[4] |
PLUG
|
IH
1-13/64 OD Superseded by part number: J920443
|
| 30. |
263136
|
[5] |
MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF
|
NH
PLUG, MAGNETIC
|
| 31. |
217-438
|
[6] |
PLUG,Hex Soc, 1/2" - 14 NPTF
|
CAS
Superseded by part number: 87034671
|
| 33. |
845-8020
|
[2] |
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
|
CAS
|
| 34. |
313244A1
|
[2] |
PLUG
|
CAS
Hex Socket, 22 mm, Inc. 35
|
| 35. |
313246A1
|
[1] |
O-RING,2.2mm Thk x 19.3mm ID
|
CAS
19 ID x 2,2 mm
|
| 36. |
310493A1
|
[1] |
KIT
|
CAS
Engine Block Heater, 120 Volt, Inc. 37
|
| 37. |
196466A1
|
[1] |
ELECTRIC CABLE
|
CAS
1829 mm (72 in) Superseded by part number: 87105748
|
| 41. |
J900956
|
[3] |
PLUG
|
CAS
(Not Shown)
|
| 42. |
87338185
|
[1] |
BOLT
|
CAS
(Not Shown)
|
| 44. |
87337018
|
[6] |
BOLT
|
CAS
(Not Shown)
|
| 50. |
J909025
|
[6] |
FLANGE BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9
|
CAS
(Not Shown)
|
| 51. |
J943670
|
[1] |
FITTING
|
CAS
(Not Shown)
|
| 52. |
J943808
|
[1] |
PLUG
|
CAS
Superseded by part number: J943808AM
|
| 53. |
87418224
|
[1] |
TUBE,13.29mm L
|
BRR
|
| 54. |
87418248
|
[1] |
DIPSTICK
|
BRR
|
| 55. |
A77508
|
[1] |
CLAMP
|
CAS
|
