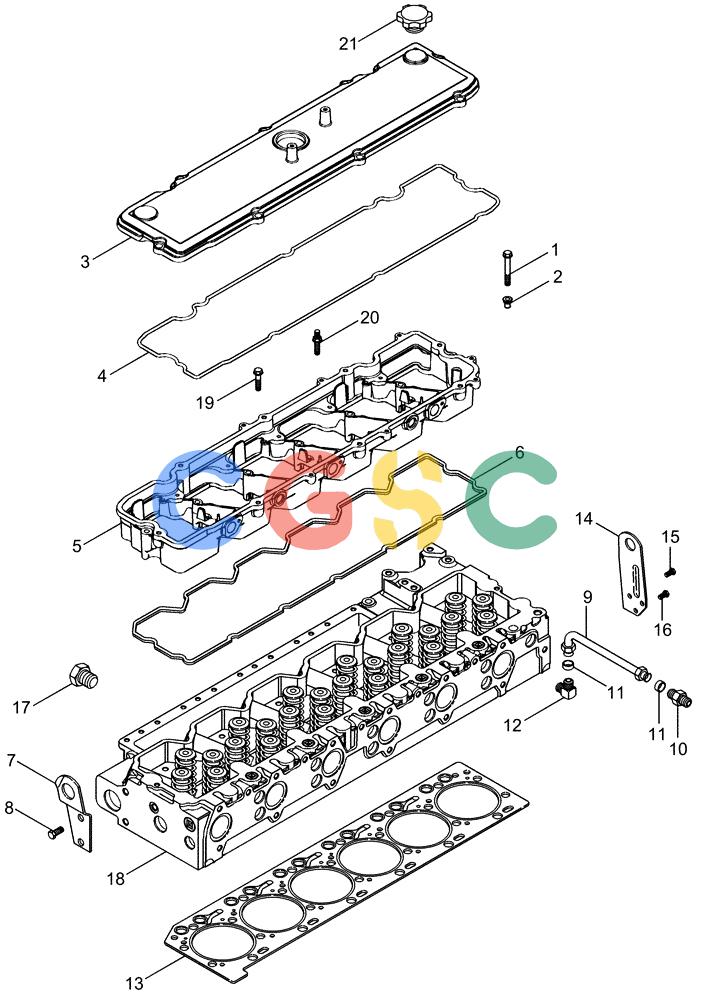

凯斯零件查询(FLX3020) - FLOATER (6/06-1/12) (02-07) - CYLINDER HEAD AND COVER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
199 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
845-8035
|
[7] |
BOLT,Hvy Hex, M8 x 35mm, Cl 8.8
|
CAS
Superseded by part number: 86624966
|
| 2. |
87342136
|
[8] |
ISOLATOR
|
CAS
|
| 3. |
87345871
|
[1] |
VALVE COVER
|
CAS
|
| 4. |
87345861
|
[1] |
GASKET,3.2mm Thk
|
CAS
|
| 5. |
87344767
|
[1] |
HOUSING
|
CAS
Rocker Superseded by part number: 84282765
|
| 6. |
87344755
|
[1] |
GASKET
|
CAS
Rocker Lever Housing Superseded by part number: 84585545
|
| 7. |
87340305
|
[1] |
LIFTING EYE
|
CAS
Front
|
| 8. |
844-12025
|
[2] |
BOLT,Hvy Hex, M12 x 25mm, Cl 8.8
|
CAS
Superseded by part number: 9804266
|
| 9. |
J924589
|
[1] |
TUBE,6.35 mm OD x 112.6 mm L
|
CAS
Inc. 18
|
| 10. |
87026319
|
[1] |
HYD CONNECTOR,1/2"-24 x 1/8" NPTF w/Nut
|
RAC
1/4 tube OD x 1/8
|
| 11. |
222-153
|
[2] |
SLEEVE,1/4" Tube
|
CAS
Superseded by part number: 87017025
|
| 12. |
87026320
|
[1] |
ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF
|
RAC
1/4 tube OD x 1/8 PT
|
| 13. |
87344132
|
[1] |
CYLINDER HEAD GASKET
|
CAS
Standard Superseded by part number: 87737237
|
| 14. |
87340301
|
[1] |
LIFTING EYE
|
CAS
Rear Superseded by part number: 84427557
|
| 15. |
854-10020
|
[2] |
BOLT,Hvy Hex, M10 x 20mm, Cl 10.9
|
CAS
Superseded by part number: 87015870
|
| 16. |
87340324
|
[1] |
BOLT
|
CAS
|
| 17. |
J906619
|
[1] |
PLUG,1/8" - 27
|
CAS
pipe, 1/8-27 hex socket
|
| 18. |
87397977
|
[1] |
KNIFE HEAD
|
CUR
HEAD ASSY With Valves Superseded by part number: 84283167R
|
| 19. |
845-8075
|
[7] |
BOLT,Hvy Hex, M8 x 75mm, Cl 8.8
|
BN
|
| 20. |
87340279
|
[1] |
SCREW,Hex Flg, M8 x 1.25 x 35mm
|
CAS
M8 x 35
|
| 21. |
87429619
|
[1] |
FILLER CAP
|
CAS
Superseded by part number: 84338002
|
