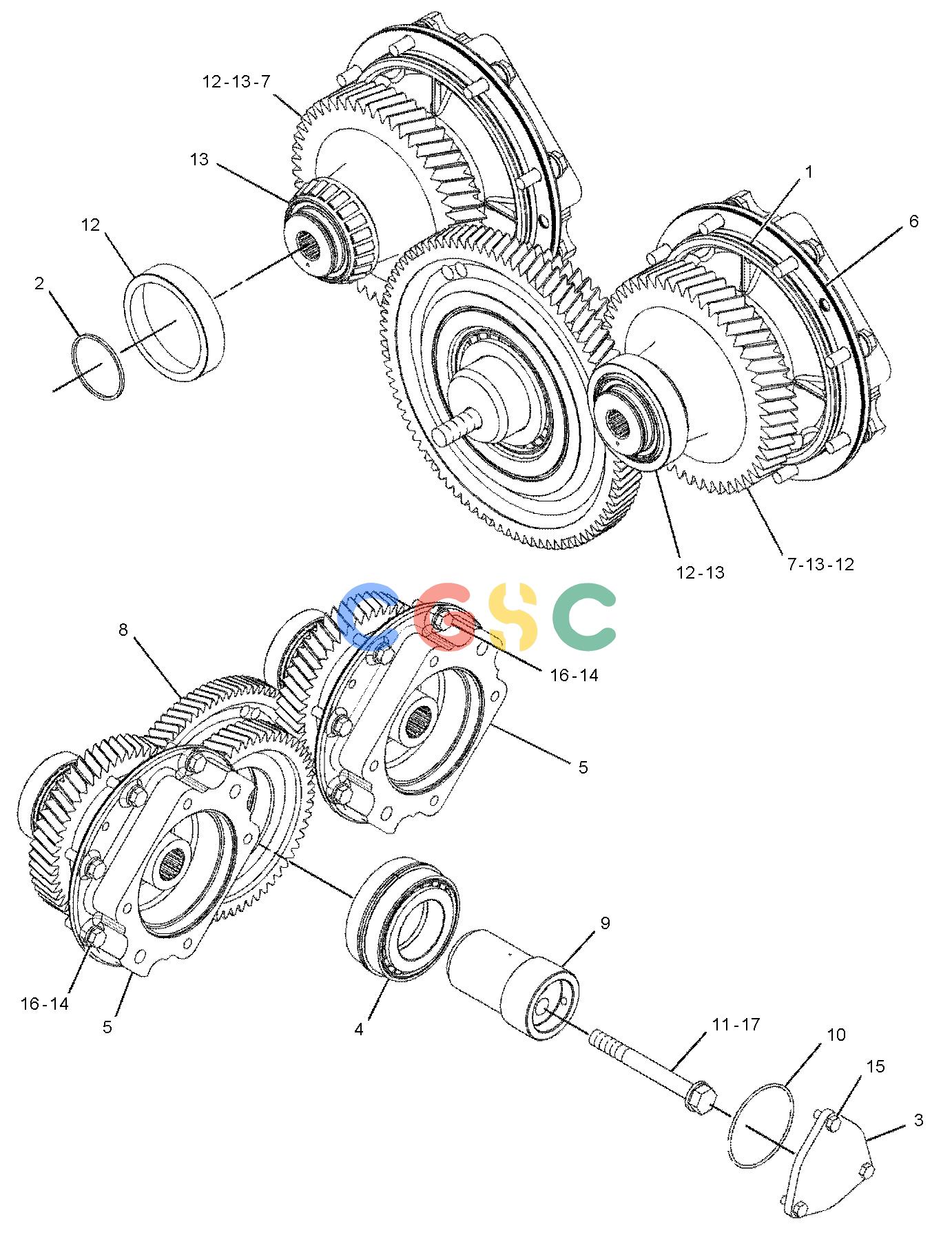

卡特零件查询（735） 299-2467: DRIVE GP-PUMP
广数供应链运营团队, 15 02月, 2025，浏览：
302 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2K-2939 | [2] | SEAL-O-RING | |
| 2. | 7S-3036 | [2] | RING-SEAL | |
| 3. | 9W-1454 | [1] | COVER | |
| 4. | 102-4232 | [1] | BEARING AS-ROLLER | |
| 5. | 138-3114 | [2] | ADAPTER-PUMP | |
| 6. | 140-7544B | [2] | SHIM PACK(INCLUDES 12-SHIMS) | |
| 7. | 299-2499 | [2] | GEAR-PUMP DRIVE(51-TEETH) | |
| 8. | 299-2498 | [1] | GEAR-IDLER(89/56-TEETH) | |
| 9. | 342-6341 | [1] | SHAFT-IDLER | |
| 10. | 6V-3551 | [1] | SEAL-O-RING | |
| 11. | 6V-7675M | [1] | BOLT(M16X2X140-MM) | |
| 12. | 7K-5448 | [4] | CUP-BEARING | |
| 13. | 7K-5449 | [4] | CONE-BEARING | |
| 14. | 8T-4121 | [16] | WASHER-HARD(11X21X2.5-MM THK) | |
| 15. | 8T-4189M | [3] | BOLT(M8X1.25X20-MM) | |
| 16. | 8T-4196M | [16] | BOLT(M10X1.5X35-MM) | |
| 17. | 9X-8268 | [1] | WASHER(17.5X30X3.5-MM THK) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
