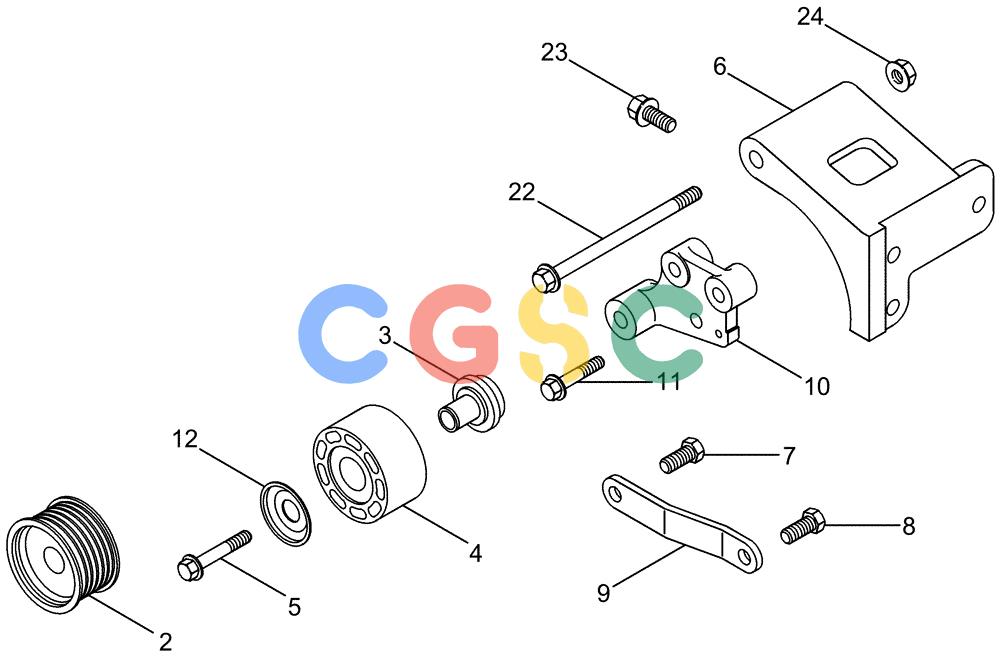

凯斯零件查询(FLX3020) - FLOATER (6/06-1/12) (04-03) - ALTERNATOR - MOUNTING Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
493 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
J965146
|
[1] |
PULLEY
|
|
| 3. |
J935229
|
[1] |
SHAFT
|
CAS
Idler
|
| 4. |
87531752
|
[1] |
PULLEY
|
BN
idler Superseded by part number: 87840244
|
| 5. |
87531758
|
[1] |
BOLT
|
BN
|
| 6. |
J944405
|
[1] |
SUPPORT
|
CAS
Alternator
|
| 7. |
326-816
|
[1] |
BOLT,Hex, 1/2" - 13 x 1", Gr 8
|
CAS
|
| 8. |
854-10030
|
[1] |
BOLT,Hvy Hex, M10 x 30mm, Cl 10.9
|
CAS
Superseded by part number: 87778358
|
| 9. |
J944407
|
[1] |
BRACE
|
CAS
|
| 10. |
87531751
|
[1] |
SUPPORT
|
BN
idler pulley
|
| 11. |
87531764
|
[3] |
BOLT
|
BN
|
| 12. |
87531753
|
[1] |
SHIELD
|
BN
dust
|
| 22. |
844-12150
|
[1] |
BOLT,Hvy Hex, M12 x 150mm, Cl 8.8
|
CAS
Superseded by part number: 86639267
|
| 23. |
844-10030
|
[3] |
BOLT,Hvy Hex, M10 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 9840672
|
| 24. |
825-2412
|
[1] |
FLANGE NUT,M12 x 1.75, Flg, Cl 8
|
CAS
|
