神钢零件查询(SK130) - EXCAVATOR BTW LPU1001 - LPU2000 (1/98-12/98) (12-032) - VALVE ASSY PILOT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
804 次

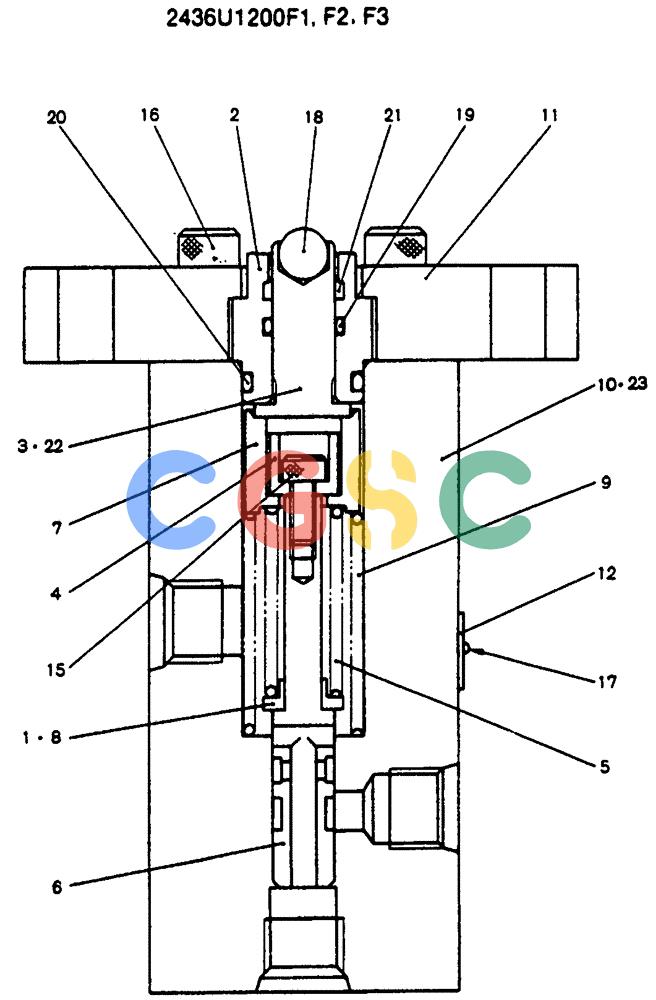

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1200F1 | [1] | VALVE, PILOT | VALVE, PILOT |
| . . | 2436U1200F2 | [1] | PILOT VALVE | KOB |
| . . | 2436U1200F3 | [1] | PILOT VALVE | KOB |
| 1. | 2436U1142S13 | [2] | SHIM | KOB |
| 2. | 2436U1142S2 | [1] | SOCKET | KOB |
| 3. | 2436U1200S3 | [1] | PLUNGER | KOB |
| 4. | 2436U1142S4 | [1] | STOP | KOB |
| 5. | 2436U1142S5 | [1] | SPRING | KOB |
| 6. | 2436U1200S6 | [1] | SPOOL | KOB |
| 7. | 2436U1142S10 | [1] | SLEEVE | KOB |
| 8. | 2436U1142S11 | [1] | HOLDER | KOB |
| 9. | 2436U1488S26 | [1] | SPRING | KOB |
| 10. | 2436U1200S10 | [1] | HOUSING (FOR F3 ONLY) | |
| 11. | 2436U1200S11 | [1] | COVER | KOB |
| 12. | NSS | [1] | NOT SOLD SEPARAT | CONNAME PLATE |
| 15. | 2436U1487S29 | [1] | SCREW | KOB Superseded by part number: ZS23C04008 |
| 16. | ZS23C06025 | [4] | SCREW,Hex Socket Head, M6 x 25mm | KOBM06x1.0x25mm |
| 17. | 2436U1200S17 | [2] | SCREW | |
| 18. | 2436U1487S37 | [1] | BALL | KOB |
| 19. | ZD11P01000 | [1] | O-RING | KOBID 9.8 ± 0.17 x OD 13.6mm |
| 20. | ZD11P01600 | [1] | O-RING | KOBID 15.80 ± 0.20 x OD 20.6mm |
| 21. | 2436U1142S25 | [1] | SCRAPER | KOB |
| 22. | 2436U1200S22 | [1] | PLUNGER | KOB(FOR F2,F3 ONLY) |
| 23. | 2436U1200S23 | [1] | HOUSING (FOR F1, F2 ONLY) | |
| . . | 2436U1142R100 | [1] | REPAIR KIT | KOBCONSISTS OF REF 3,18 (FOR F1 ONLY) |
| . . | 2436U1200R100 | [1] | REPAIR KIT | KOBREPAIR KIT, CONSISTS OF REF 6,10 (FOR F3 ONLY) |
| . . | 2436U1200R110 | [1] | PUSH ROD | KOBREPAIR KIT, CONSISTS OF REF 18,22(FOR F2,F3 ONLY) |
