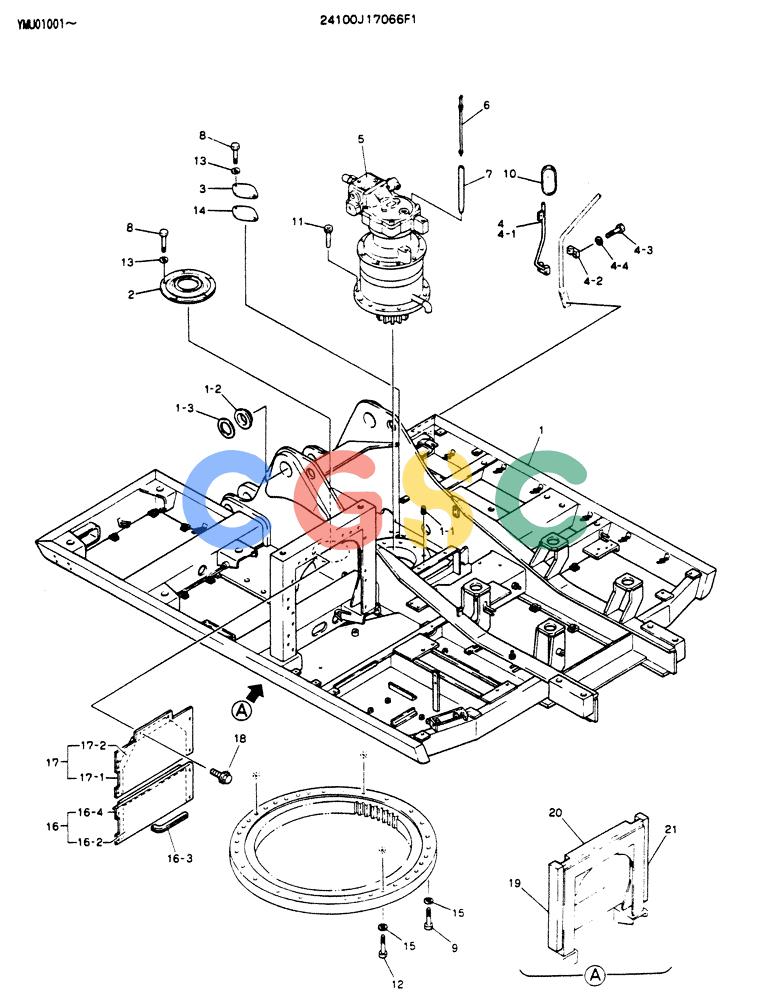

神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (01-001) - UPPER FRAME ASSEMBLY, P/N 24100J17064F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
617 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J17064F1 | [1] | FRAME ASSY, UPP | |
| 1. | LP52FU0003D1 | [1] | FRAME, UPP | FRAME, UPP |
| 1-1. | 2405T1072 | [2] | BUSHING | KOB |
| 1-2. | 2414T2729 | [1] | COVER | KOB |
| 1-3. | ZS83C20020 | [2] | SCREW | KOBSet -- M20x2.50x20mm |
| 2. | 2445T290 | [1] | SEAL | KOB Superseded by part number: YN52F01161P1 |
| 3. | 2418T12125 | [1] | PLATE | KOB Superseded by part number: YN52F01159P1 |
| 4. | 24100P3750F1 | [1] | STAY | KOBSTAY ASSY |
| 4-1. | 2416P18523 | [1] | STAY | KOBSTAY |
| 4-2. | 2432T4113D2 | [1] | CLAMP | KOB |
| 4-3. | ZS18C08040 | [2] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm |
| 4-4. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 5. | 24100J11722F5 | [1] | HYDRAULIC MOTOR | KOB |
| 5-3. | 2420T7118 | [9] | SCREW,M12 x 130mm | KOB |
| 5-4. | 2420T6698D3 | [1] | RIGID TUBE | KOB |
| 5-5. | ZE82T12000 | [1] | PLUG | KOB3/4" PT |
| 5-6. | ZG31U12000 | [1] | ELBOW | KOB90° |
| 5-8. | 24100J11681F3 | [1] | GEAR REDUCTION UNIT | KOBREF: 01-005 |
| 5-10. | 2441U963F2 | [1] | HYDRAULIC MOTOR | KOB |
| 5-10B. | 2436U2716F1 | [1] | CONTROL VALVE | KOBASSY |
| 5-10C. | 2441U962F2 | [1] | HYDRAULIC MOTOR | KOBASSY Superseded by part number: 2441U963F2 |
| 6. | 2420R561D1 | [1] | DIPSTICK | KOB |
| 7. | 2420P1519D1 | [1] | PIPE | KOB |
| 8. | ZS13C10025 | [7] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 9. | ZS13C16080 | [25] | CAPSCREW | KOBSCREW M16x2.0x80mm |
| 10. | 2456R351 | [1] | MIRROR | KOB |
| 11. | ZS23C20055 | [10] | SCREW,Hex Socket Head, M20 x 55mm | KOBM20x2.5x55mm |
| 12. | 2420T4561D1 | [3] | BOLT | KOBReamer -- M16x2.0x80mm |
| 13. | ZW13H10000 | [7] | WASHER | KOBID 11 x OD 24 x Th 3.2mm Superseded by part number: ZW16H10000 |
| 14. | 2416Z434 | [1] | PACKING | KOBRubber |
| 15. | 2414T4850F2 | [1] | COVER ASSY | KOB |
| 15-2. | 2427Z1344 | [1] | FOAM INSULATION | KOB |
| 15-3. | 2416Z263D2 | [1] | FOAM INSULATION | KOBSHEET, RUBBER |
| 15-4. | 2414P8769 | [1] | COVER | |
| 16. | 2414T4703F1 | [1] | COVER | KOB |
| 16-1. | 2414P7583 | [1] | COVER | |
| 16-2. | 2427Z1343 | [1] | FOAM INSULATION | KOB |
| 17. | 2420T6786 | [10] | BOLT,M12 x 1.75 x 25mm | KOBM12x1.75x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12025 |
| 18. | 2479Z2407 | [1] | INSULATOR | KOB |
| 19. | 2479Z2216 | [1] | INSULATOR | KOB |
| 20. | 2479Z2218 | [1] | INSULATOR | KOB |
