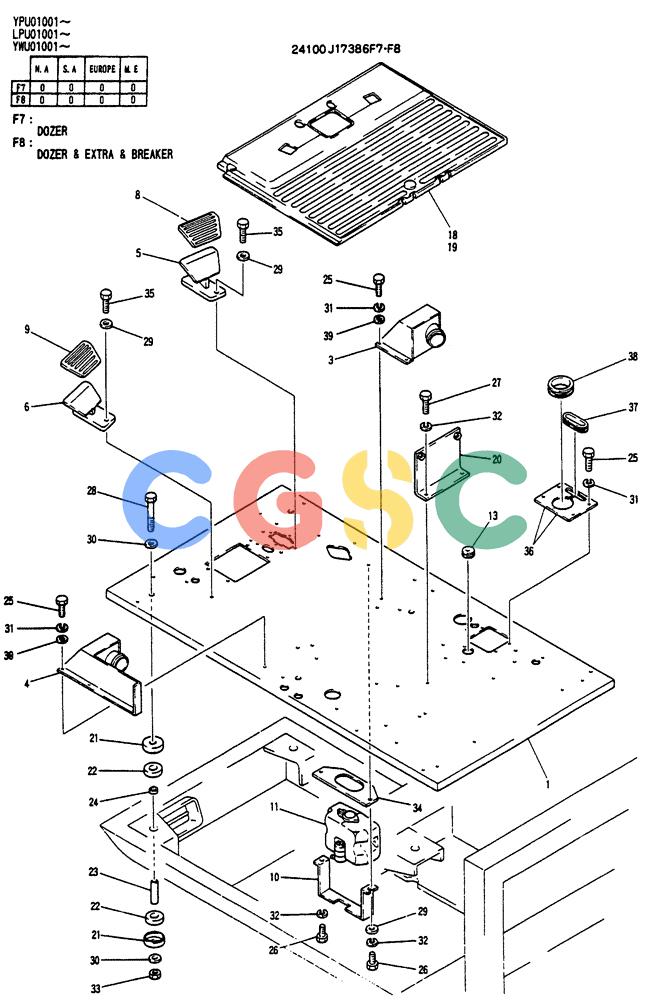

神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (02-008) - FLOOR PLATE ASSEMBLY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
874 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J17386F7 | [1] | PLATE ASSY, FLOOR (DOZER) | |
| . . | 24100J17386F8 | [1] | PLATE ASSY, FLOOR (DOZER & EXTRA & BREAKER) | |
| 1. | 2427J3434 | [1] | PLATE | KOB |
| 3. | 2414N5570 | [1] | COVER | KOB |
| 4. | 2414N5569 | [1] | COVER | KOB |
| 5. | YN03M01200P1 | [1] | COVER | KOB(F7 ONLY) |
| 6. | YN03M01201P1 | [1] | COVER | KOB |
| 8. | YN03M01219P1 | [1] | SUPPORT | KOB(F7 ONLY) Superseded by part number: YT03M01113P1 |
| 9. | YN03M01217P1 | [1] | SUPPORT | KOB Superseded by part number: YT03M01112P1 |
| 10. | 2416T27504 | [1] | SUPPORT | KOB Superseded by part number: YE03M01045P1 |
| 11. | 2427U900 | [1] | TANK | KOBWASHER |
| 13. | 2420Z1330 | [1] | GROMMET | KOB |
| 18. | 2427U1548 | [1] | FLOOR MAT | KOB(F7 ONLY) |
| 19. | 2427U1549 | [1] | MAT,FLOOR (F8 ONLY) | |
| 20. | 2418P30935 | [1] | PLATE | KOB |
| 21. | 2414T2855 | [8] | COVER | KOB |
| 22. | 2416Z539 | [8] | RUBBER SLEEVE | KOBCUSHION |
| 23. | 2418T9226D7 | [4] | SPACER | KOB |
| 24. | 2418Z740 | [4] | RUBBER RING | KOB |
| 25. | ZS18C08020 | [13] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 26. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 27. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 28. | ZS18C16100 | [4] | SCREW,Hex, M16 x 100mm | KOBM16x2.0x100mm |
| 29. | ZW16X10000 | [5] | WASHER | KOBID 10 x OD 21 x Th 2.0mm, (F7 Only) |
| . . | ZW16X10000 | [3] | WASHER | KOBID 10 x OD 21 x Th 2.0mm, (F8 Only) |
| 30. | ZW16H16000 | [8] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 31. | ZW26X08000 | [13] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 32. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 33. | ZN18C16013 | [4] | NUT | KOBM16x2.0mm |
| 34. | 2479Z1919 | [1] | INSULATOR | KOB |
| 35. | ZS18C10035 | [4] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm, (F7 Only) |
| . . | ZS18C10035 | [2] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm, (F8 Only) |
| 36. | 2414T5568 | [2] | COVER | COVER |
| 37. | 2420Z2225 | [1] | GROMMET | KOB |
| 38. | 2420Z2230 | [1] | GROMMET | KOB |
| 39. | ZW16X08000 | [9] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
