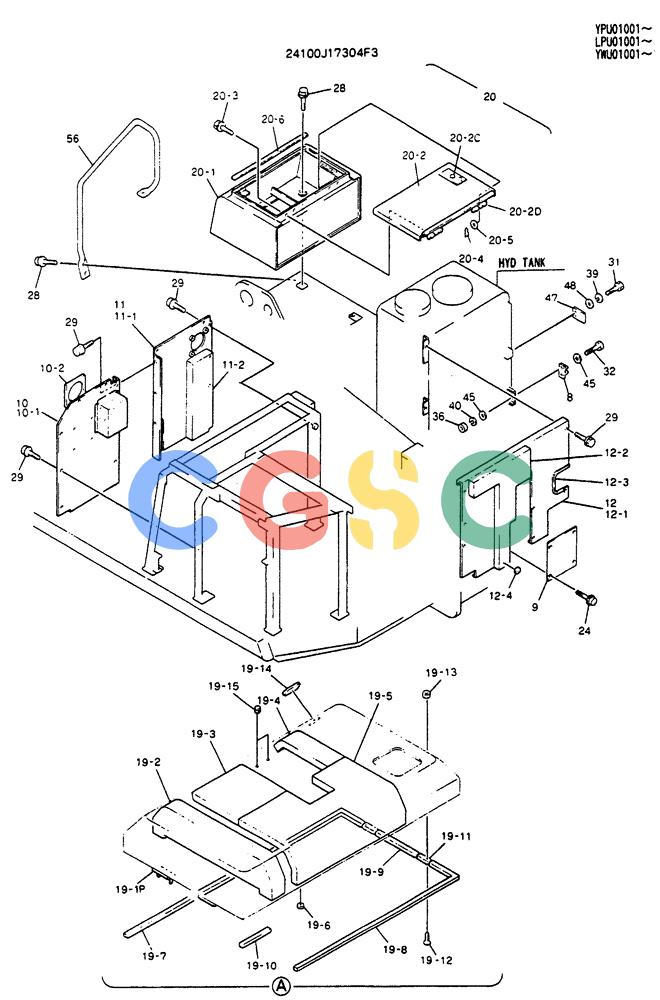

| . . | 24100J17304F3 | [1] | GUARD ASSY | |
| 1. | LP21CU1030P1 | [1] | BRACKET | KOB |
| 2. | LP21CU1031P1 | [1] | BRACKET | KOB |
| 3. | LP21CU1032P1 | [1] | BRACKET | BRACKET |
| 4. | LP21CU1034P1 | [1] | PLATE | KOB |
| 5. | LP21CU1057F1 | [1] | BRACKET ASSY | |
| 5-1. | LP21CU1056P1 | [1] | BRACKET | BRACKET |
| 5-2. | 2416Z1161D1 | [1] | CUSHION | KOB |
| 6. | LP21CU1035P1 | [1] | BRACKET | KOB |
| 7. | 2416P19811 | [4] | U-BRACKET | KOB |
| 8. | 2416Z620 | [2] | U-BRACKET | KOB |
| 9. | LP21CU1036P1 | [1] | COVER | COVER |
| 10. | LP21CU1037F1 | [1] | GUARD ASSY | GUARD ASSY |
| 10-1. | LP21CU1038P1 | [1] | GUARD | GUARD |
| 10-2. | 2479T1890 | [1] | INSULATOR | KOB |
| 11. | LP21CU1039F1 | [1] | GUARD ASSY | |
| 11-1. | LP21CU1040P1 | [1] | GUARD | |
| 11-2. | 2479Z1931 | [1] | INSULATOR | KOB |
| 12. | LP21CU1041F1 | [1] | GUARD ASSY | GUARD ASSY |
| 12-1. | LP21CU1042P1 | [1] | GUARD | GUARD |
| 12-2. | 2427Z1928 | [1] | FOAM INSULATION | KOB |
| 12-3. | 2427Z1594D030 | [1] | SOFT TRIM | KOB |
| 12-4. | 2418T8864 | [7] | WASHER | KOB |
| 13. | LP21CU1043P1 | [1] | GUARD | KOB |
| 15. | LP21CU1045P1 | [1] | GUARD | KOB |
| 16. | LP21CU1058P1 | [1] | COVER | KOB |
| 17. | LP21CU1047F1 | [1] | COVER | KOB |
| 17-1. | LP21CU1048P1 | [1] | COVER | KOB |
| 17-1C. | 2420T8460 | [2] | HINGE | KOB Superseded by part number: 2420T4450 |
| 17-1E. | 2427R476F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
| 17-2. | 2479Z1956 | [1] | INSULATOR | KOB |
| 17-3. | 2416Z650D1 | [1] | RUBBER SLEEVE | KOB20x25x595mm |
| 17-4. | 2416T28169 | [1] | STAY | KOB |
| 17-5. | 2419R9D3 | [1] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 17-6. | 2427P1836D5 | [1] | EXTRUSION | KOB |
| 18. | LP21CU1049F1 | [1] | COVER | KOB |
| 18-1. | LP21CU1050P1 | [1] | COVER | KOB |
| 18-1C. | 2420T8460 | [2] | HINGE | KOB Superseded by part number: 2420T4450 |
| 18-1E. | 2427R476F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
| 18-2. | 2427Z1930 | [1] | FOAM INSULATION | KOB |
| 18-3. | 2416Z650D1 | [1] | RUBBER SLEEVE | KOB20x25x595mm |
| 18-4. | 2416T28169 | [1] | STAY | KOB |
| 18-5. | 2419R9D3 | [1] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 18-6. | 2427P1836D5 | [1] | EXTRUSION | KOB |
| 19. | LP21CU1051F1 | [1] | COVER | KOB Superseded by part number: 2420R429D14, 2427Z1933, 2416Z1148, 2427Z1935, 2418T8864, 2427Z1998, 2416Z631D5, 2416Z631D11, 2427Z1934, ZS41C05030, ZN18C05004, LP21CU1052P1, 2416Z1149, 2416T23317, 2406Z304 |
| 19-1. | LP21CU1052P1 | [1] | COVER | KOB |
| 19-1P. | 2420P2973 | [2] | HINGE | KOB |
| 19-2. | 2427Z1929 | [1] | INSULATOR | KOB |
| 19-3. | 2427Z1933 | [1] | FOAM INSULATION | KOB |
| 19-4. | 2427Z1934 | [1] | FOAM INSULATION | KOB |
| 19-5. | 2427Z1935 | [1] | FOAM INSULATION | KOB |
| 19-6. | 2418T8864 | [22] | WASHER | KOB |
| 19-7. | 2416Z1148 | [1] | CUSHION | KOB |
| 19-8. | 2416Z1149 | [1] | CUSHION | KOB |
| 19-9. | 2416Z631D11 | [1] | RUBBER | KOB |
| 19-10. | 2416Z631D5 | [1] | RUBBER SLEEVE | KOB |
| 19-11. | 2416T23317 | [2] | RUBBER SLEEVE | KOB |
| 19-12. | ZS41C05030 | [4] | SCREW,M5 x 30mm | KOBM05x0.8x30mm |
| 19-13. | ZN18C05004 | [4] | NUT | KOBM05x0.8mm |
| 19-14. | 2406Z304 | [1] | HANDLE | KOB |
| 19-15. | 2420R429D14 | [2] | GROMMET | KOB |
| 20. | YM21CU0008F1 | [1] | BOX ASSY | BOX ASSY |
| 20-1. | YM21CU1049P1 | [1] | BOX | KOB Superseded by part number: 2414J2769 |
| 20-2. | YM21CU1047P1 | [1] | COVER | KOB |
| 20-2C. | 2427R476F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
| 20-2D. | 2420Z2179 | [2] | HINGE | KOB |
| 20-3. | 2420T6786 | [4] | BOLT,M12 x 1.75 x 25mm | KOBM12x1.75x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12025 |
| 20-4. | 2419R9D2 | [1] | COTTER PIN | KOBOD 08mm x 27.7mm Long |
| 20-5. | ZW16X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 20-6. | 2416R479D2 | [1] | CUSHION | KOB |
| 22. | LP21CU1053P1 | [1] | PLATE | KOB |
| 23. | LP21CU1054F1 | [1] | SPRING ASSY | |
| 23-1. | LP21CU1055P1 | [1] | SUPPORT | KOB |
| 23-2. | YM21CU1051P1 | [1] | SUPPORT | KOB |
| 23-3. | 2417P519 | [1] | SPRING | KOBSPRING |
| 24. | 2420T6788 | [4] | SCREW,M10 x 1.5 x 25mm | KOBM10x1.50x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C10025 |
| 25. | 2419R9D6 | [1] | PIN | KOBSnap -- OD 16mm x 43.8mm Long |
| 26. | 2427R475 | [1] | CATCH | KOB Superseded by part number: YN21C02226P1 |
| 27. | 2427R302D2 | [1] | CATCH | KOB |
| 28. | 2420T6787 | [31] | SCREW,M12 x 1.75 x 20mm | KOBM12x1.75x20mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12030 |
| 29. | 2420T6786 | [33] | BOLT,M12 x 1.75 x 25mm | KOBM12x1.75x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12025 |
| 30. | ZS18C12035 | [2] | SCREW,Hex, M12 x 35mm | KOBM12x1.75x35mm |
| 31. | ZS18C08025 | [16] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 32. | ZS18C06025 | [4] | SCREW,Hex, M6 x 25mm | KOBM06x1.0x25mm |
| 33. | ZN18C12010 | [4] | NUT | KOBM12x1.75mm |
| 34. | ZN18C10008 | [8] | NUT | KOBM10x1.50mm |
| 35. | ZN18C08007 | [8] | NUT | KOBM08x1.25mm |
| 36. | ZN18C06005 | [4] | NUT | KOBM06x1.0mm |
| 37. | ZW26X12000 | [10] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 38. | ZW26X10000 | [8] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 39. | ZW26X08000 | [16] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 40. | ZW26X06000 | [4] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 42. | 2418T10357 | [6] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 43. | ZW16X16000 | [1] | WASHER | KOBID 16 x OD 30 x Th 3.2mm |
| 44. | ZW16X08000 | [16] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 45. | ZW16H06000 | [8] | WASHER | KOBID 06 x OD 15 x Th 3.2mm |
| 46. | 2420Z1030 | [1] | KEY | KOB Superseded by part number: YN50S01010P1 |
| 47. | 2418T25266 | [1] | PLATE | KOB Superseded by part number: 2418T23536 |
| 48. | ZW16H08000 | [8] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 49. | ZS18C12025 | [5] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 50. | 2418T12346 | [8] | WASHER | KOBID 11 x OD 30 x Th 3.2mm |
| 56. | LP21CU1064P1 | [1] | HANDRAIL | KOB |
| 57. | LP21CU1063P1 | [1] | GUARD | KOB |
