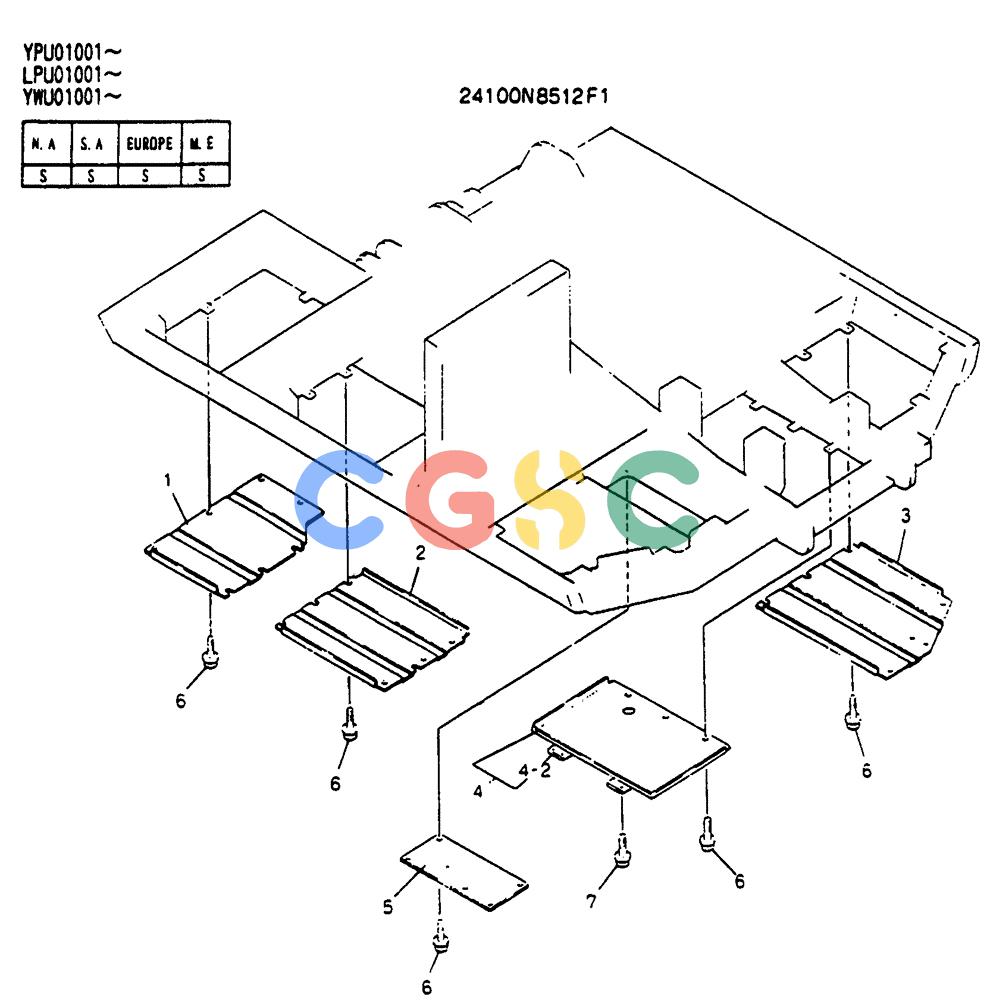

神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (02-016) - COVER ASSEMBLY, UNDER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
555 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N8512F1 | [1] | COVER ASSY. UNDER | |
| 1. | 2414P9687 | [1] | COVER | KOB |
| 2. | 2414P9688 | [1] | COVER | KOB |
| 3. | 2414P9684 | [1] | COVER | KOB |
| 4. | 2414P9689 | [1] | COVER | KOB |
| 4-2. | 2420T4521 | [2] | HINGE | KOB |
| 5. | 2414P9690 | [1] | COVER | KOB |
| 6. | 2420T6787 | [20] | SCREW,M12 x 1.75 x 20mm | KOBM12x1.75x20mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12030 |
| 7. | 2420T6788 | [4] | SCREW,M10 x 1.5 x 25mm | KOBM10x1.50x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C10025 |
