神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (11-005) - REPLACEMENT FILTER KIT(ELEMENT KIT) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
619 次

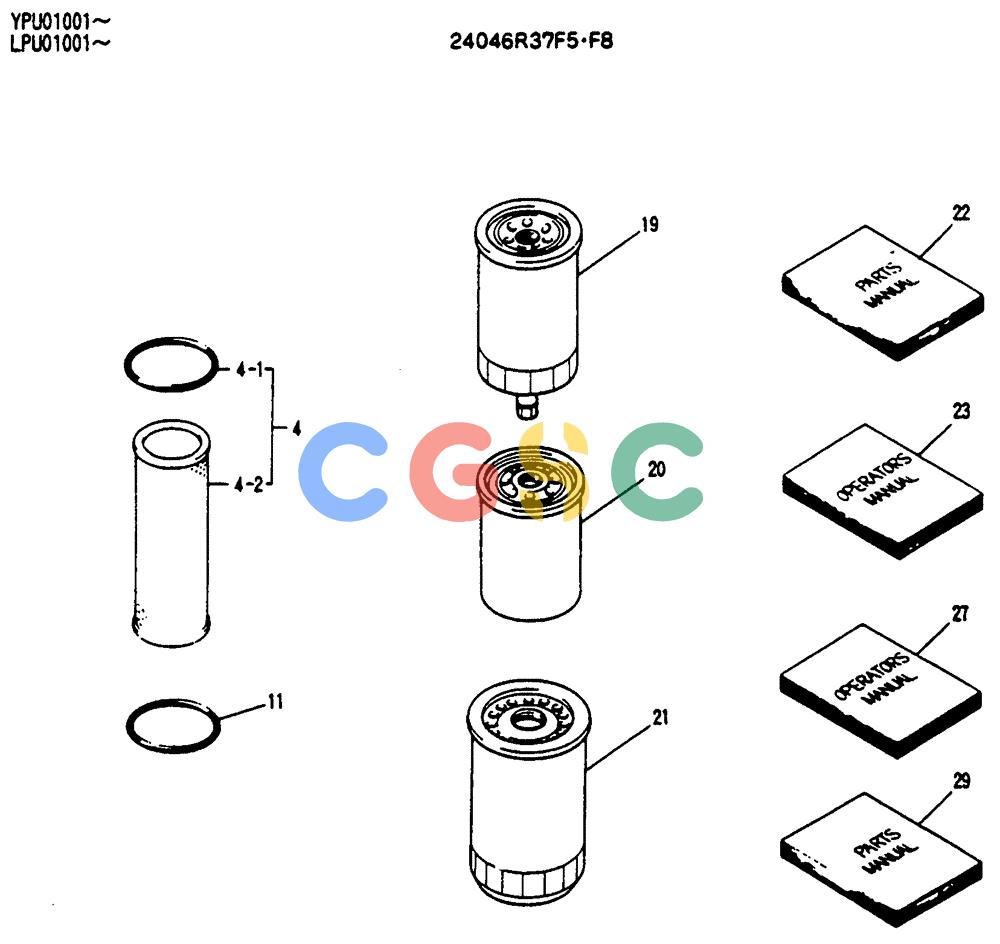

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24046R37F5 | [1] | ELEMENT KIT | |
| . . | 24046R37F8 | [1] | ELEMENT KIT | |
| 4. | 24046Z15 | [1] | ELEMENT | KOBELEMENT KIT Superseded by part number: 24046Z15P |
| 4-1. | ZD11P13000 | [1] | O-RING | KOBID 129.6 ± 1.05 x OD 140mm |
| 4-2. | 2446R147 | [1] | ELEMENT | KOB Superseded by part number: 24046Z15P |
| 11. | 2445Z869 | [4] | O-RING,9mm Thk x 115mm ID | KOBID 115 ± 0.40 x OD 133mm |
| 19. | YN50VU0001D2 | [1] | ELEMENT | KOBCUMMINS ENGINE PART NUMBER Superseded by part number: VWFS1280 |
| . . | 3925274 | [1] | FILTER, FUEL CUMMINS ELEMENT, FUEL (WATER SEPARATOR) | FILTER, FUEL CUMMINS ELEMENT, FUEL (WATER SEPARATOR) |
| 20. | YN50VU0001D3 | [1] | ELEMENT | KOBCUMMINS ENGINE PART NUMBER Superseded by part number: 84557099 |
| . . | 3903640 | [1] | FUEL FILTER | KOBELEMENT, FUEL Superseded by part number: 84557099 |
| 21. | YN50VU0001D4 | [1] | ENGINE OIL FILTER | KOBCUMMINS ENGINE PART NUMBER Superseded by part number: YN50VU0001D9 |
| . . | 3908616 | [1] | ENGINE OIL FILTER | STAELEMENT, OIL Superseded by part number: 76194608 |
| 22. | 2421R382D15 | [1] | MANUAL, PARTS(F5 ONLY) | |
| 23. | 2421R381D14 | [1] | MANUAL, OPERATORS(F5 ONLY) | |
| 27. | 2421R381D19 | [1] | MANUAL, OPERATORS(F8 ONLY) | |
| 29. | 2421R382D21 | [1] | MANUAL, PARTS(F8 ONLY) | |
