神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (03-001[02]) - CONTROL, OPERATORS Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
139 次

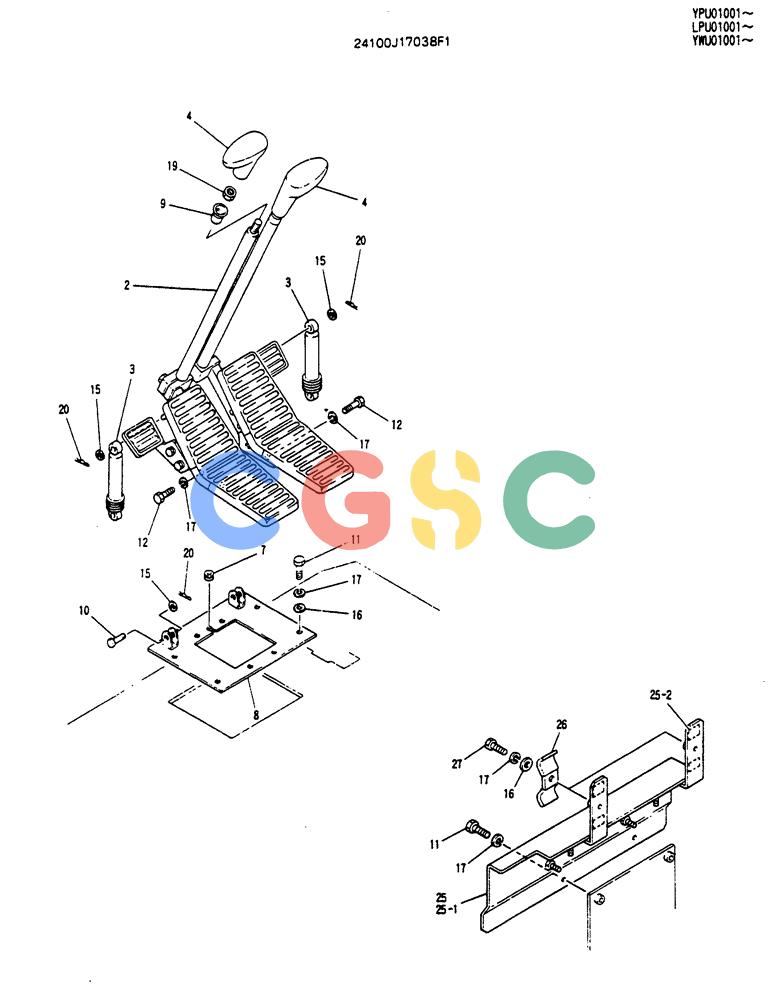

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J17038F1 | [1] | CONTROLS, OPERATORS | |
| 1. | 24100J17037F1 | [1] | CONTROL UNIT | KOBREF:03-003 Superseded by part number: 83990583, 2427N3458, 2420Z699, 2418R565, 2414T5537, ZW26X10000, 24100N8602F1, YN25M01027P1, LE03M01047F1, ZS18C10025, LE03M01010P1, ZN18C14011, ZM46C04012, YN03M01206P1, LE03M01041P2, LE03M01027F1, ZW26K08000, HN18C12000G2, ZS18C08020, YN25M01017F1 |
| 2. | 24100P4480F1 | [1] | LEVER | KOBREF : 03-012 |
| 3. | YN58V00001F1 | [2] | GAS STRUT | KOBABSORBER, SHOCK |
| 4. | YN03M01040P1 | [2] | GRIP | KOB |
| 6. | PV03M01041P1 | [2] | COVER | KOB |
| 7. | YN03M01159P1 | [1] | GROMMET | KOB |
| 8. | LE03M01012P1 | [1] | PLATE | KOB |
| 9. | YN03M01075P1 | [2] | COVER | KOB |
| 10. | HP45X08025G1 | [2] | PIN | KOB |
| 11. | ZS18C10025 | [6] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 12. | HS18C10020G1 | [4] | SCREW | KOBM10x1.50x20mm |
| 13. | 2420N458D10025 | [4] | CAPSCREW,Hex Socket Head, M10 x 25mm | KOBSCREW CAPSCREW Superseded by part number: ZS28C10025 |
| 14. | 2420R600D2 | [6] | SCREW,M6 x 16mm | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) Superseded by part number: ZM46C06016 |
| 15. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 16. | ZW16X10000 | [10] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 17. | ZW26X10000 | [12] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 18. | ZW26K10000 | [4] | LOCK WASHER | KOBLock -- ID 10 x OD 15.7 x Th 2.5mm Superseded by part number: 12581679 |
| 19. | 2420Z1232 | [2] | NUT | KOBM12x1.25mm |
| 20. | 2419R9D2 | [4] | COTTER PIN | KOBOD 08mm x 27.7mm Long |
| 21. | 2420R429D2 | [2] | GROMMET | KOBGROMMET |
| 22. | 2418Z725D5 | [4] | WASHER | KOBID 08 x OD 15.4 x Th 2.0mm |
| 23. | YR17M01022D1 | [2] | SCREW | KOBSEMS-BOLT Superseded by part number: ZM66C06016 |
| 25. | 24100P4481F1 | [1] | U-BRACKET | KOBBRACKET |
| 25-1. | 2416P21218 | [1] | BRACKET -- Was 2416P20708 | |
| 25-2. | 2416Z1157 | [4] | CUSHION | KOB |
| 26. | 2432P3381 | [2] | CLAMP | KOB |
| 27. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
