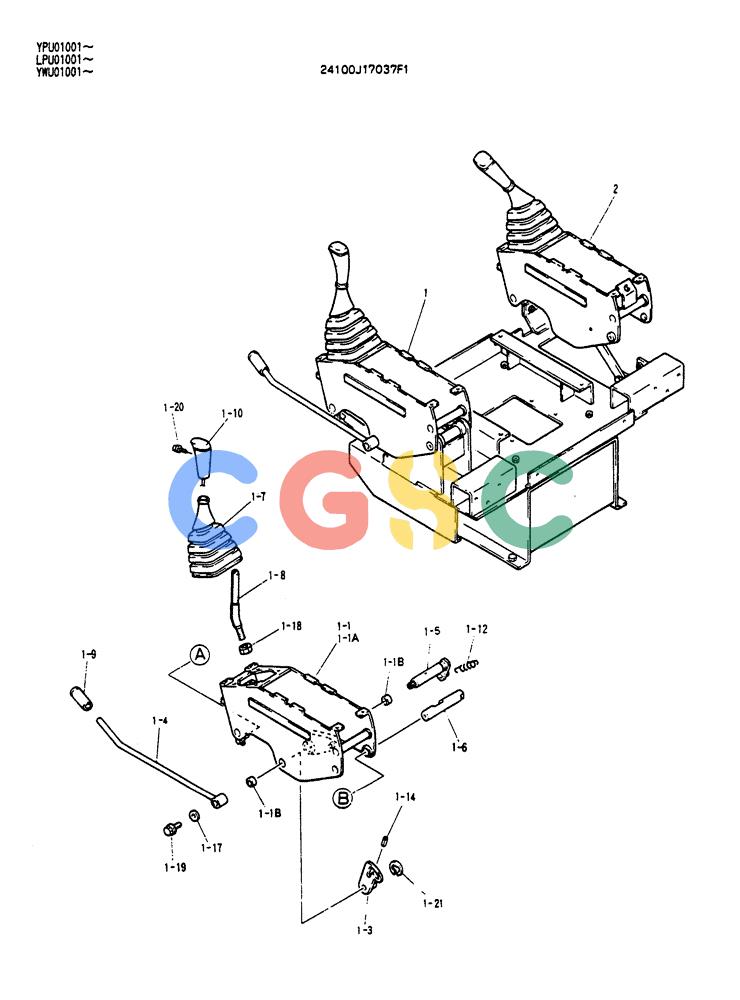

| . . | 24100J17037F1 | [1] | CONTROL UNIT | KOB Superseded by part number: 83990583, 2427N3458, 2420Z699, 2418R565, 2414T5537, ZW26X10000, 24100N8602F1, YN25M01027P1, LE03M01047F1, ZS18C10025, LE03M01010P1, ZN18C14011, ZM46C04012, YN03M01206P1, LE03M01041P2, LE03M01027F1, ZW26K08000, HN18C12000G2, ZS18C08020, YN25M01017F1 |
| 1. | 24100N8602F1 | [1] | CONTROL UNIT | KOB |
| 1-1. | LE03M01050F1 | [1] | HOLDER | KOBCONTROL BOX Superseded by part number: LE03M01068F1 |
| 1-1A. | LE03M01051P1 | [1] | PANEL SUPPORT | KOB Superseded by part number: LE03M01068F1 |
| 1-1B. | 2405U104D014012 | [2] | BUSHING | KOB |
| 1-2. | 2416P20612 | [1] | BRACKET | BRACKET |
| 1-2A. | 2416N7134 | [1] | BRACKET | |
| 1-2B. | 2405R312D2015 | [2] | BUSHING | KOB Superseded by part number: 2405R61D3 |
| 1-3. | 2418P31333 | [1] | PLATE | KOB |
| 1-4. | 2406P5722 | [1] | LEVER | KOB |
| 1-5. | 2410P1397 | [1] | ROLLER SHAFT | KOB |
| 1-6. | LE03M01026P2 | [1] | ROLLER SHAFT | KOB |
| 1-7. | LE03M01010P1 | [1] | BOOT | KOB |
| 1-8. | YN03M01205P1 | [1] | LEVER | KOB Superseded by part number: YN03M01205P2 |
| 1-9. | 2414Z270D1 | [1] | CAP | KOB |
| 1-10. | LE03M01014P1 | [1] | GRIP | KOB |
| 1-11. | YN50S01001P1 | [1] | SWITCH | KOB(Used for Safety Lever Lock, Safety) Superseded by part number: YN50S01001P2 |
| 1-12. | HP26T10005G1 | [1] | SPRING | KOB |
| 1-13. | 2417R142 | [1] | SHOCK ABSORBER | KOBDAMPER |
| 1-14. | LE03M01055P1 | [1] | PIN | KOBASSY |
| 1-15. | ZP16K01620 | [2] | SPLIT PIN | KOB |
| 1-16. | ZW16X08000 | [3] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 1-17. | HY26Y07015G1 | [1] | WASHER | KOB |
| 1-18. | ZN18C14011 | [1] | NUT | KOBM14x2.0mm |
| 1-19. | 2420R600D2 | [1] | SCREW,M6 x 16mm | KOB(Incls. Washer & Lockwasher) Superseded by part number: ZM46C06016 |
| 1-20. | YN03M01192P1 | [1] | SCREW | HITM04x0.7x12mm (Incls. Washer & Lockwasher) Superseded by part number: ZM46C04012 |
| 1-21. | ZR36X01200 | [1] | RING | KOBE-Ring -- Shaft 12mm x OD 23mm |
| 2. | LE03M01027F1 | [1] | CONTROL UNIT | KOB |
| 2-1. | LE03M01028P1 | [1] | CONTROL UNIT | KOB |
| 2-2. | YN03M01044P1 | [1] | GRIP | KOB |
| 2-3. | YN03M01206P1 | [1] | LEVER | KOB |
| 2-4. | LE03M01010P1 | [1] | BOOT | KOB |
| 2-5. | YN03M01192P1 | [1] | SCREW | HITM04x0.7x12mm (Incls. Washer & Lockwasher) Superseded by part number: ZM46C04012 |
| 2-6. | ZN18C14011 | [1] | NUT | KOBM14x2.0mm |
| 3. | LE03M01041P2 | [1] | SUPPORT | KOB |
| 4. | 2427N3458 | [1] | STAND | KOB |
| 5. | LE03M01047F1 | [1] | COVER ASSY | KOBCOVER ASSY |
| 5-1. | LE03M01046P1 | [1] | COVER | KOB |
| 5-2. | YN25M01007P1 | [1] | LATCH | KOB |
| 5-3. | YN25M01019P1 | [1] | CLIP | KOB |
| 5-4. | LE03M01045P1 | [2] | CUSHION | KOBRUBBER,CUSHION |
| 6. | YN25M01017P1 | [1] | RAIL | |
| 6-1. | YN25M01017S001 | [1] | RAIL ASSY. | KOB |
| 6-2. | YN25M01017S002 | [1] | RAIL ASSY. | KOB |
| 6-3. | YN25M01017S003 | [1] | HANDLE | KOB |
| 7. | 2418R565 | [1] | STOP | KOB |
| 8. | 2420R608D2 | [4] | SCREW,M6 x 12mm | KOB(Incls. Washer & Lockwasher) Superseded by part number: ZM61C06012 |
| 9. | 2420N458D08025 | [8] | SCREW,Hex Socket Head, M8 x 25mm | KOB Superseded by part number: ZS28C08025 |
| 10. | ZS18C08020 | [6] | SCREW,Hex, M8 x 20mm | KOB |
| 11. | ZS18C10025 | [1] | SCREW,Hex, M10 x 25mm | KOB |
| 12. | HN18C12000G2 | [1] | NUT | KOB |
| 13. | ZW26X08000 | [6] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 14. | ZW26K08000 | [8] | LOCK WASHER | KOBID 08 x OD 13 x Th 2.0mm |
| 15. | ZW26X10000 | [1] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 16. | 2420Z699 | [1] | GROMMET | KOB |
| 17. | YN25M01027P1 | [1] | RUBBER SLEEVE | KOB |
| 18. | 2414T5537 | [1] | COVER | KOB |
