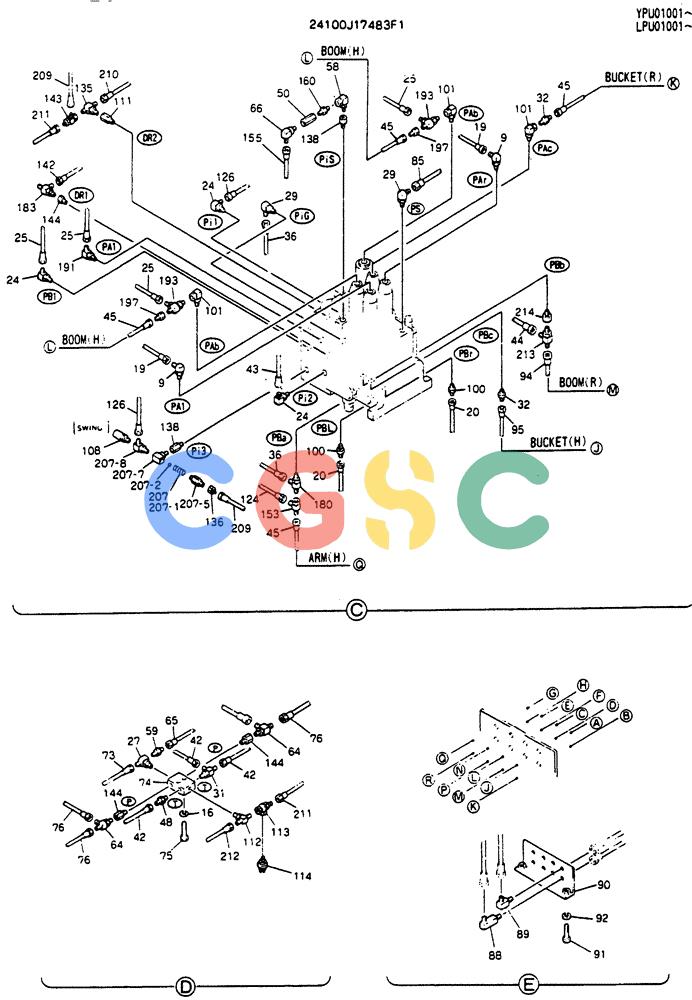

| . . | 24100J17483F1 | [1] | CONTROL LINES, REMOTE (BREAKER) | |
| 1. | ZH42X04000 | [8] | 45 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 45° -- (Incls. O-Ring 237-6004) |
| 2. | HH45X04004G2 | [2] | 45 ELBOW | HIT45° -- 1/4" PF (Incls. O-Ring ZD12P01100) |
| 3. | 2444T3288 | [2] | 45 ELBOW | KOB45° -- (Incls. O-Ring ZD12P01100) |
| 4. | ZX22M12032 | [1] | HOSE | KOB Superseded by part number: ZX22M12035 |
| 5. | ZH42X12000 | [1] | 45 ELBOW,Male, 30 Degree Fl, PF 3/4" x PF 3/4", O-Ring | KOB45° -- 3/4" PF (Incls. O-Ring 237-6012) |
| 6. | HX21E04140DX | [1] | FLEXIBLE HOSE | KOB |
| 7. | ZE72X04000 | [2] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| 8. | 2436U2756F3 | [1] | MANIFOLD | KOB |
| 9. | ZH32X06000 | [4] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| 10. | 2436U2755F1 | [1] | PILOT VALVE | KOBASSEMBLY Superseded by part number: 2436U2755F3 |
| 11. | YN68H01045P1 | [2] | CLAMP | KOB Superseded by part number: YN68H01045P2 |
| 12. | YN68H01041D1 | [1] | HOSE | KOB |
| 13. | LE68H01037D1 | [1] | FLEXIBLE HOSE | KOB |
| 14. | ZS13C08016 | [2] | SCREW | KOBM08x1.25x16mm Superseded by part number: ZS18C08016 |
| 15. | ZS13C10030 | [3] | SCREW | KOBM10x1.50x30mm Superseded by part number: ZS18C10030 |
| 16. | ZW22X08000 | [4] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 18. | 2444R1120D130 | [1] | HOSE | HIT |
| 19. | HX21E06280DX | [2] | FLEXIBLE HOSE | KOB |
| 20. | HX21E06230DX | [2] | FLEXIBLE HOSE | KOB |
| 24. | 2444Z2447F3 | [3] | ELBOW UNION | KOBUnion Elbow ASSY |
| 25. | HX21E04035DX | [2] | FLEXIBLE HOSE | KOB Superseded by part number: 2420R349D035 |
| 26. | ZH52X04000 | [2] | TEE,30 Degree Fl, Male, PF 1/4" x 1/4" x 1/4", O-Ring | KOB1/4" PF (Incls. O-Ring 237-6004) |
| 27. | 2444T2533 | [2] | TEE | KOB(Incls. O-Ring ZD12P01400) Superseded by part number: 87635046 |
| 28. | 2425Z519 | [1] | BALL | KOB |
| 29. | HH35X04004G1 | [5] | 90 ELBOW | HIT(WITH FILTER) Superseded by part number: HH35X04004G3 |
| 31. | 2444T3309 | [1] | TEE | KOB(2) 3/8" PF x 1/4" PF x 60mm Long (Incls. O-Ring ZD12P01100) |
| 32. | ZH22X04006 | [3] | HYD CONNECTOR | KOB(Incls. O-Ring 237-6006) |
| 33. | ZW22X10000 | [8] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 35. | 2444Z4037D265 | [1] | HOSE | KOB |
| 36. | HX21E04040DX | [1] | FLEXIBLE HOSE | KOB Superseded by part number: 2420R349D040 |
| 39. | 2444Z2432 | [1] | TEE | KOB1/4" PF x (2) 3/8" PF x 52mm Long (Incls. O-Ring ZD12P01400) |
| 42. | 2444R1119D100 | [3] | HOSE | KOB3/8" PF, 1000mm Long (39-3/8 in) |
| 43. | HX21E04200DX | [1] | FLEXIBLE HOSE | KOB Superseded by part number: 2420R349D200 |
| 44. | HX21E06130DX | [1] | FLEXIBLE HOSE | KOB Superseded by part number: 2420R537D130 |
| 45. | HX21E04150DX | [4] | FLEXIBLE HOSE | KOB |
| 47. | 2444T2524 | [1] | HYD CONNECTOR | KOB1/4" PF x 50mm Long (Incls. O-Ring ZD12P01100) |
| 48. | 2444Z2337 | [2] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01100) |
| 50. | 2436U1282D2108 | [1] | VALVE PRESSURE RELIE | KOB |
| 53. | 2444Z3279 | [1] | 90 ELBOW | KOB90° -- 3/8"PF-3/8"PFx32mm Long (Incls. O-Ring ZD12P01400) |
| 54. | HX21E06140DX | [1] | HOSE | KOB |
| 55. | 2436U1171D31 | [1] | CHECK VALVE | KOB |
| 56. | ZS18C10030 | [4] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 57. | ZW16X10000 | [4] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 58. | 2444T2544 | [3] | ELBOW | KOB90° -- 1/4" PF (Incls. O-Ring ZD12P01100) |
| 59. | ZH22X04000 | [6] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| 62. | ZH32X04000 | [6] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| 63. | 2432R314 | [3] | CLIP | KOB |
| 64. | 2444Z2336 | [3] | TEE | KOBTee -- 1/4"x3/8"x3/8"PF (Incls. O-Ring ZD12P01100) |
| 65. | HX21E04155DX | [1] | HOSE | KOB |
| 66. | 2444Z2338 | [10] | 90 ELBOW | KOB90° -- (1/4" PFx3/8" PF), (Incls. O-Ring ZD12P01100) |
| 67. | 2436U2590F2 | [1] | SOLENOID VALVE | KOB |
| 68. | YW68HU1001P1 | [1] | PLATE | |
| 69. | ZS13C10020 | [3] | SCREW | KOBM10x1.50x20mm Superseded by part number: ZS18C10020 |
| 71. | HX21E04190DX | [1] | FLEXIBLE HOSE | KOB Superseded by part number: 2420R349D190 |
| 73. | HX21E06045DX | [1] | FLEXIBLE HOSE | KOB |
| 74. | 2410T323 | [1] | BLOCK | KOB |
| 75. | ZS13C08040 | [2] | SCREW | KOBM08x1.25x40mm Superseded by part number: ZS18C08040 |
| 76. | HX21E04095DX | [4] | FLEXIBLE HOSE | KOB |
| 77. | YN30V00002F1 | [2] | PILOT VALVE | KOB |
| 78. | ZS23C06025 | [8] | SCREW,Hex Socket Head, M6 x 25mm | KOBM06x1.0x25mm |
| 79. | ZW11K06000 | [8] | WASHER | KOBID 06 x OD 11.5 x Th 1.6mm |
| 81. | ZS13C10025 | [2] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 82. | ZS18C08020 | [2] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 85. | HX31E04075DX | [2] | HOSE | KOB |
| 87. | HX21E04210DX | [9] | FLEXIBLE HOSE | KOB |
| 88. | 2444Z3227 | [4] | ELBOW | KOB |
| 89. | 2444Z3228 | [4] | ELBOW | KOB |
| 90. | 2416P15570 | [1] | BRACKET | BRACKET |
| 91. | ZS18C12025 | [2] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 92. | ZW26X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 93. | ZW11X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 94. | HX21E04170DX | [2] | FLEXIBLE HOSE | KOB |
| 95. | HX21E04160DX | [1] | HOSE | KOB |
| 97. | 2444Z3766 | [1] | ELBOW | KOB |
| 99. | 2444Z2891 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) |
| 100. | ZH22X06000 | [5] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) |
| 101. | 2444Z3155 | [3] | 90 ELBOW,PF 3/8" Fem x PF 3/8" Male | KOB90° -- (PF 3/8) (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 Superseded by part number: YT42H01128P1 |
| 103. | 2444Z3785 | [1] | HYD CONNECTOR | KOB1/4" PT (Incls. O-Ring ZD12P01100) |
| 104. | 2444Z2526 | [1] | TEE | KOB |
| 107. | 2444T2592 | [2] | TEE | KOB3/8" PF - 1/4" PF (No O-Ring supplied) |
| 108. | 2479U1379 | [1] | PRESSURE SWITCH | HIT Superseded by part number: 2479U1378 |
| 111. | 2444Z2516 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01100) |
| 112. | ZH52X06000 | [1] | TEE,30 Degree Fl, Male, PF 3/8" x 3/8" x 3/8", O-Ring | KOB3/8"PFx54mm Long (Incls. O-Ring ZD12P01400) |
| 113. | 2444Z2536 | [1] | TEE | KOB |
| 114. | 2479R2348 | [1] | SWITCH,95 Degrees C, 203 Degrees F | KOBHydraulic Oil Temperature (PT 3/8) |
| 116. | 2420R564 | [3] | GROMMET | KOB |
| 117. | 2420Z1188 | [3] | GROMMET | KOB |
| 118. | 2432Z290 | [26] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 124. | HX21E04050DX | [2] | HOSE | KOB |
| 125. | 2444R1119D025 | [1] | FLEXIBLE HOSE | KOB |
| 126. | HX21E04065DX | [1] | FLEXIBLE HOSE | KOB Superseded by part number: 2420R349D065 |
| 127. | 2444R1120D100 | [2] | HOSE | KOB1000mm Long (39-3/8 in) |
| 131. | 2414Z199D025 | [7] | PROTECTIVE SLEEVE | KOBHose -- 250mm Long (9-27/32 in) |
| 132. | 2420T3483 | [2] | GROMMET | KOB |
| 134. | 2432Z290D6 | [19] | CLIP | KOBWire Ties -- 292mm Long Superseded by part number: PY01P01043D5 |
| 135. | 2444T3182 | [1] | TEE | KOB |
| 136. | 2444Z3130 | [1] | HYD CONNECTOR | KOB |
| 138. | HH25R04004G2 | [2] | HYD CONNECTOR | KOB(WITH FILTER) |
| 140. | ZE72X06000 | [2] | PLUG | KOB3/8" PF, (Incls. O-Ring ZD12P01400) |
| 142. | 2444R1119D060 | [1] | FLEXIBLE HOSE | HITHOSE 600 mm long (23-5/8 in) |
| 143. | 2444Z2359 | [2] | TEE | KOB3/8" PT (Incls. O-Ring ZD12P01400) |
| 144. | 2444Z2525 | [7] | HYD CONNECTOR | KOB1/4"PFx35mm Long (Incls. O-Ring ZD12P01100) Superseded by part number: 72217408 |
| 152. | ZW16X08000 | [2] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 153. | 2444Z2544 | [1] | TEE | KOB1/4"PTx60mm Long (No O-Ring supplied) |
| 155. | HX21E06160DX | [1] | HOSE | KOB |
| 158. | HX21E04110DX | [1] | FLEXIBLE HOSE | KOB(PF 1/4, L=1100MM) Superseded by part number: 2420R349D110 |
| 160. | 2444T3202 | [1] | HYD CONNECTOR | KOB |
| 1S2. | YR03M01134P1 | [1] | COVER | KOB |
| 163. | 24100P3848F1 | [1] | LOCK | KOBASSY |
| 163-1. | PY30M01003P1 | [1] | SUPPORT | KOB |
| 163-2. | 2406P5481 | [1] | LH DOOR LOCK | KOB |
| 163-3. | HP45X10022G1 | [1] | PIN | KOB Superseded by part number: PM55M01012P1 |
| 163-4. | HP26T09002G1 | [1] | SPRING | KOB |
| 163-5. | ZW16X10000 | [2] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 163-6. | 2419R9D3 | [1] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 168. | HX21E06060DX | [1] | FLEXIBLE HOSE | KOB |
| 169. | 2444Z3128 | [1] | HYD CONNECTOR | KOB |
| 170. | YN68H01039P2 | [1] | PEDAL | KOB |
| 171. | 2436U1200F3 | [1] | PILOT VALVE | KOB |
| 172. | 2418T18004 | [2] | PLATE | KOB |
| 173. | 2416Z566 | [1] | RUBBER BAND | KOBCUSHION |
| 174. | YN68H01038P1 | [1] | BRACKET | KOB |
| 175. | 2419T3757D6 | [1] | PIN | KOB |
| 176. | 2419R9D4 | [1] | COTTER PIN | KOBSnap -- OD 12mm x 35.8mm Long |
| 177. | ZW16X12000 | [1] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 178. | ZS18C08045 | [2] | SCREW,Hex, M8 x 45mm | KOBM08x1.25x45mm |
| 179. | ZW16H08000 | [2] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 180. | 2444Z2457 | [1] | TEE | KOB |
| 181. | HX31E04050DX | [1] | FLEXIBLE HOSE | KOB |
| 183. | 2444Z3841 | [1] | TEE | KOB |
| 184. | HX21E04060DX | [1] | FLEXIBLE HOSE | KOB Superseded by part number: 2420R349D060 |
| 191. | 2444Z2447F2 | [1] | 90 ELBOW | KOB |
| 193. | 2444Z3421 | [2] | TEE | KOB(2) 3/8"PFx1/4"PFx54mm Long (Incls. O-Ring ZD12P01400) |
| 197. | 2444T2613 | [3] | HYD CONNECTOR | KOB |
| 199. | ZW22K06000 | [8] | LOCK WASHER | KOBID 06 x OD 10 x Th 1.5mm |
| 207. | 2444R1111F4 | [1] | HYD CONNECTOR | KOBASSY |
| 207-1. | 2417T537 | [1] | SPRING | KOB |
| 207-2. | 2425Z551 | [1] | BALL | BALL |
| 207-5. | 2444Z3787 | [1] | HYD CONNECTOR | KOB Superseded by part number: 2444Z2294 |
| 207-7. | 2444Z3774 | [1] | TEE | KOB Superseded by part number: 2444Z2526 |
| 207-8. | 2444Z3820 | [1] | 90 ELBOW | KOB90° -- 1/4" PT (Incls. O-Ring ZD12P01100) |
| 209. | 2444R1119D040 | [1] | HOSE,400.00 mm | KOB |
| 210. | 2444R1119D050 | [1] | HOSE | KOB500mm Long (19-11/16 in) |
| 211. | 2444R1119D150 | [1] | FLEXIBLE HOSE | KOB |
| 212. | 2444R1119D035 | [1] | FLEXIBLE HOSE | KOB350mm Long (13-49/64 in) |
| 213. | 2444Z3832 | [1] | TEE | HIT |
| 214. | 2444Z3943 | [1] | ELEC CONNECTOR | KOB3/8" PF - 3/8"PFx 35mm Long (Incls. O-Ring ZD12P01400) |
| 218. | 2432N568 | [1] | INSTALLER JIG | KOB Superseded by part number: 2432N1751 |
| 219. | 2432N578 | [1] | PLATE | KOB |
| 220. | 2432N696 | [1] | INSTALLER JIG | KOB Superseded by part number: 2432N1750 |
| 221. | 2432N1084 | [1] | INSTALLER JIG | KOB Superseded by part number: 2432N1752 |
