神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (03-012) - FOOT PEDAL ASSY (LEVER ASSY, CONTROL) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
431 次

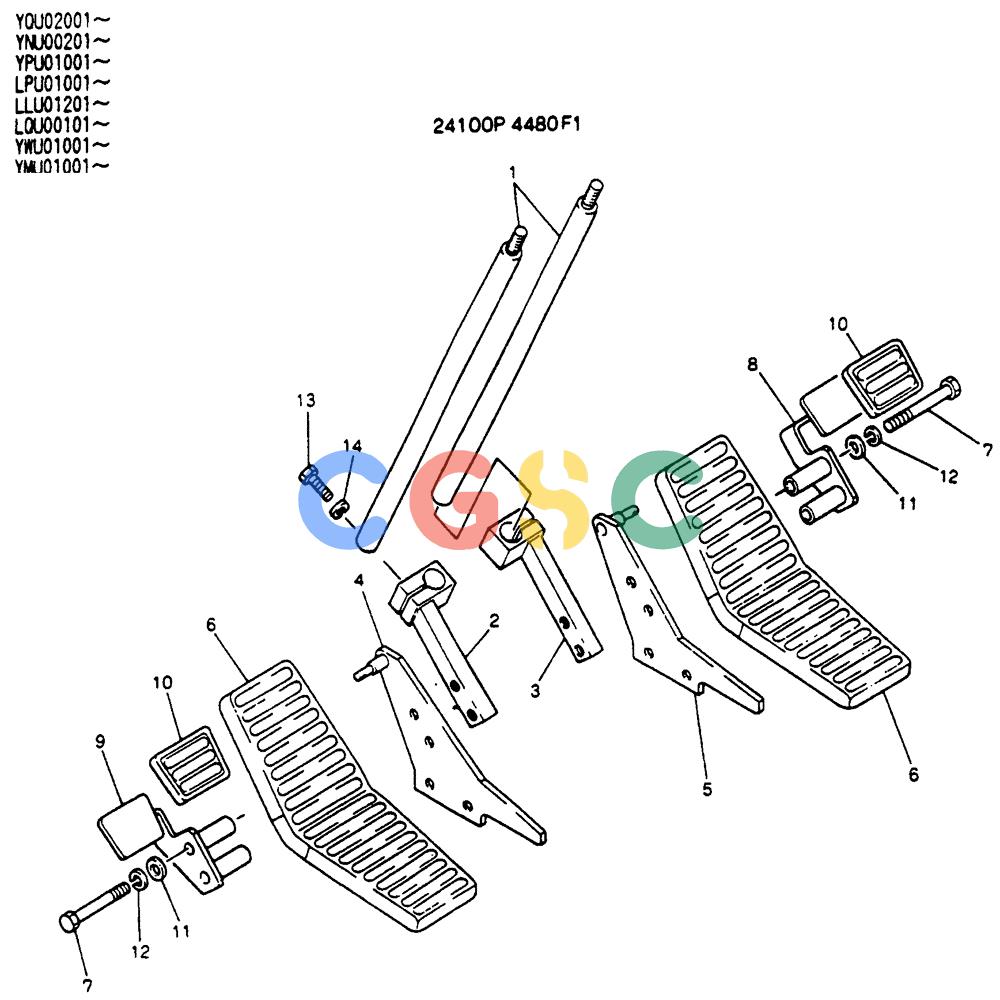

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P4480F1 | [1] | LEVER | KOB |
| 1. | 2406T3511 | [2] | LEVER | KOB |
| 2. | 2416P20702 | [1] | SUPPORT | KOB |
| 3. | 2416P20703 | [1] | SUPPORT | KOB |
| 4. | YN03M01156P1 | [1] | SUPPORT | KOB |
| 5. | YN03M01155P1 | [1] | SUPPORT | KOB |
| 6. | YN03M01157P1 | [2] | PEDAL | KOB |
| 7. | 2420T8678 | [4] | SCREW | KOB |
| 8. | 2406P5712 | [1] | PEDAL | KOB |
| 9. | 2406P5711 | [1] | PEDAL | KOB |
| 10. | 2427Z560 | [2] | COVER | KOB |
| 11. | 2418Z725D6 | [4] | WASHER | KOBID 10 x OD 21.0 x Th 2.0mm Superseded by part number: ZW16P10000 |
| 12. | 2418Z726D6 | [4] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: 77253523, ZW26X10000 |
| 13. | ZS18C10030 | [2] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 14. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
