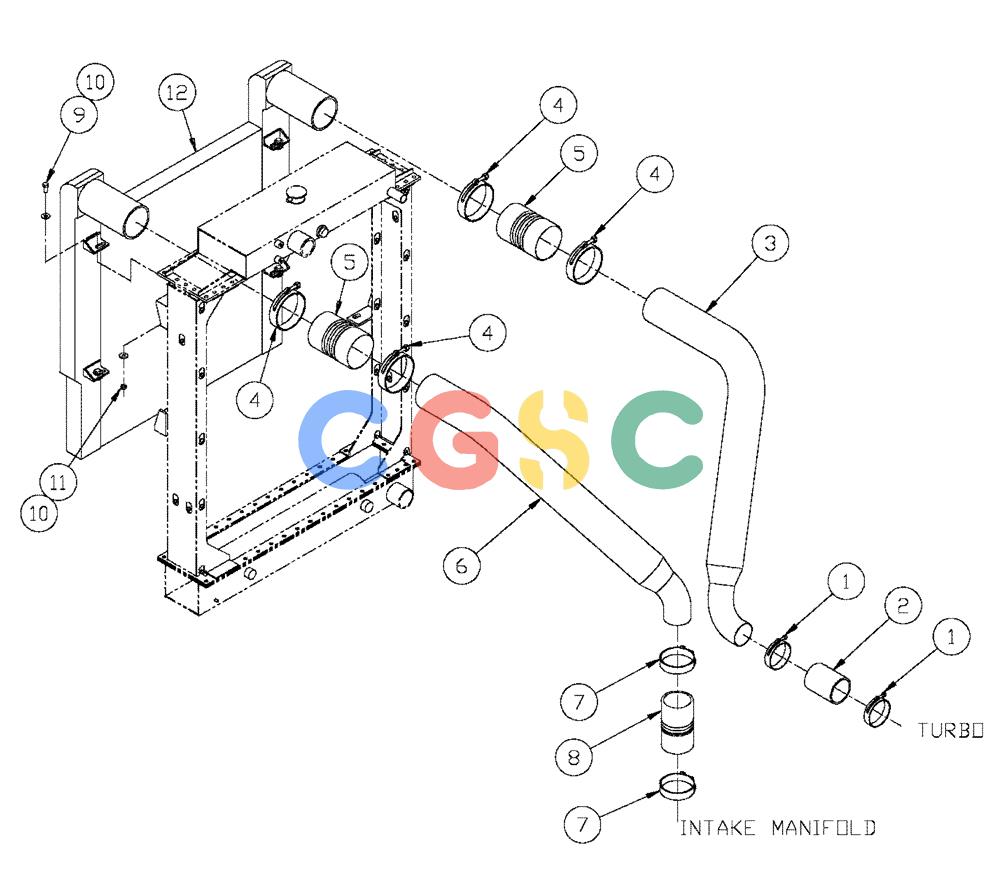

凯斯零件查询(FLX3300B) - FLOATER - 1999 (12/99-9/02) (02-048) - CHARGE AIR COOLER TUBES GROUP (FLX3330B) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
840 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN300333
|
[2] |
CLAMP
|
BN
Constant Torque,3.00"
|
| 2. |
BN2390864
|
[1] |
HOSE
|
BN
CAC 2.75"
|
| 3. |
BN2402062
|
[1] |
TUBE
|
BN
Turbo Pressure Side
|
| 4. |
BN300760
|
[4] |
CLAMP
|
A
Constant Torque, 4.25"
|
| 5. |
BN2390871
|
[2] |
HOSE
|
BN
CAC 4" Series 367
|
| 6. |
BN2402061
|
[1] |
TUBE
|
BN
Turbo Return Side
|
| 7. |
BN300759
|
[2] |
CLAMP
|
BN
Constant Torque, 3.25"
|
| 8. |
BN2390865
|
[1] |
HOSE
|
BN
CAC 3" 367 Series
|
| 9. |
86624978
|
[4] |
BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd
|
ZED
|
| 10. |
140017
|
[8] |
WASHER,M10 x 20mm OD x 2mm Thk
|
PA
Superseded by part number: 9820489
|
| 11. |
412141
|
[4] |
NUT,M10 x 1.5, Cl 8
|
ZED
Superseded by part number: 190003888452
|
| 12. |
BN314594
|
[1] |
COOLER ASSY.
|
TYR
Charge Air, CDC
|
