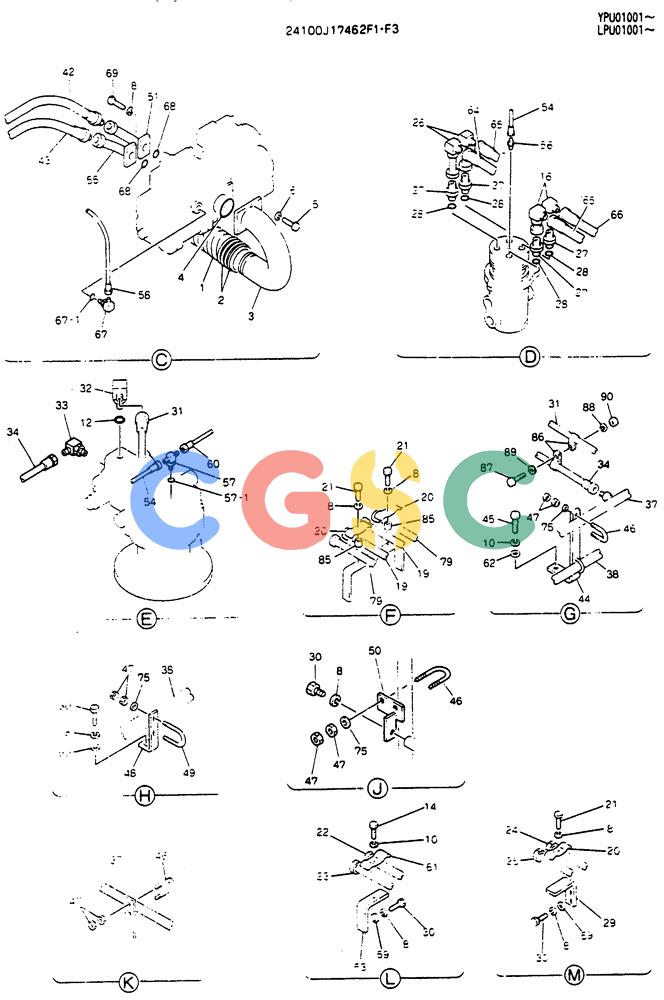

| . . | 24100J17462F1 | [1] | HYD LINES.UPP | |
| . . | 24100J17462F3 | [1] | HYD LINES.UPP | |
| 1. | 2418T7002D7 | [1] | FLEXIBLE HOSE | KOB |
| 2. | ZC16X09100 | [4] | CLIP | KOBClamp, Hose -- Min 80 x Max 101mm |
| 3. | 2418P29571 | [1] | RIGID TUBE | KOB |
| 4. | ZD11G07500 | [1] | O-RING,74.40mm ID x 80.60mm OD x 3.10mm | KOBID 74.40 ± 0.65 x OD 80mm |
| 5. | ZS23C12030 | [4] | SCREW,Hex Socket Head, M12 x 30mm | KOBM12x1.75x30mm |
| 6. | ZW22K12000 | [4] | LOCK WASHER | KOBID 12.2 x OD 17.8 x Th 2.5mm |
| 8. | ZW22X10000 | [22] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 9. | ZN13C12010 | [3] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 10. | ZW22X12000 | [10] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 11. | ZA23F28012 | [3] | HYD CONNECTOR | KOB |
| 12. | ZD12P02400 | [14] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 13. | 2416N5860 | [1] | BRACKET | BRACKET |
| 14. | ZS13C12050 | [5] | SCREW | KOBM12x1.75x50mm Superseded by part number: ZS18C12050 |
| 15. | ZS13C12065 | [3] | SCREW | KOB(M12X65) Superseded by part number: ZS18C12065 |
| 16. | 2418T17992D5 | [2] | RIGID TUBE | KOBTUBE |
| 17. | ZA23F22012 | [10] | HYD CONNECTOR | KOB3/4"PF - M30x1.50 x 46mm Long |
| 19. | 2418P21966 | [1] | TUBE | KOB |
| 20. | 2432T2244 | [3] | CLAMP | KOBDouble -- 102x32x12mm (Ø23xØ23mm) |
| 21. | ZS13C10050 | [3] | SCREW | KOBM10x1.50x50mm Superseded by part number: ZS18C10050 |
| 22. | YW03HU1002P1 | [1] | TUBE | KOB |
| 23. | 2418T23792 | [1] | TUBE | KOB |
| 24. | 2418T23793 | [1] | TUBE | KOB |
| 25. | 2418T23794 | [1] | TUBE | KOB |
| 26. | 2418T17992D6 | [2] | TUBE | KOB |
| 27. | 2444Z2320 | [5] | ELEC CONNECTOR | KOB1"PF-M30x1.50x48mm Long |
| 28. | ZD12P02900 | [6] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 29. | 2416T13157 | [1] | SUPPORT | KOB |
| 30. | ZS13C10020 | [6] | SCREW | KOBM10x1.50x20mm Superseded by part number: ZS18C10020 |
| 31. | 2444Z2403D7 | [1] | FLEXIBLE HOSE | KOB Superseded by part number: 2444R1170D2 |
| 32. | ZA33F22012 | [1] | ELBOW | KOB |
| 33. | ZH32X12000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 3/4" x PF 3/4", O-Ring | KOBElbow, 90° -- 3/4 PF (Incls. O-Ring 237-6012) |
| 34. | ZX22M12095 | [1] | HOSE | KOB |
| 35. | ZD11G04500 | [1] | O-RING,44.40mm ID x 50.60mm OD x 3.10mm | KOBID 44.40 ± 0.41 x OD 50mm |
| 36. | 2418T17847 | [1] | TUBE | KOB |
| 37. | YW32HU1003P1 | [1] | TUBE | KOB |
| 38. | YW32HU1002P1 | [1] | TUBE | KOB |
| 39. | R44P0089D11 | [3] | COUPLING | KOB Superseded by part number: ZG15F03200 |
| 39-3. | R44P0089D11S3 | [2] | GASKET | KOB |
| 40. | R44P0089D8 | [2] | ELASTIC JOINT,101mm ID x 148.8mm OD x 165.1mm L | KOBCOUPLING |
| 40-3. | R44P0089D8S3 | [2] | GASKET | KOB |
| 41. | 2436R393S4 | [1] | VALVE | KOBCHECK |
| 42. | YW30HU1001D3 | [1] | FLEXIBLE HOSE | KOB |
| 43. | YW30HU1001D1 | [1] | FLEXIBLE HOSE | KOB |
| 44. | 2418T24451 | [1] | PLATE | |
| 45. | ZS13C12030 | [2] | CAPSCREW | KOBSCREW M12x1.75x30mm Superseded by part number: ZS18C12030 |
| 46. | 2420T2948D1 | [4] | BOLT,M8 x 1.25 x 32mm W x 74mm L | KOBU -- M08x1.25x ID 32 x 74mm Long |
| 47. | ZN13C08007 | [20] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 48. | 2416T24059 | [1] | SUPPORT | KOB |
| 49. | 2420T2948D3 | [1] | U-BOLT | KOBU-BOLT |
| 50. | YW32HU1004P1 | [1] | SUPPORT | |
| 51. | 2418T17848 | [1] | TUBE | KOB |
| 53. | 2416T13399 | [1] | SUPPORT | KOB |
| 54. | ZX21M08085 | [1] | FLEXIBLE HOSE | KOB850mm Long (33-29/64 in) |
| 55. | 2418T17843 | [1] | RIGID TUBE | KOB |
| 56. | ZH22X08000 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01800) |
| 57. | 2444Z2360 | [1] | TEE | KOB(2) 1/2" PF x 3/8" PF x 64mm Long (Incls. O-Ring ZD12P01400) |
| 57-1. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 58. | ZX21M08130 | [1] | FLEXIBLE HOSE | KOB1300mm Long (51-3/16 in) |
| 59. | ZW13H10000 | [5] | WASHER | KOBID 11 x OD 24 x Th 3.2mm Superseded by part number: ZW16H10000 |
| 60. | ZX41M08060 | [1] | HOSE | KOB |
| 61. | 2432T2242 | [1] | CLAMP | KOBDouble -- 106x38x12mm (Ø23xØ29mm) |
| 62. | ZW13H12000 | [6] | WASHER | KOB(M12) |
| 63. | ZS13C10075 | [4] | SCREW | KOB(Ml0x75) Superseded by part number: ZS18C10075 |
| 64. | 2444R1170D1 | [1] | FLEXIBLE HOSE | KOB |
| 65. | 2444R1170D3 | [2] | FLEXIBLE HOSE | KOB |
| 66. | 2444R1170D5 | [1] | FLEXIBLE HOSE | KOB |
| 67. | ZH32X08000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/2" x PF 1/2", O-Ring | KOBElbow, 90° -- 1/2"PT (Incls. O-Ring ZD12P01800) |
| 67-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 68. | ZD12G03000 | [2] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| 69. | ZS13C10030 | [8] | SCREW | KOBM10x1.50x30mm Superseded by part number: ZS18C10030 |
| 71. | ZS13C10055 | [1] | SCREW | KOBM10x1.50x55mm Superseded by part number: ZS18C10055 |
| 73. | ZC27X22012 | [1] | COLLAR | HITCLAMP |
| 75. | ZW13H08000 | [10] | WASHER | KOB(M8) |
| 77. | ZE72X12000 | [2] | PLUG | KOB(3/4" PF) (Incls. O-Ring ZD12P02400), (F1 Only) |
| . . | ZE72X12000 | [1] | PLUG | KOB(3/4" PF) (Incls. O-Ring ZD12P02400), (F3 Only) |
| 78. | 2436U2623F2 | [1] | VALVE | KOBHOLDING |
| 79. | YW03HU1003P1 | [1] | TUBE | |
| 80. | 2418P26600 | [1] | TUBE | KOB |
| 81. | 2444Z2418 | [1] | ELBOW | KOB |
| 82. | 2420R564 | [1] | GROMMET | KOB |
| 83. | 2432Z290D6 | [2] | CLIP | KOBWire Ties -- 292mm Long Superseded by part number: PY01P01043D5 |
| 85. | 2418T24410D5 | [2] | SPACER | KOB |
| 86. | 2432R225D11 | [2] | CLIP | KOBClamp, Single -- ID 29 x 62.5mm Long Superseded by part number: ZC46X29011 |
| 87. | ZS18C10030 | [1] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 88. | ZW26X10000 | [1] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 89. | ZW16X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 90. | ZN18C10008 | [2] | NUT | KOBM10x1.50mm |
| 91. | ZH52X08000 | [1] | TEE,30 Degree Fl, Male, PF 1/2" x 1/2" x 1/2", O-Ring | KOB(Incls. O-Ring 237-6008) |
| 91-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 92. | 2436U2908F1 | [1] | CONTROL VALVE | KOB |
| 93. | 2436U1310F1 | [1] | VALVE | KOBVALVE ASSY (F1 ONLY) |
| 95. | ZE72X04000 | [3] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100), (F1 Only) |
| . . | ZE72X04000 | [1] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100), (F3 Only) |
