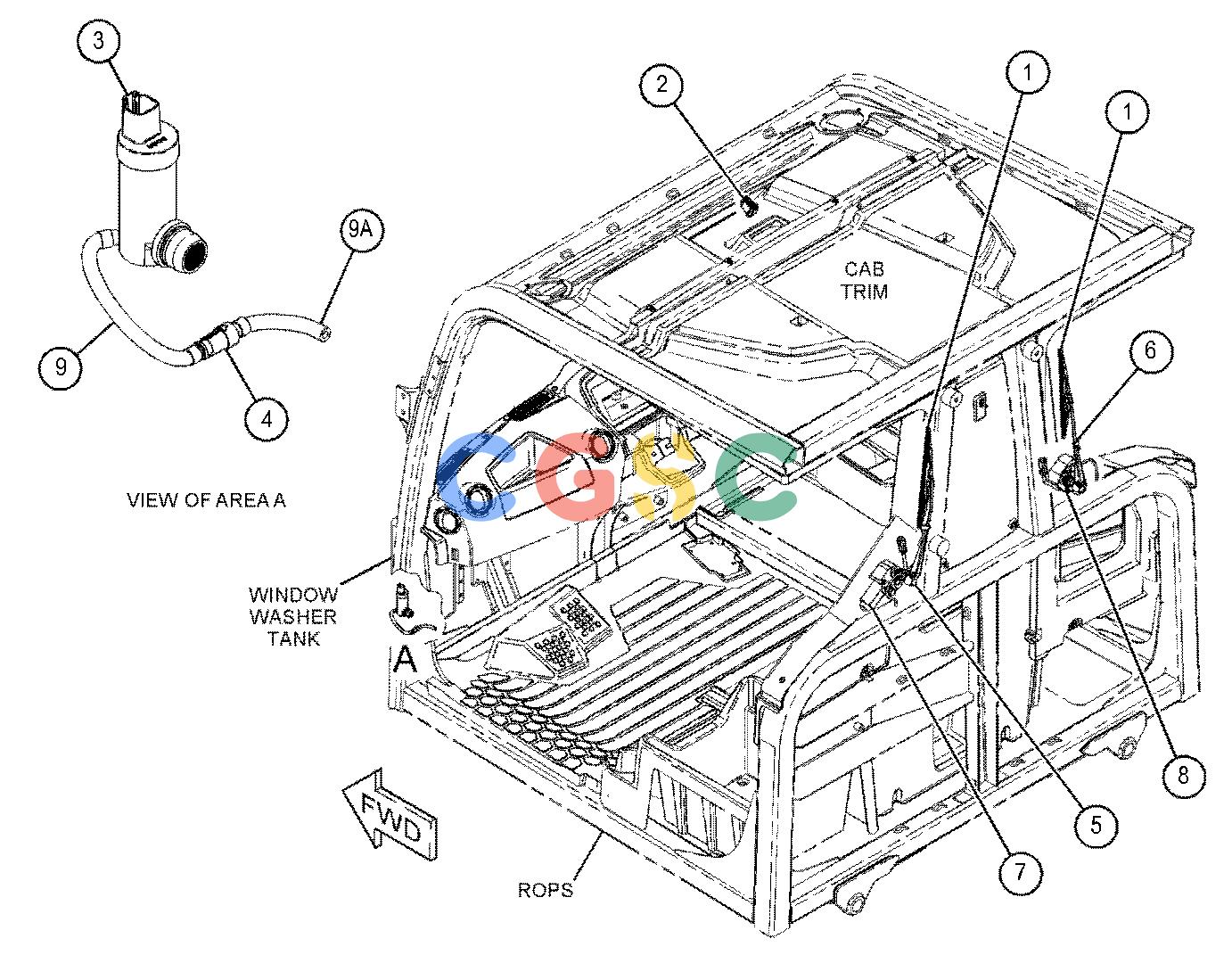

卡特零件查询（735） 480-7003: WIPER GP-WINDOW
广数供应链运营团队, 15 02月, 2025，浏览：
178 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 128-5040 | [2] | BLADE AS-WIPER(330-MM) | |
| 2. | 468-8073 | [1] | SWITCH AS-ROCKER(REAR WIPER) | |
| | 111-7899 | [1] | GASKET | |
| 3. | 469-1998 | [1] | PUMP AS-WASHER | |
| 4. | 469-5745 | [1] | VALVE-CHECK | |
| 5. | 480-6991 | [1] | ARM GP-WIPER(LH) | |
| | 194-5171E | | HOSE(34-CM) | |
| | 501-7933 | [1] | NOZZLE | |
| 6. | 480-6994 | [1] | ARM GP-WIPER(RH) | |
| | 501-7967 | [1] | NOZZLE | |
| | 194-5171E | | HOSE(32-CM) | |
| 7. | 480-6997Y | [1] | MOTOR GP-WINDOW WIPER(LH) | |
| 8. | 480-6998Y | [1] | MOTOR GP-WINDOW WIPER(RH) | |
| 9. | 144-0195E | | HOSE(12-CM) | |
| 9A. | 144-0195E | | HOSE(6-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | Y | | SEPARATE ILLUSTRATION |
