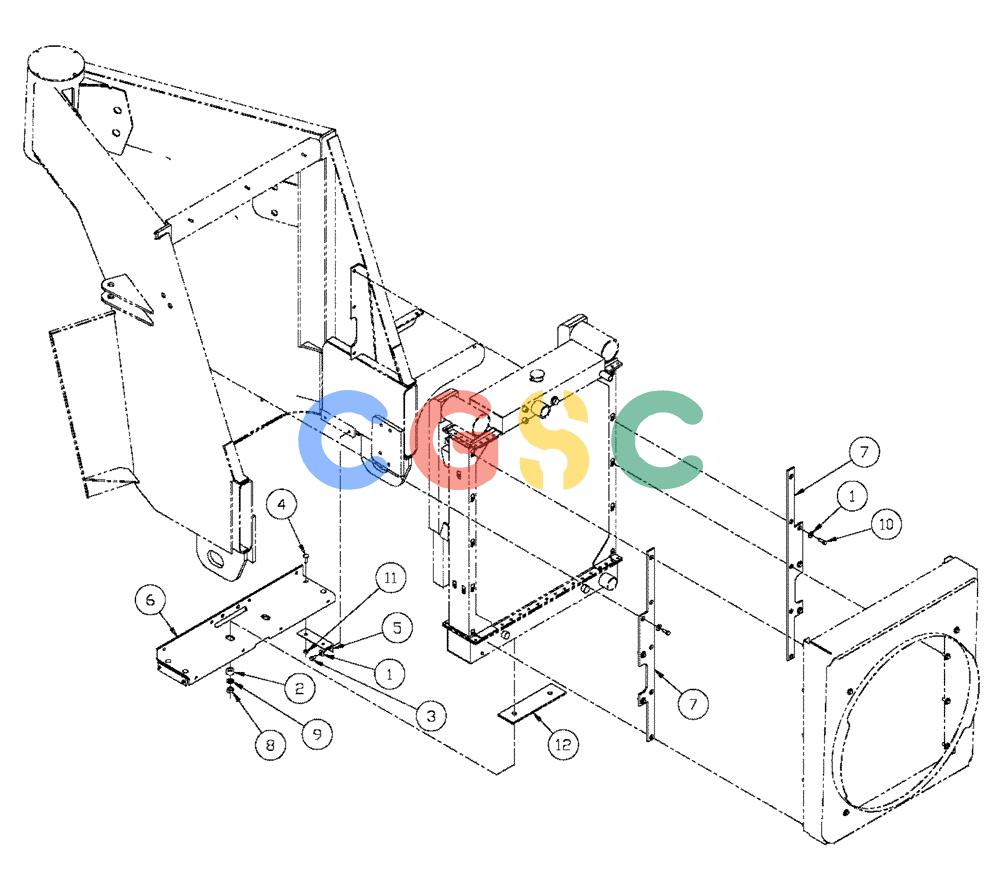

凯斯零件查询(FLX3300B) - FLOATER - 1999 (12/99-9/02) (02-059) - RADIATOR MOUNTING ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
699 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN50145
|
[10] |
WASHER
|
BN
3/8, G5 Superseded by part number: 87529312
|
| 2. |
BN2297363
|
[2] |
MOUNTING PLATE
|
BN
Isolator 200106R1
|
| 3. |
428-612
|
[4] |
BOLT,Hex, 3/8" - 24 x 3/4", Gr 8
|
BN
Hex, 3/8"-24 x 5/8", G8
|
| 4. |
BN300369
|
[4] |
BOLT
|
BN
3/8-16 X 1.25, CB, G8
|
| 5. |
BN302291
|
[2] |
MOUNTING PLATE
|
BN
|
| 6. |
BN302292
|
[1] |
MOUNTING PLATE
|
BN
Radiator
|
| 7. |
BN314691
|
[2] |
MOUNTING PLATE
|
BN
Radiator, RS
|
| 8. |
86637650
|
[2] |
NUT,5/8"-18, GB
|
FAR
Superseded by part number: 83991073
|
| 9. |
BN50155
|
[2] |
WASHER,17.48mm ID x 44.45mm OD x 3.05mm Thk
|
BN
5/8", G5
|
| 10. |
BN50367
|
[6] |
BOLT
|
BN
3/8"-16 x 1", G5 Superseded by part number: 413-616
|
| 11. |
BN50756
|
[4] |
NUT
|
BN
3/8-16, NLN, G5 Superseded by part number: 231-4146
|
| 12. |
BN7146236
|
[1] |
RADIATOR
|
BN
|
