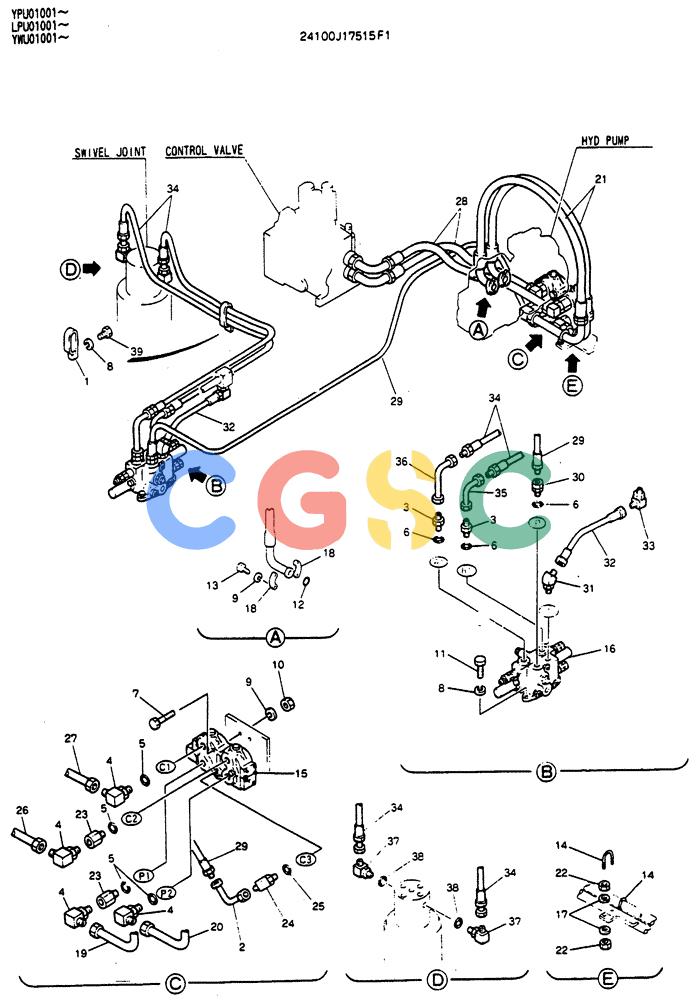

神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (04-006) - UPPER HYDRAULICS (DOZER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
855 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J17515F1 | [1] | HYD LINES,UPP (DOZER) | |
| 1. | 2432R226D11 | [1] | CLIP | KOBClamp, Double -- ID 22 x 81mm Long Superseded by part number: ZC48X22014 |
| 2. | 2418T16788 | [1] | TUBE | KOB |
| 3. | 2444Z2236 | [2] | HYD CONNECTOR | KOB |
| 4. | ZA33F28016 | [4] | ELBOW | KOB |
| 5. | ZD12P02900 | [4] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 6. | ZD12P02400 | [3] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 7. | ZS13C10090 | [4] | SCREW | KOBM10x1.50x90mm Superseded by part number: ZS18C10090 |
| 8. | ZW22X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| g. | ZW22X10000 | [12] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 10. | ZN13C10008 | [4] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 11. | ZS13C12045 | [3] | SCREW | KOBM12x1.75x45mm Superseded by part number: ZS18C12045 |
| 12. | ZD12P02600 | [2] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 13. | ZS13C10035 | [8] | SCREW | KOBM10x1.50x35mm Superseded by part number: ZS18C10035 |
| 14. | 2420T2948D13 | [2] | U-BOLT | KOB |
| 15. | 2436U1303F1 | [1] | PILOT VALVE | KOBDIVIDER, FLOW |
| 16. | 2436U1237F1 | [1] | HYDRAULIC VALVE | KOB |
| 17. | ZW13H08000 | [4] | WASHER | KOB(M8) |
| 18. | ZE13X12000 | [4] | CLAMP | KOBHalf -- (Incls. Capscrew & Lockwasher) |
| 19. | YW30HU1003P1 | [1] | TUBE | KOB |
| 20. | YW30HU1002P1 | [1] | TUBE | KOB |
| 21. | 2444Z2287D6 | [2] | FLEXIBLE HOSE | KOB |
| 22. | ZN13C08007 | [8] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 23. | HH25R16016G1 | [2] | HYD CONNECTOR | KOBCONNECTOK |
| 24. | ZA33F15006 | [1] | ELBOW | KOB |
| 25. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 26. | YW30HU1005P1 | [1] | TUBE | KOB |
| 27. | YW30HU1004P1 | [1] | TUBE | KOB |
| 28. | YW30HU1001D5 | [2] | HOSE | KOB |
| 29. | 2444Z3993 | [1] | HOSE | KOB |
| 30. | 2444T2535 | [1] | HYD CONNECTOR | KOB |
| 31. | ZH42X12016 | [1] | 45 ELBOW,Male, 30 Degree Fl, PF 3/4" x PF 1", O-Ring | KOB |
| 32. | ZX22M12045 | [1] | HOSE,19.05mm ID x 450mm L | KOB450mm Long (17-23/32 in) |
| 33. | ZH32X12000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 3/4" x PF 3/4", O-Ring | KOBElbow, 90° -- 3/4 PF (Incls. O-Ring 237-6012) |
| 34. | 2444R949D4 | [2] | FLEXIBLE HOSE | KOB |
| 35. | 2418T22217 | [1] | TUBE | KOB |
| 36. | 2418T22216 | [1] | TUBE | KOB |
| 37. | ZA33F15008 | [2] | ELBOW | KOB |
| 38. | ZD12P01800 | [2] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 39. | ZS13C12025 | [1] | SCREW | KOBM12x1.75x25mm Superseded by part number: ZS18C12025 |
