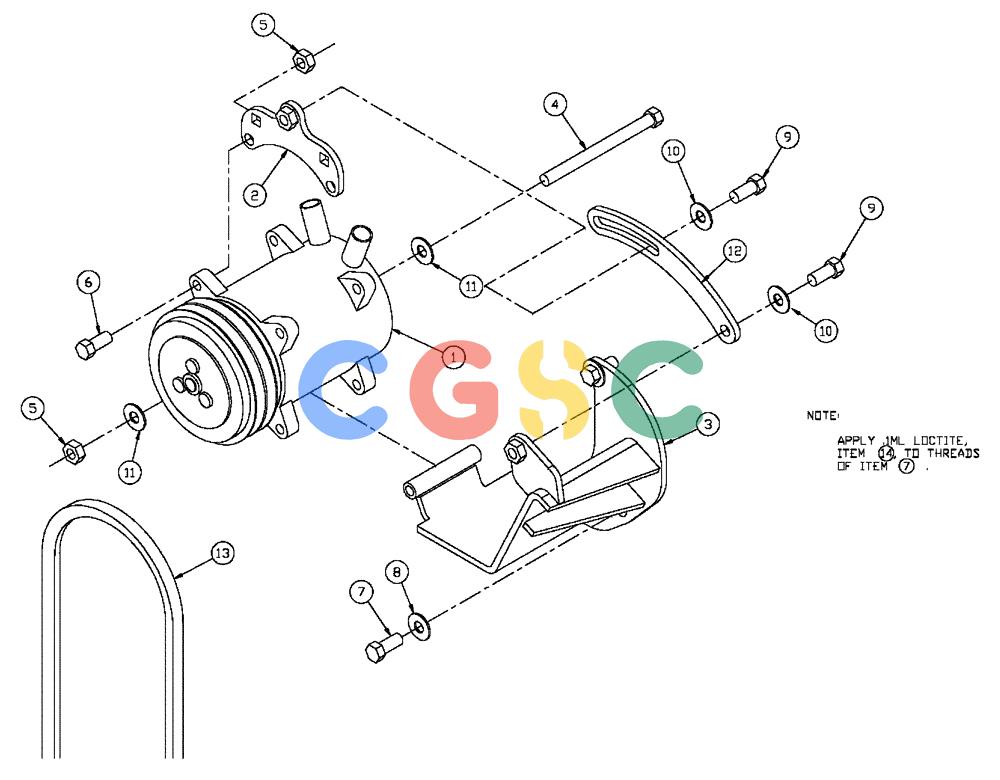

凯斯零件查询(FLX3300B) - FLOATER - 1999 (12/99-9/02) (02-061) - A\C COMPRESSOR GROUP (FLX3300B CAT ENGINE & FLX3330B) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
174 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN2450312
|
[1] |
AIRCOND. COMPRESSOR,W/ Pulley
|
BN
A/C SD-709
|
| 2. |
BN319194
|
[1] |
MOUNTING PLATE
|
BN
A/C
|
| 3. |
BN319175
|
[1] |
MOUNTING PLATE
|
BN
A/C Engine
|
| 4. |
BN55356
|
[1] |
BOLT
|
BN
3/8-16 X 5, HH, G8
|
| 5. |
BN315825
|
[3] |
LOCK NUT
|
BN
3/8-16, NLN, G8 Superseded by part number: 86625064
|
| 6. |
BN50369
|
[2] |
3/8-16 X 1.5, HH, G8
|
|
| 7. |
BN50666
|
[2] |
7/16-14 X 1, HH, G5
|
|
| 8. |
86637952
|
[2] |
WASHER,0.47" ID x 0.92" OD x 0.07" Thk
|
FAR
0.469 x 0.922 x 0.065, Hardened
|
| 9. |
BN301045
|
[2] |
BOLT,Hex, M10 x 25, 10.9, Full Thd
|
BN
Superseded by part number: 11106231
|
| 10. |
BN300499
|
[2] |
WASHER,M10, 10.9
|
BN
Superseded by part number: 896-11010
|
| 11. |
BN300175
|
[2] |
WASHER
|
BN
3/8", G8
|
| 12. |
BN319173
|
[1] |
SLIDE
|
BN
A/C COMP. ADJ.
|
| 13. |
BN319368
|
[1] |
BELT
|
BN
|
| 14. |
BN54038
|
[1] |
ADHESIVE
|
BN
Loctite - 50 ML Bottle #262
|
