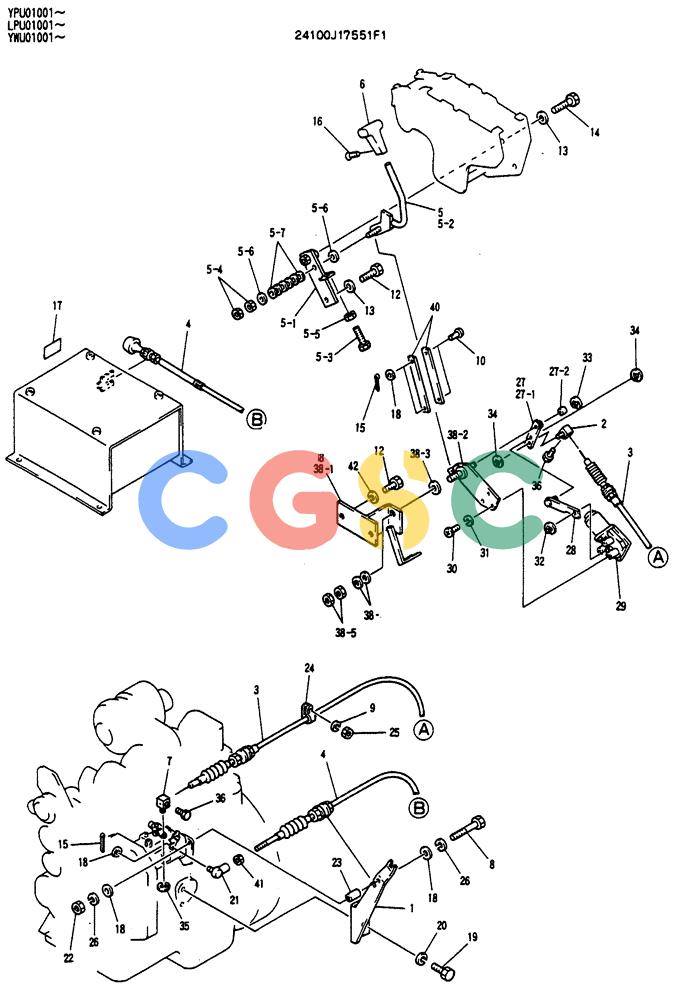

神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (05-008) - THROTTLE CONTROL ASSY (24100J17551F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
1004 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J17551F1 | [1] | CONTROL ASSY, ENGINE (THROTTLE) | |
| 1. | 2416P20770 | [1] | BRACKET | KOB |
| 2. | PU11M01003P1 | [1] | PIN | KOB |
| 3. | 2406U565 | [1] | FLEXIBLE CONTROL | KOBCABLE, CONTROL |
| 5. | 24100P4519F1 | [1] | LEVER | KOBASSY ,THROTTLE |
| 5-1. | 2416P20769 | [1] | BRACKET | KOB |
| 5-2. | 2406N1785 | [1] | LEVER N/A | LEVER N/A |
| 5-3. | 2420T8007D1 | [1] | CAPSCREW | KOBSCREW M08x1.25x45mm |
| 5-4. | ZN18C12010 | [2] | NUT | KOBM12x1.75mm |
| 5-5. | ZN18C08007 | [1] | NUT | KOBM08x1.25mm |
| 5-6. | ZW13H12000 | [2] | WASHER | KOB(M12) |
| 5-7. | R16T0137D2 | [6] | WASHER | KOBCone Disk Spring -- ID 12.2 x OD 25 x Th 1.6mm |
| 6. | YN51M01004P2 | [1] | GRIP | KOB |
| 7. | 2419T7776 | [1] | PIN | KOB |
| 8. | ZS18C06055 | [1] | SCREW,Hex, M6 x 55mm | KOBM06x1.0x55mm |
| 9. | ZW26X08000 | [1] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 10. | ZP45X06018 | [2] | PIN | KOBOD 06 x 18mm Long |
| 12. | ZS18C10025 | [3] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 13. | ZW16X10000 | [2] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 14. | ZS18C10045 | [1] | SCREW,Hex, M10 x 45mm | KOBM10x1.50x45mm |
| 15. | 2419R9D1 | [3] | COTTER PIN | KOBOD 06mm x 21.2mm Long |
| 16. | YN17M01031D1 | [1] | SCREW | KOBMACHINE |
| 17. | 2432T4615 | [1] | LABEL | KOBDecal -- 45x45mm Red triangle |
| 18. | ZW16X06000 | [5] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 19. | ZS18C12025 | [1] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 20. | ZW26X12000 | [1] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 21. | 2420R1142 | [1] | ROD | KOBM05x0.8x30mm Long |
| 22. | ZN18C06005 | [1] | NUT | KOBM06x1.0mm |
| 23. | 2418T26938 | [1] | TUBE | KOB |
| 24. | 2432R225D3 | [1] | CLAMP | KOBSingle -- ID 10 x 35.8mm Long Superseded by part number: ZC46X10009 |
| 25. | ZN18C08007 | [1] | NUT | KOBM08x1.25mm |
| 26. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 27. | 24100T937F1 | [1] | LEVER | KOB |
| 27-1. | 2406P5725 | [1] | LEVER | |
| 27-2. | 2405R312D1215 | [1] | BUSHING | KOB Superseded by part number: 2405R61D2 |
| 28. | PY11M01018P1 | [1] | ROD | KOB |
| 29. | 2441U1011 | [1] | MOTOR | KOB |
| 30. | ZS31C05016 | [3] | BOLT,Phillips Drive, Pan HD, M5 x 16mm | KOBM05x0.8x16mm |
| 31. | ZW26X05000 | [3] | LOCK WASHER | KOBLock -- ID 05 x OD 09 x Th 1.3mm |
| 32. | ZR36X00700 | [1] | RING | KOBE-Ring -- Shaft 07mm x OD 14mm |
| 33. | ZR36X00900 | [1] | SNAP RING | KOBE-Ring -- Shaft 09mm x OD 18mm Superseded by part number: 86979020 |
| 34. | ZR36X00600 | [2] | SNAP RING | KOBE-Ring -- Shaft 06mm x OD 12mm |
| 35. | ZR36X00500 | [1] | SNAP RING | KOBE-Ring -- Shaft 05mm x OD 11mm Superseded by part number: 800-436 |
| 36. | 2420Z1297D1 | [2] | SCREW | KOBCAP |
| 38. | 24100P4525F1 | [1] | LEVER | KOBASSY, THROTLE |
| 38-1. | 2416P20915 | [1] | BRACKET | |
| 38-2. | 2416P20774 | [1] | BRACKET | |
| 38-3. | ZW16X18000 | [2] | WASHER | KOBID 18 x OD 34 x Th 3.2mm |
| 38-4. | PN03M01009D2 | [2] | WASHER | KOB |
| 38-5. | PU11M01006P1 | [2] | NUT | KOBNUT Superseded by part number: PV11M01011P1 |
| 40. | 2418T27062 | [2] | PLATE | KOB |
| 41. | ZN18C05004 | [1] | NUT | KOBM05x0.8mm |
| 42. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
