神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (05-014[02]) - CONTROLLER ASSY (24100J17277F4) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
842 次

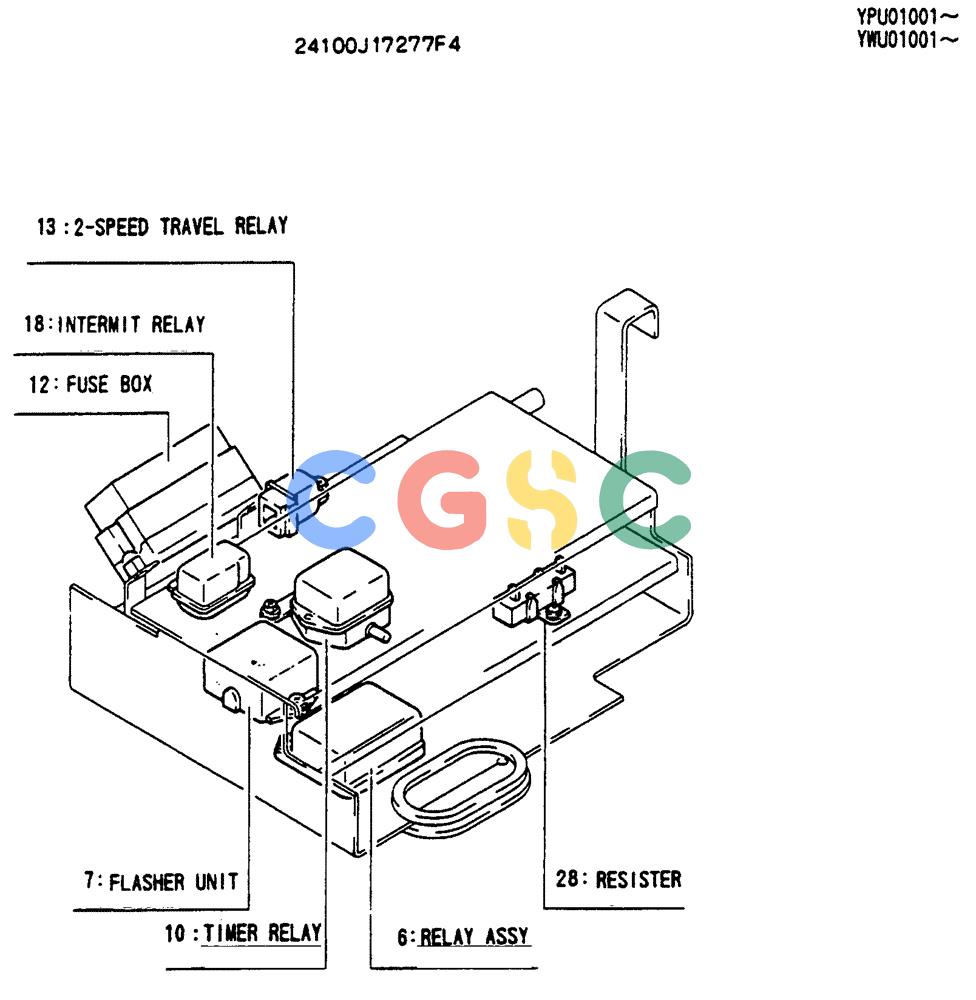

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J17277F4 | [1] | CONTROLLER ASSY | |
| 1. | 2414N5501 | [1] | BOX | KOB |
| 2. | 2418P31020 | [1] | PLATE | KOB |
| 3. | 2418P31019 | [1] | PLATE | KOB |
| 4. | 2420R1141 | [1] | SHEET | KOB Superseded by part number: 2420R1162 |
| 6. | YN24E00001F1 | [1] | SPARE PART | HIT Superseded by part number: YN24E00001F2 |
| 7. | 2480U306 | [1] | FLASHER UNIT | KOB |
| 10. | 2479U1447 | [1] | RELAY,24V, 4 Sec Delay | KOBTIMER |
| 12. | 2487U41F1 | [1] | FUSE BOX | KOB |
| 13. | YN24S00001P1 | [1] | RELAY,24V, 10 Amp | KOB(2-SPEED TRAVEL) |
| 18. | 2479R1366 | [1] | RELAY | KOB(WIPER) |
| 19. | 2420Z1188 | [1] | GROMMET | KOB |
| 20. | 2420R1091D1 | [1] | BOLT | KOB Superseded by part number: ZM46C04016 |
| 21. | YR17M01022D1 | [10] | SCREW | KOB Superseded by part number: ZM66C06016 |
| 22. | YR17M01022D2 | [8] | SCREW | KOB Superseded by part number: ZM66C06020 |
| 24. | ZW16X06000 | [6] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 27. | 24100J17121F1 | [1] | WIRE HARNESS | KOBREF:06-003 |
| 28. | 2484R166D2 | [1] | RESISTOR,51 Ohm | KOB Superseded by part number: 2484R166D5 |
