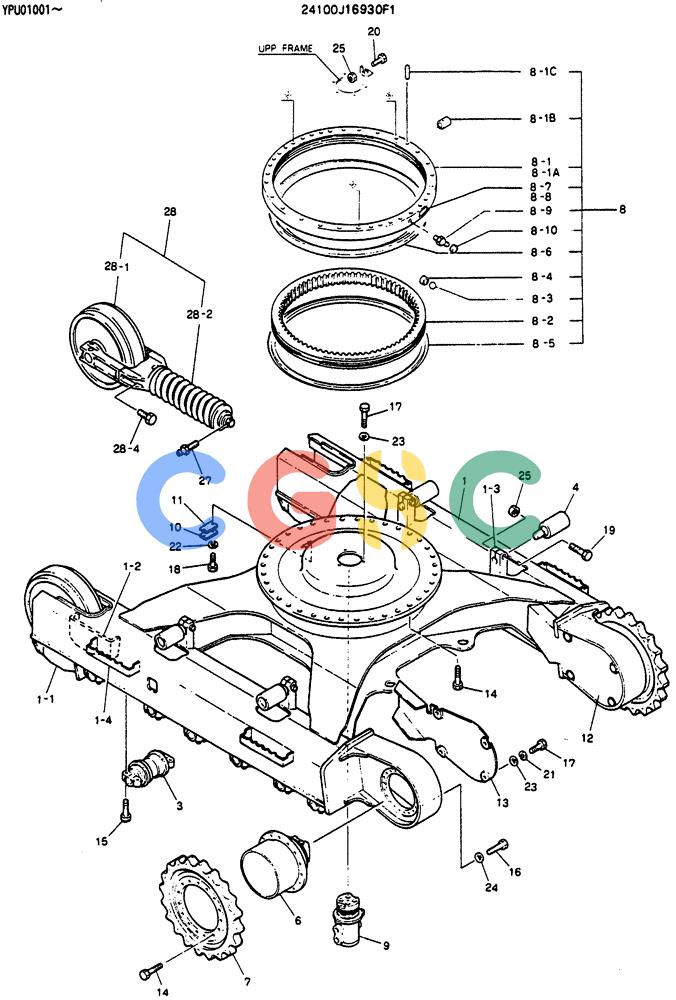

神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (07-002) - LOWER INSTALLATION (24100J16930F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
847 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J16930F1 | [1] | LOW INSTAL | |
| 1. | LP02FU0001P1 | [1] | FRAME, LOW | FRAME, LOW |
| 1-1. | LP07FU1001P1 | [2] | GUIDE | KOB |
| 1-2. | LP07FU1002P1 | [2] | GUIDE | KOB |
| 1-3. | 2416T23348 | [4] | SUPPORT | KOB |
| 1-4. | 2429T359 | [4] | STEP | KOB |
| 3. | 24100N6505F1 | [14] | ROLLER | KOBASSY (LOW), FF:07-004 |
| 4. | 24100N6506F1 | [4] | ROLLER | KOBASSY (UPP), FF:07-005 Superseded by part number: YY64D01005F1 |
| 6. | LP15V00001F1 | [2] | HYDRAULIC MOTOR | KOBASSY, FF:SEE(CP.M) Superseded by part number: LP15V00001F2 |
| 7. | 2404N416 | [2] | DRIVING SPROCKET | KOB Superseded by part number: 2404N271 |
| 8. | 24100N7529F1 | [1] | RING | KOBSlewing Assembly, Incls. Refs. 8-1 - 8-10, Service Replacement |
| 8-1. | 2425N373F1 | [1] | RACE | KOBOuter |
| 8-1A. | NA | [1] | NOT SERVICED | FORRace, Outer |
| 8-1B. | 2420T4543D2 | [1] | PLUG | KOB |
| 8-1C. | 2419T1964D7 | [1] | PIN,10mm OD x 56mm L | KOBTaper -- OD 10 x 56mm Long |
| 8-2. | 2401N443 | [1] | RACE | KOBInner |
| 8-3. | 2425T321 | [108] | BALL | KOBØ25.4mm (1 in) Steel |
| 8-4. | 2425T322 | [108] | RETAINER | KOB |
| 8-5. | 2445P165D6 | [1] | SEAL | KOB Superseded by part number: YN40F01024D4 |
| 8-6. | 2445P165D5 | [1] | SEAL | KOB Superseded by part number: YN40F01024D4 |
| 8-7. | 2432T1265 | [1] | LABEL | KOBName Plate Superseded by part number: YN22T00191P1 |
| 8-8. | 4020Z64 | [2] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 8-9. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 8-10. | 2414Z307 | [1] | CAP | KOB |
| 9. | 24100U1524F1 | [1] | FLEXIBLE JOINT | KOBHYDRAULIC SWIVEL JOINT ASSY, FF:SEE(CP.M) |
| 10. | 2422T556 | [1] | PLATE | KOB90x50x Th 06mm |
| 11. | 2418T12274 | [1] | PACKING | KOB90x50x Th 05mm -- Rubber |
| 12. | 2414N4360D1 | [1] | COVER | KOBASSY |
| 13. | 2414N4360D2 | [1] | COVER | KOBASSY |
| 14. | ZS13C16045 | [66] | SCREW | KOBScrew -- M16x2.0x45mm |
| 15. | ZS13C16065 | [56] | SCREW | KOBM16x2.0x65mm |
| 16. | ZS13C16050 | [40] | SCREW | KOBM16x2.0x50mm |
| 17. | ZS13C12025 | [13] | SCREW | KOBM12x1.75x25mm Superseded by part number: ZS18C12025 |
| 18. | ZS13C10014 | [2] | SCREW | KOBM10x1.50x14mm Superseded by part number: ZS18C10014 |
| 19. | ZS13C16090 | [4] | CAPSCREW | KOBSCREW M16x2.0x90mm |
| 20. | ZS13C16110 | [1] | SCREW | KOBM16x2.0x110mm |
| 21. | ZW22X12000 | [10] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 22. | ZW22X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 23. | ZW11X12000 | [13] | WASHER | KOBID 12 x OD 24 x Th 2.3mm Superseded by part number: ZW16X12000 |
| 24. | ZW13H16000 | [40] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 25. | ZN13C16013 | [5] | NUT | KOBM16x2.0mm |
| 27. | 2444P803 | [2] | LUBE NIPPLE,5/8" - 18 x 64mm L, 19mm Hex | KOB5/8" - 18 UNF, Straight |
| 28. | 24100P4412F1 | [2] | WHEEL ASSY | KOBIDLER ASSY, CLAWLER |
| 28-1. | 24100N6504F1 | [1] | IDLER | KOBASSY, REF:07-003 |
| 28-2. | LP54D00001F1 | [1] | SPRING | KOBREF:07-005 |
| 28-4. | ZS13C12035 | [2] | CAPSCREW | KOBSCREW M12x1.75x35mm Superseded by part number: ZS18C12035 |
| . . | 2445P114D7 | [1] | SEAL KIT | KOBKit -- Contains Items 8-5 & 8-6 Superseded by part number: YN40F01024D4 |
