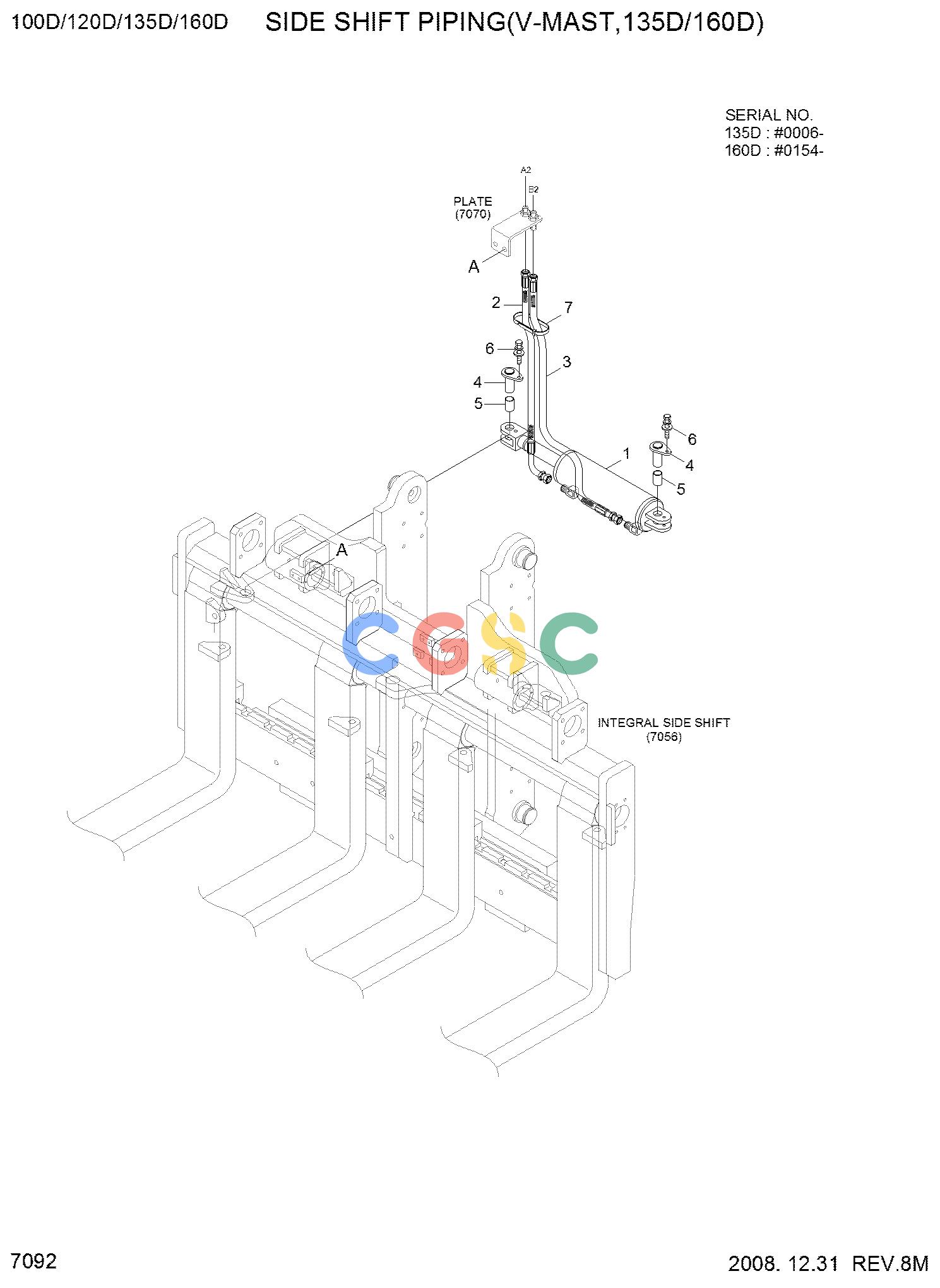

现代零件查询110/130/140/160D-7E SIDE SHIFT PIPING(V-MAST)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
331 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| N . |
35FT-90100
|
[1] |
SIDE SHIFT PIPING GROUP
|
|
| N . |
34FT-90100
|
[1] |
SIDE SHIFT PIPING GROUP
|
|
| 1. |
34FT-07600
|
[1] |
SIDE SHIFT CYLINDER
|
|
| 1-1. |
XKCD-03345
|
[1] |
SEAL KIT
|
|
| 2. |
P930-064008
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 2. |
P930-064007
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 3. |
P910-064015
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 3. |
P910-064014
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 4. |
34FT-90140
|
[2] |
PIN
|
|
| 5. |
S731-045035
|
[2] |
BUSHING-DU
|
|
| 6. |
S037-102526
|
[2] |
BOLT-W/WASHER
|
|
| 7. |
S552-050203
|
[2] |
CLAMP-BAND
|
|
