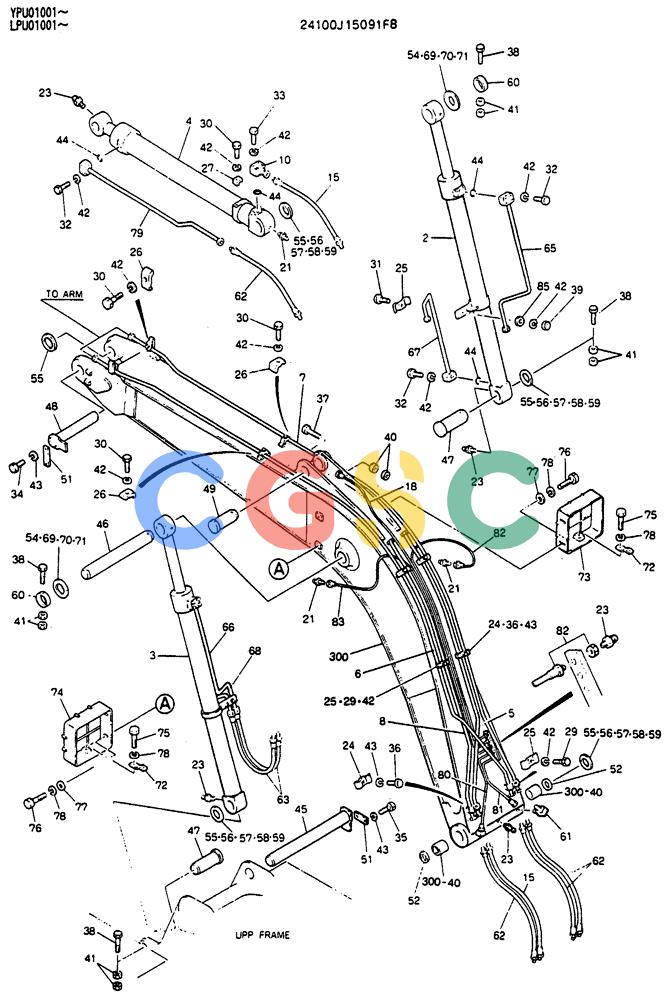

| . . | 24100J15091F8 | [1] | BOOM ASSY, 4.6M (15 FT-1 INCH) (EXTRA) | |
| 2. | 2438U1133F1 | [1] | CYLINDER | KOB Superseded by part number: 2438U1133F1US1 |
| 3. | 2438U1134F1 | [1] | CYLINDER | KOB Superseded by part number: 2438U1134F1US1 |
| 4. | 2438U1132F1 | [1] | CYLINDER | KOB |
| 5. | 2418P26601 | [1] | RIGID TUBE | KOBTUBE Superseded by part number: 2418P22048 |
| 6. | 2418P26602 | [1] | TUBE | KOBTUBE Superseded by part number: 2418P22049 |
| 7. | 2418P26603 | [1] | RIGID TUBE | KOBTUBE Superseded by part number: 2418P22050 |
| 8. | 2418P26604 | [1] | RIGID TUBE | KOBTUBE Superseded by part number: 2418P22497 |
| 10. | 2418P19313 | [1] | RIGID TUBE | KOB |
| 15. | 2444R1177D1 | [2] | FLEXIBLE HOSE | KOB800mm Long (31-1/2 in) |
| 18. | HX21E04250DY | [1] | FLEXIBLE HOSE,6.30mm ID x 2500mm L | KOB |
| 21. | ZH22Z04000 | [3] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 23. | ZG91S02000 | [9] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 24. | 2432T2242 | [3] | CLAMP | KOBDouble -- 106x38x12mm (Ø23xØ29mm) |
| 25. | 2432T2244 | [5] | CLAMP | KOBDouble -- 102x32x12mm (Ø23xØ23mm) |
| 26. | ZC26X22011 | [4] | CLAMP | KOBSingle Line -- 38x29x65mm Long |
| 27. | 2432T1333 | [1] | CLAMP | KOBSingle Block -- 50x30x25mm Superseded by part number: YW43H01049P1 |
| 29. | ZS13C10040 | [4] | SCREW | KOBM10x1.50x40mm Superseded by part number: ZS18C10040 |
| 30. | ZS13C10045 | [5] | SCREW | KOBM10x1.50x45mm Superseded by part number: ZS18C10045 |
| 31. | ZS13C10050 | [2] | SCREW | KOBM10x1.50x50mm Superseded by part number: ZS18C10050 |
| 32. | ZS13C10060 | [20] | SCREW | KOBM10x1.50x60mm Superseded by part number: ZS18C10060 |
| 33. | ZS13C10070 | [4] | SCREW | KOBM10x1.50x70mm Superseded by part number: ZS18C10070 |
| 34. | ZS13C12025 | [2] | SCREW | KOBM12x1.75x25mm Superseded by part number: ZS18C12025 |
| 35. | ZS13C12030 | [2] | CAPSCREW | KOBSCREW M12x1.75x30mm Superseded by part number: ZS18C12030 |
| 36. | ZS13C12045 | [3] | SCREW | KOBM12x1.75x45mm Superseded by part number: ZS18C12045 |
| 37. | 2420T4331D1 | [1] | SCREW,M12 x 1.75 x 125mm | KOBM12x1.75x125mm |
| 38. | 2420T4327D6 | [4] | SCREW,M14 x 125mm | KOB |
| 30. | ZN13C10008 | [2] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 40. | ZN13C12010 | [2] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 41. | ZN13C14011 | [8] | NUT | KOBM14x2.0mm Superseded by part number: ZN18C14011 |
| 42. | ZW22X10000 | [44] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 43. | ZW22X12000 | [7] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 44. | ZD12P02600 | [6] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 45. | 2419T3846 | [1] | PIN | KOB Superseded by part number: 2419T6431 |
| 46. | 2419P1671D1 | [1] | PIN | KOB Superseded by part number: 2419P1699D1 |
| 47. | 2419P1685D1 | [2] | PIN | KOB Superseded by part number: 2419P1694D1 |
| 48. | 2419T6347 | [1] | PIN | KOB |
| 49. | 2419P3229 | [1] | PIN | KOB Superseded by part number: 2419P4370 |
| 51. | 2418T12645D2 | [2] | PLATE | KOB125 x 261 x Th 9.0mm |
| 52. | 2445R138D6 | [2] | SEAL,70mm ID x 85.3mm OD x 4mm Thk | KOBSeal, Dust -- ID 70 x OD 85 x Th 4mm |
| 54. | B16T0442D63 | [2] | SHIM,120mm OD x 77mm ID x 1.6mm Thk | KOBID 77 x OD 120 x Th 1.6mm |
| 55. | B16T0442D57 | [5] | SHIM,72mm ID x 130mm OD x 0.5mm Thk | KOBID 72 x OD 130 x Th 0.5mm |
| 56. | B16T0442D44 | [4] | SHIM,72mm ID x 130mm OD x 0.9mm Thk | KOBID 72 x OD 130 x Th 0.9mm |
| 57. | B16T0442D1 | [4] | SHIM,130mm OD x 72mm ID x 1.2mm Thk | KOBID 72 x OD 130 x Th 1.2mm |
| 58. | B16T0442D2 | [4] | SHIM,130mm OD x 72mm ID x 1.6mm Thk | KOBID 72 x OD 130 x Th 1.6mm |
| 59. | B16T0442D5 | [4] | SHIM,130mm OD x 72mm ID x 2.3mm Thk | KOBID 72 x OD 130 x Th 2.3mm |
| 60. | 2418T12675D1 | [2] | COLLAR CLAMP | KOB |
| 61. | ZH32Z04000 | [2] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| 62. | 2444R1169D2 | [4] | HOSE | KOB800mm Long (31-1/2 in) |
| 63. | 2444R1169D1 | [4] | FLEXIBLE HOSE | KOB700mm Long (27-1/2 in) |
| 65. | 2418P31219D1 | [1] | RIGID TUBE | KOB Superseded by part number: 2418P22974D1 |
| 66. | 2418P31219D2 | [1] | TUBE | KOB |
| 67. | 2418P31220D1 | [1] | RIGID TUBE | KOB |
| 68. | 2418P31220D2 | [1] | RIGID TUBE | KOB |
| 69. | B16T0442D82 | [2] | SHIM,120mm OD x 77mm ID x 0.5mm Thk | KOBID 77 x OD 120 x Th 0.5mm |
| 70. | B16T0442D81 | [2] | SHIM,120mm OD x 77mm ID x 0.9mm Thk | KOBID 77 x OD 120 x Th 0.9mm |
| 71. | B16T0442D80 | [2] | SHIM,120mm OD x 77mm ID x 1.2mm Thk | KOBID 77 x OD 120 x Th 1.2mm |
| 72. | 2416T13218 | [2] | U-BRACKET | KOB |
| 73. | 2414P4100D1 | [1] | COVER | KOB |
| 74. | 2414P4100D2 | [1] | COVER | KOB |
| 75. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 76. | ZS18C10020 | [4] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 77. | ZW16X10000 | [4] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 78. | ZW26X10000 | [6] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 79. | 2418P31218 | [1] | TUBE | KOB Superseded by part number: 2418P22120 |
| 80. | HX21E04070DY | [1] | HOSE,6.30mm ID x 700mm L | KOB |
| 81. | HX21E04065DY | [1] | HOSE,6.30mm ID x 650mm L | KOB |
| 82. | HX21E04190DY | [1] | HOSE,6.30mm ID x 1900mm L | KOB Superseded by part number: 2444R1117D190 |
| 83. | HX21E04200DY | [1] | HOSE,6.30mm ID x 2000mm L | KOB |
| 85. | YW02B01030D3 | [2] | SPACER | KOBID 12.7 x OD 17.3 x 13mm Long |
| 212. | ZX28N08070 | [2] | HOSE | KOB |
| 300. | 2411J5139D5F1 | [1] | ARM | KOBBOOM |
| 300-40. | 2405T1957 | [2] | BUSHING | KOB |
| 300-49. | 2416T10863 | [2] | BLOCK TAPPED | |
| 300-50. | 2416T11067D2 | [4] | BRACKET | |
| 300-51. | 2416T10888D2 | [4] | BLOCK TAPPED | |
| 300-52. | 2416T21262D2 | [1] | SUPPORT | |
| 301. | 2418P20955D1 | [1] | TUBE | KOB |
| 302. | 2418P20955D2 | [1] | TUBE | KOB |
| 303. | 2418P21524D1 | [1] | TUBE | KOB |
| 304. | 2418P21524D2 | [1] | TUBE | KOB |
| 305. | ZA23B15000 | [2] | HYD CONNECTOR | KOB |
| 306. | 2432T1773 | [10] | CLAMP | KOB |
| 307. | 2432T2340 | [1] | CLAMP | KOB |
| 308. | ZS13C08035 | [10] | SCREW | KOBM08x1.25x35mm Superseded by part number: ZS18C08035 |
| 309. | ZW22X08000 | [10] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
