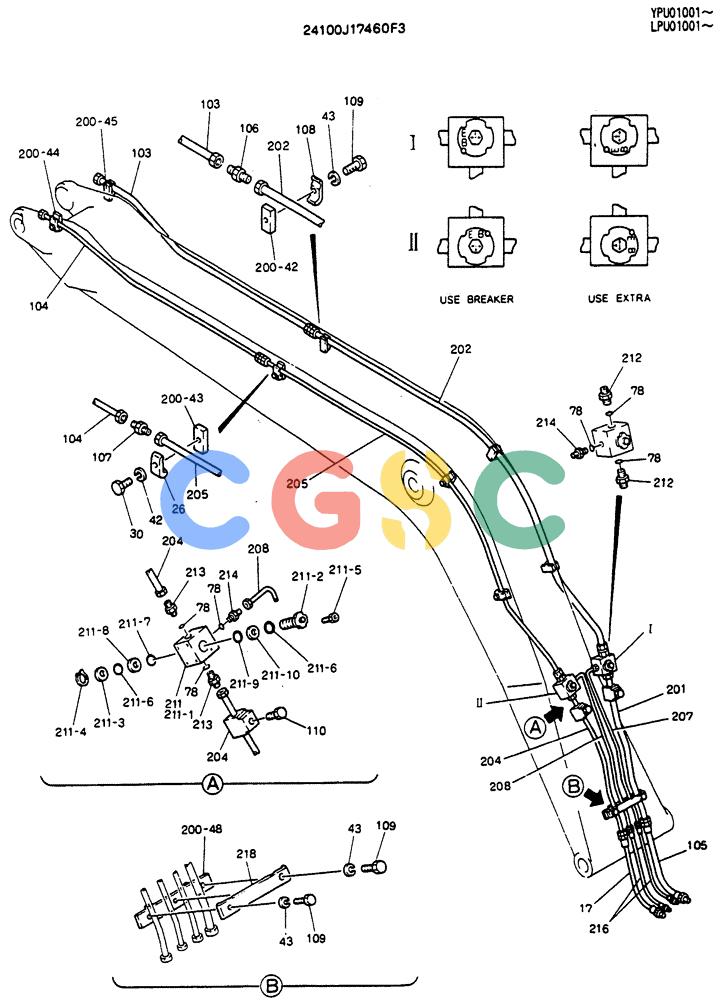

| . . | 24100J17460F3 | [1] | BOOM ASSY, 4.6M (15 FT - 1 INCH) (EXTRA & BREAKER & (BOOM & SAFETY)) | |
| 2. | 2438U1133F1 | [1] | CYLINDER | KOB Superseded by part number: 2438U1133F1US1 |
| 3. | 2438U1134F1 | [1] | CYLINDER | KOB Superseded by part number: 2438U1134F1US1 |
| 4. | 2438U1132F1 | [1] | CYLINDER | KOB |
| 5. | 2418P26601 | [1] | RIGID TUBE | KOBTUBE Superseded by part number: 2418P22048 |
| 6. | 2418P26602 | [1] | TUBE | KOBTUBE Superseded by part number: 2418P22049 |
| 7. | 2418P26603 | [1] | RIGID TUBE | KOBTUBE Superseded by part number: 2418P22050 |
| 8. | 2418P26604 | [1] | RIGID TUBE | KOBTUBE Superseded by part number: 2418P22497 |
| 9. | 2418P31218 | [1] | TUBE | KOB Superseded by part number: 2418P22120 |
| 10. | 2418P19313 | [1] | RIGID TUBE | KOB |
| 11. | 2418P31219D2 | [1] | TUBE | KOB |
| 12. | 2418P31219D1 | [1] | RIGID TUBE | KOB Superseded by part number: 2418P22974D1 |
| 15. | 2444R1177D1 | [2] | FLEXIBLE HOSE | KOB800mm Long (31-1/2 in) |
| 16. | 2444R1169D2 | [4] | HOSE | KOB800mm Long (31-1/2 in) |
| 17. | 2444R1169D1 | [5] | FLEXIBLE HOSE | KOB700mm Long (27-1/2 in) |
| 18. | HX21E04250DY | [1] | FLEXIBLE HOSE,6.30mm ID x 2500mm L | KOB |
| 19. | HX21E04190DY | [1] | HOSE,6.30mm ID x 1900mm L | KOB Superseded by part number: 2444R1117D190 |
| 20. | HX21E04065DY | [1] | HOSE,6.30mm ID x 650mm L | KOB |
| 21. | ZH22Z04000 | [3] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 22. | HX21E04200DY | [1] | HOSE,6.30mm ID x 2000mm L | KOB |
| 23. | ZG91S02000 | [9] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 24. | 2432T2242 | [3] | CLAMP | KOBDouble -- 106x38x12mm (Ø23xØ29mm) |
| 25. | 2432T2244 | [5] | CLAMP | KOBDouble -- 102x32x12mm (Ø23xØ23mm) |
| 26. | ZC26X22011 | [8] | CLAMP | KOBSingle Line -- 38x29x65mm Long |
| 27. | 2432T1333 | [1] | CLAMP | KOBSingle Block -- 50x30x25mm Superseded by part number: YW43H01049P1 |
| 28. | HX21E04070DY | [1] | HOSE,6.30mm ID x 700mm L | KOB |
| 29. | ZS13C10040 | [3] | SCREW | KOBM10x1.50x40mm Superseded by part number: ZS18C10040 |
| 30. | ZS13C10045 | [11] | SCREW | KOBM10x1.50x45mm Superseded by part number: ZS18C10045 |
| 31. | ZS13C10050 | [10] | SCREW | KOBM10x1.50x50mm Superseded by part number: ZS18C10050 |
| 32. | ZS13C10060 | [12] | SCREW | KOBM10x1.50x60mm Superseded by part number: ZS18C10060 |
| 33. | ZS13C10070 | [4] | SCREW | KOBM10x1.50x70mm Superseded by part number: ZS18C10070 |
| 34. | ZS13C12025 | [2] | SCREW | KOBM12x1.75x25mm Superseded by part number: ZS18C12025 |
| 35. | ZS13C12030 | [2] | CAPSCREW | KOBSCREW M12x1.75x30mm Superseded by part number: ZS18C12030 |
| 36. | ZS13C12045 | [3] | SCREW | KOBM12x1.75x45mm Superseded by part number: ZS18C12045 |
| 37. | 2420T4331D1 | [1] | SCREW,M12 x 1.75 x 125mm | KOBM12x1.75x125mm |
| 38. | 2420T4327D6 | [4] | SCREW,M14 x 125mm | KOB |
| 39. | ZN13C10008 | [2] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 40. | ZN13C12010 | [2] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 41. | ZN13C14011 | [8] | NUT | KOBM14x2.0mm Superseded by part number: ZN18C14011 |
| 42. | ZW22X10000 | [40] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 43. | ZW22X12000 | [13] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 44. | ZD12P02600 | [6] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 48. | 2419T6347 | [1] | PIN | KOB |
| 51. | 2418T12645D2 | [2] | PLATE | KOB125 x 261 x Th 9.0mm |
| 52. | 2445R138D6 | [2] | SEAL,70mm ID x 85.3mm OD x 4mm Thk | KOBSeal, Dust -- ID 70 x OD 85 x Th 4mm |
| 54. | B16T0442D63 | [2] | SHIM,120mm OD x 77mm ID x 1.6mm Thk | KOBID 77 x OD 120 x Th 1.6mm |
| 55. | B16T0442D57 | [5] | SHIM,72mm ID x 130mm OD x 0.5mm Thk | KOBID 72 x OD 130 x Th 0.5mm |
| 56. | B16T0442D44 | [4] | SHIM,72mm ID x 130mm OD x 0.9mm Thk | KOBID 72 x OD 130 x Th 0.9mm |
| 57. | B16T0442D1 | [4] | SHIM,130mm OD x 72mm ID x 1.2mm Thk | KOBID 72 x OD 130 x Th 1.2mm |
| 58. | B16T0442D2 | [4] | SHIM,130mm OD x 72mm ID x 1.6mm Thk | KOBID 72 x OD 130 x Th 1.6mm |
| 59. | B16T0442D5 | [4] | SHIM,130mm OD x 72mm ID x 2.3mm Thk | KOBID 72 x OD 130 x Th 2.3mm |
| 60. | 2418T12675D1 | [2] | COLLAR CLAMP | KOB |
| 61. | ZH32Z04000 | [2] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| 62. | 2418T22137 | [1] | RIGID TUBE | KOB |
| 63. | 2418T22138 | [1] | RIGID TUBE | KOB |
| 64. | 2418T22139 | [1] | RIGID TUBE | KOB |
| 65. | 2418T22140 | [1] | RIGID TUBE | KOB |
| 66. | 2418T22141 | [1] | RIGID TUBE | KOB |
| 67. | 2418T22142 | [1] | RIGID TUBE | KOB |
| 68. | 2436R775F3 | [2] | VALVE | KOBASSY |
| 69. | 2444R1133D1 | [4] | FLEXIBLE HOSE | KOB |
| 70. | 2444R1102D5 | [1] | FLEXIBLE HOSE | KOB |
| 71. | ZA23H10004 | [1] | HYD CONNECTOR | KOB |
| 72. | ZA23F15006 | [4] | HYD CONNECTOR | KOB3/8"PF - M22x1.50 x 37mm Long (No O-Ring supplied) |
| 73. | ZA33B10000 | [1] | ELBOW | KOB |
| 74. | ZA33F10004 | [1] | ELBOW | KOB |
| 75. | ZA33F22012 | [2] | ELBOW | KOB |
| 76. | ZD12P01100 | [2] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 77. | ZD12P01400 | [4] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 78. | ZD12P02400 | [8] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 79. | 2416P8664 | [1] | SUPPORT | KOB |
| 80. | 2416P8663 | [1] | FLANGE | KOB |
| 81. | 2432T2340 | [2] | CLAMP | KOB |
| 82. | 2432Z290 | [8] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 85. | B16T0442D82 | [2] | SHIM,120mm OD x 77mm ID x 0.5mm Thk | KOBID 77 x OD 120 x Th 0.5mm |
| 86. | B16T0442D81 | [2] | SHIM,120mm OD x 77mm ID x 0.9mm Thk | KOBID 77 x OD 120 x Th 0.9mm |
| 87. | B16T0442D80 | [2] | SHIM,120mm OD x 77mm ID x 1.2mm Thk | KOBID 77 x OD 120 x Th 1.2mm |
| 88. | 2414P4100D1 | [1] | COVER | KOB |
| 89. | 2414P4100D2 | [1] | COVER | KOB |
| 90. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 91. | ZS18C10020 | [4] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 92. | ZW16X10000 | [4] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 93. | ZW26X10000 | [6] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 94. | 2416T13218 | [2] | U-BRACKET | KOB |
| 96. | 2419T3846 | [1] | PIN | KOB Superseded by part number: 2419T6431 |
| 97. | 2419P1671D1 | [1] | PIN | KOB Superseded by part number: 2419P1699D1 |
| 98. | 2419P1685D1 | [2] | PIN | KOB Superseded by part number: 2419P1694D1 |
| 99. | 2419P3229 | [1] | PIN | KOB Superseded by part number: 2419P4370 |
| 103. | 2418T17926 | [1] | TUBE | KOB |
| 104. | 2418T17925 | [1] | RIGID TUBE | KOB |
| 105. | 2444R994D2 | [1] | HOSE | KOB |
| 106. | ZA23B28000 | [1] | CONNECTION | KOBM36x1.50x43mm Long |
| 107. | ZA23B22000 | [1] | HYD CONNECTOR | KOBM30x1.50x38mm Long |
| 108. | ZC26X28014 | [4] | CLAMP | KOBSingle Line -- 75x37x38mm (Ø28mm) |
| 109. | ZS13C12055 | [6] | SCREW | KOBM12x1.75x55mm Superseded by part number: ZS18C12055 |
| 110. | 2420Z985 | [2] | PLUG | KOB |
| 200. | 2411J5139D4F1 | [1] | BOOM | |
| 200-40. | 2405T1957 | [2] | BUSHING | KOB |
| 200-42. | 2416T12924D2 | [3] | BLOCK | KOB |
| 200-43. | 2416T12924D1 | [3] | BLOCK | KOB |
| 200-44. | 2416T13011 | [1] | BLOCK | KOB |
| 200-45. | 2416T13009 | [1] | BLOCK | KOB |
| 200-48. | 2416T24893 | [1] | BLOCK,TAPPED | |
| 201. | 2418P24278 | [1] | TUBE | KOB |
| 202. | 2418P24280 | [1] | TUBE | TUBE |
| 204. | 2418P24279 | [1] | TUBE | |
| 205. | 2418P24281 | [1] | TUBE | TUBE |
| 207. | 2418P20991 | [1] | TUBE | KOB |
| 208. | 2418P20992 | [1] | TUBE | TUBE |
| 211. | 24100P1005F1 | [2] | VALVE | KOB Superseded by part number: 24100P1005F3 |
| 211-1. | 2436P229 | [1] | VALVE BODY | KOB |
| 211-2. | 2436T303 | [1] | VALVE | KOB |
| 211-3. | 2418T8945D1 | [1] | SPACER | KOBID 40 x OD 60 x Th 3.2mm |
| 211-4. | ZR16X04000 | [1] | RING | KOBRetaining -- ID 37 x OD 40 x Th 1.8mm |
| 211-5. | ZS23C06010 | [1] | SCREW,Hex Socket Head, M6 x 10mm | KOBM06x1.0x10mm |
| 211-6. | ZD11G04000 | [2] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 211-7. | ZD12G04000 | [1] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 211-8. | ZD75G04000 | [1] | BACK-UP RING | KOBID 40 x OD 45 x Th 1.25mm |
| 211-9. | ZD12G03500 | [1] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 211-10. | ZD85G03500 | [1] | RING | KOBBack-Up -- ID 35 x OD 40 x Th 1.25mm |
| 212. | ZA23F28012 | [2] | HYD CONNECTOR | KOB |
| 213. | ZA23F22012 | [2] | HYD CONNECTOR | KOB3/4"PF - M30x1.50 x 46mm Long |
| 214. | 2444Z2236 | [2] | HYD CONNECTOR | KOB |
| 216. | ZX28N08070 | [2] | HOSE | KOB |
| 218. | 2432T4223 | [1] | CLAMP | |
