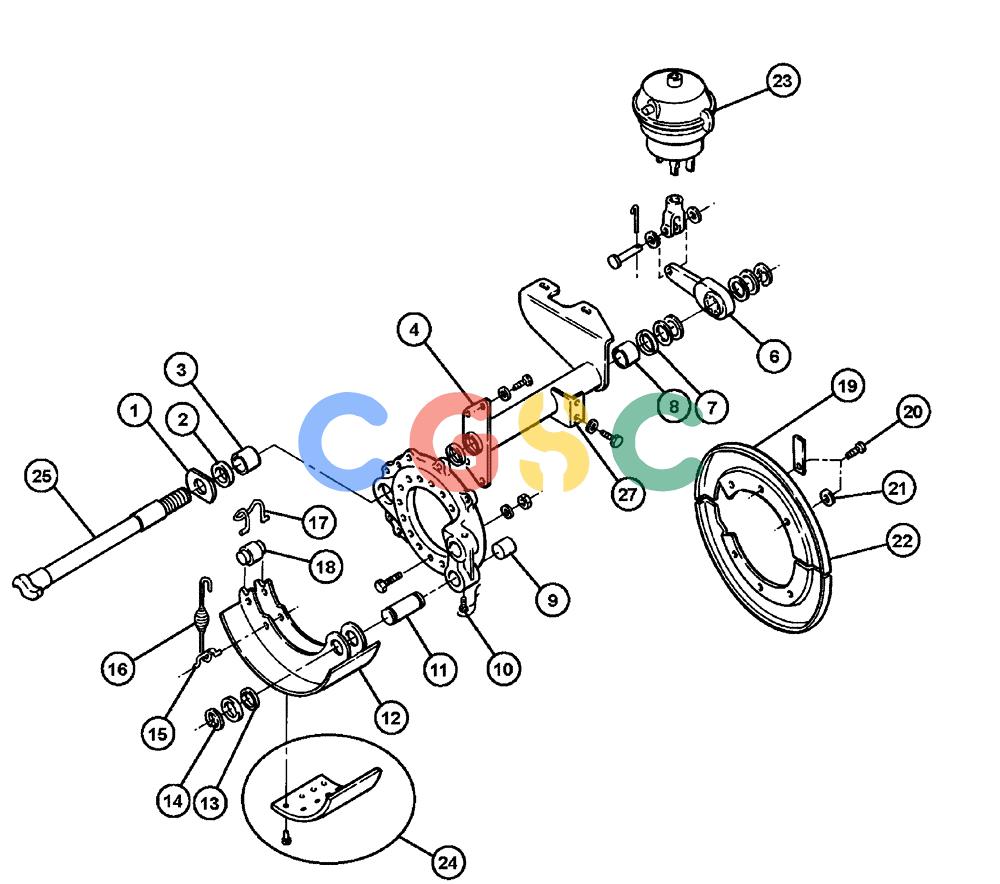

凯斯零件查询(FLX3300B) - FLOATER - 2002 (9/02-10/03) (04-005) - REAR AXLE BRAKE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
460 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN2452319
|
[1] |
WASHER
|
BN
1229-6-844
|
| 2. |
BN2451938
|
[1] |
SEAL
|
BN
A-1205-V-1556 Superseded by part number: 84175120
|
| 3. |
BN2450232
|
[1] |
BUSHING
|
BN
1225-L-1208 Superseded by part number: 84175112
|
| 4. |
87266623
|
[1] |
BRACKET
|
BN
Brake Chamber LH Superseded by part number: 84175132
|
| 4A. |
87266622
|
[1] |
BRACKET
|
BN
Brake Chamber RH Superseded by part number: 84175130
|
| 6. |
87266625
|
[1] |
ADJUSTER
|
BN
Slack RH Superseded by part number: 84175341
|
| 6A. |
87266624
|
[1] |
ADJUSTER
|
BN
Slack LH Superseded by part number: 84175341
|
| 9. |
84175114
|
[1] |
BUSHING
|
BN
Anchor Pin
|
| 10. |
BN2451942
|
[1] |
SET SCREW
|
BN
S-266-D2
|
| 11. |
BN2451614
|
[1] |
PIN
|
BN
1259-Q-251
|
| 12. |
BN2393245
|
[1] |
BRAKE SHOE
|
BN
W/Lining A9837 Superseded by part number: 84175322
|
| 13. |
BN2451943
|
[1] |
SEAL
|
BN
Felt Pin, Brake Shoe
|
| 14. |
BN2451806
|
[1] |
RETAINER
|
BN
Pin, Brake Shoe Anchor
|
| 15. |
84181462
|
[1] |
PIN
|
BN
Spring
|
| 16. |
BN2451945
|
[1] |
SPRING
|
BN
Return, Brake Shoe
|
| 17. |
BN2451807
|
[1] |
RETAINER
|
BN
1718-Y-103
|
| 18. |
BN2451808
|
[1] |
ROLLER
|
BN
1779-R-18
|
| 19. |
BN2451946
|
[1] |
SHIELD
|
BN
Dust LH Up & RH Lo Superseded by part number: 84175361
|
| 20. |
BN2450237
|
[1] |
BOLT
|
BN
Dust Shield S-264-1
|
| 22. |
BN2451947
|
[1] |
SHIELD
|
BN
Dust RH Up & LH Lo Superseded by part number: 84175362
|
| 23. |
BN2399367
|
[1] |
BRAKE
|
TYR
MGM Brake #3436078
|
| 24. |
BN2390129-018
|
[1] |
SET OF BRAKE LININGS
|
BN
Lining
|
| 25. |
BN307998
|
[1] |
CAMSHAFT
|
BN
Brake, RH
|
| 26. |
BN307999
|
[1] |
CAMSHAFT
|
BN
Brake, LH
|
| 27. |
84169494
|
[1] |
CLAMP
|
BN
Brake Chamber
|
