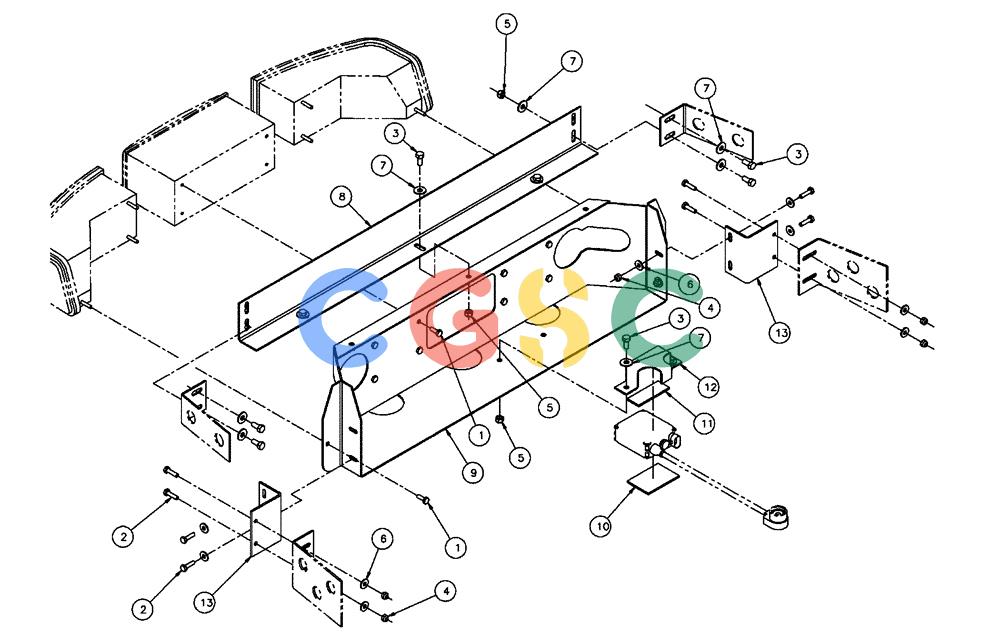

凯斯零件查询(FLX3300B) - FLOATER - 2002 (9/02-10/03) (04-017) - LIGHTS ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
396 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
281-54712
|
[10] |
SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"
|
CAS
Superseded by part number: 87343659
|
| 2. |
614-6025
|
[8] |
BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 86977786
|
| 3. |
120104
|
[9] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 4. |
353308
|
[8] |
NUT,M6 x 1.0, Cl 8
|
NH
|
| 5. |
86528579
|
[9] |
NUT,M8 x 1.25
|
WIN
|
| 6. |
BN300488
|
[12] |
WASHER
|
BN
M6, Flat, 8.8 Superseded by part number: 87529302
|
| 7. |
86624185
|
[13] |
WASHER,8.8mm ID x 17.5mm OD x 2mm Thk
|
FOR
|
| 8. |
BN317160
|
[1] |
BRACKET
|
TYR
Headlight
|
| 9. |
BN317161
|
[1] |
MOUNTING PLATE
|
BN
Weldment, Headlight
|
| 10. |
333643A1
|
[1] |
GASKET
|
CAS
foam HID ballast
|
| 11. |
333644A1
|
[1] |
GASKET
|
CAS
foam HID ballast hold down
|
| 12. |
333645A1
|
[1] |
CLAMP
|
CAS
HID ballast hold down
|
| 13. |
BN315949
|
[2] |
MOUNTING PLATE
|
BN
Light Assembly To Hood
|
