神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (08-016) - BUCKET ASSY STD Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
637 次

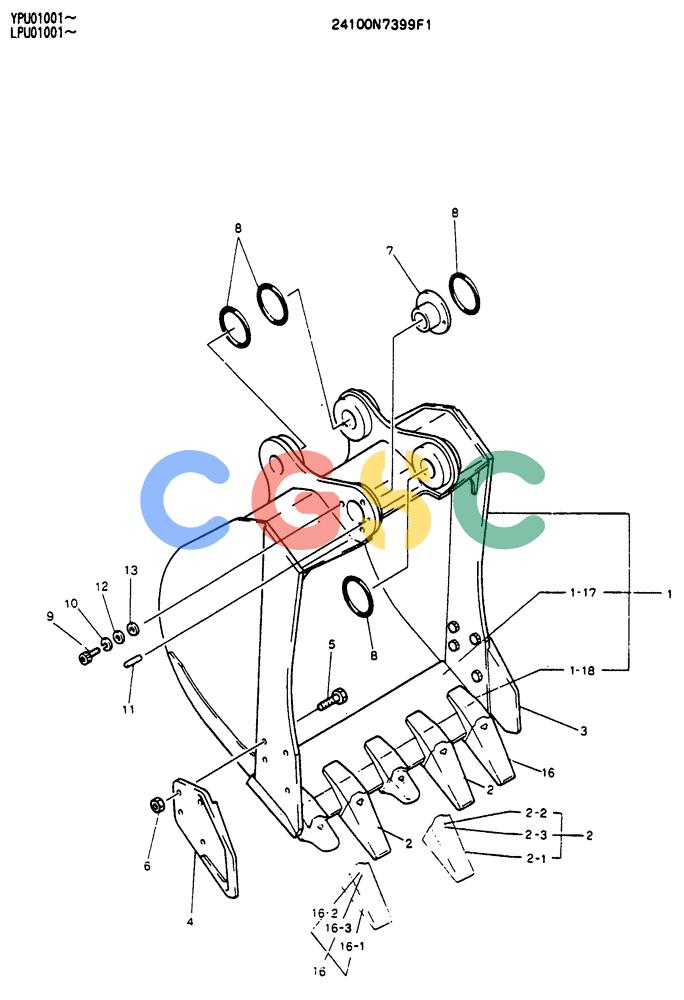

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N7399F1 | [1] | BUCKET ASSY, STD | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONBUCKET |
| 1-17. | NSS | [1] | NOT SOLD SEPARAT | CONEDGE,CUTTING |
| 1-18. | NSS | [1] | NOT SOLD SEPARAT | CONADAPTER |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONTOOTH ASSY |
| 2-1. | NSS | [1] | NOT SOLD SEPARAT | CONPOINT |
| 2-2. | NSS | [1] | NOT SOLD SEPARAT | CONPIN, LOCKING |
| 2-3. | NSS | [1] | NOT SOLD SEPARAT | CONLOCK, RUBBER |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONCUTTER, SIDE |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONCUTTER, SIDE |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONCAPSCREW |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONNUT |
| 7. | 2405T1314 | [1] | BUSHING | KOB |
| 8. | 2445Z869 | [4] | O-RING,9mm Thk x 115mm ID | KOBID 115 ± 0.40 x OD 133mm |
| 9. | ZS23C14035 | [3] | SCREW,Hex Socket Head, M14 x 35mm | KOBM14x2.0x35mm |
| 10. | ZW22K14000 | [3] | LOCK WASHER | KOBID 14.2 x OD 21.8 x Th 3.5mm |
| 11. | 2419T3772 | [1] | PIN | KOB |
| 12. | 2418T12260D2 | [3] | SHIM | KOB(3.2) |
| 13. | 2418T12260D1 | [21] | SHIM | KOB(1.0) |
| 16. | NSS | [1] | NOT SOLD SEPARAT | CONTOOTH ASSY |
| 16-1. | NSS | [1] | NOT SOLD SEPARAT | CONTOOTH |
| 16-2. | NSS | [1] | NOT SOLD SEPARAT | CONPIN, LOCKING |
| 16-3. | NSS | [1] | NOT SOLD SEPARAT | CONLOCK, RUBBER |
