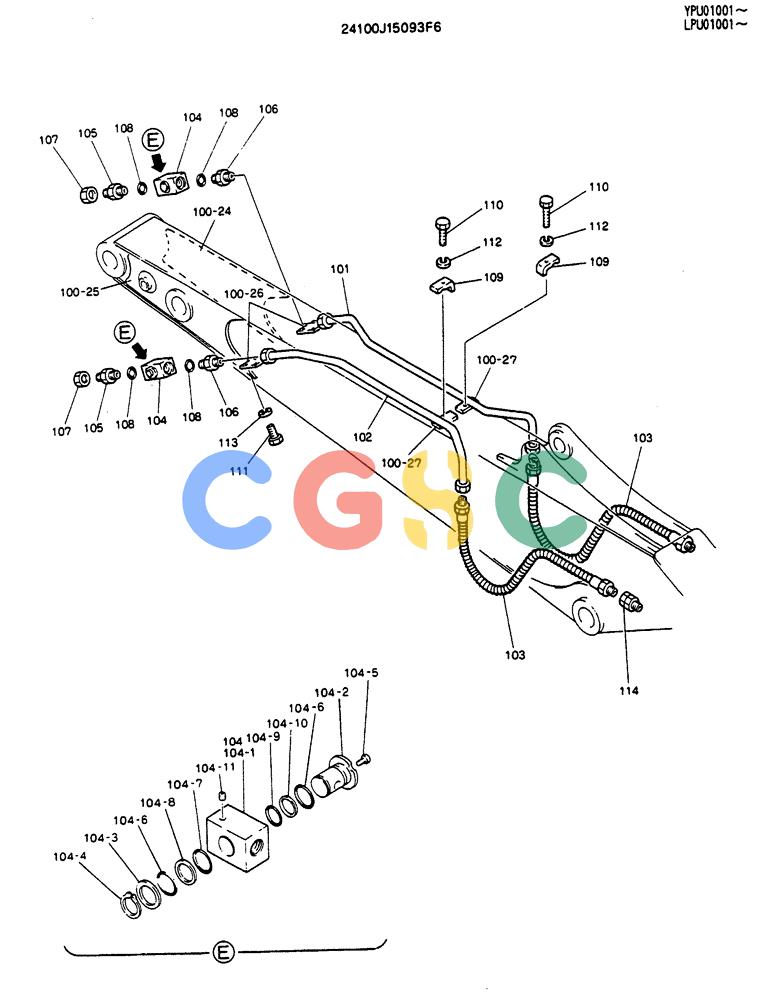

| . . | 24100J15093F6 | [1] | ARM ASSY. 2.5M | |
| 2. | 2438U1131F1 | [1] | CYLINDER | KOB |
| 3. | 2406N795F1 | [1] | LINK CONROD | KOB |
| 3-6. | 2405T825 | [2] | BUSHING | KOBID 65 x OD 80 x 60mm Long |
| 3-7. | 2405T824 | [2] | BUSHING | KOBID 60 x OD 75 x 69mm Long |
| 9. | 2444R1169D3 | [2] | FLEXIBLE HOSE,6.35mm ID x 1200mm L | KOB1200mm Long (47-1/4in), Serial Range: -3 |
| 10. | 2419P1643 | [2] | PIN | KOB |
| 11. | 2419P3416D2 | [1] | PIN | KOBOD 60 x 377mm Long |
| 12. | 2419P3417D2 | [1] | PIN,60mm OD x 377mm L | KOBOD 60 x 377mm Long |
| 13. | 2419P3229 | [1] | PIN | KOB Superseded by part number: 2419P4370 |
| 14. | 2419P3228D2 | [1] | PIN | KOBOD 60 x 164mm Long Superseded by part number: 2419P4042D2 |
| 15. | 2445R220D2 | [4] | SEAL,65mm ID x 80mm OD x 5mm Thk | KOBDust -- ID 65 x OD 80 x Th 5mm Superseded by part number: 84499663 |
| 16. | 2445R138D6 | [2] | SEAL,70mm ID x 85.3mm OD x 4mm Thk | KOBSeal, Dust -- ID 70 x OD 85 x Th 4mm |
| 17. | 2445R138D3 | [6] | SEAL,60mm ID x 75mm OD x 4mm Thk | KOBDust -- ID 60 x OD 75 x Th 4mm |
| 18. | ZD12P02600 | [2] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 20. | 2432T1333 | [1] | CLAMP | KOBSingle Block -- 50x30x25mm Superseded by part number: YW43H01049P1 |
| 21. | 2420T4327D5 | [2] | SCREW,M14 x 2 x 115mm | KOB |
| 22. | 2420T4331D6 | [1] | CAPSCREW M12x1.75x110mm | CAPSCREW M12x1.75x110mm |
| 23. | ZS13C10060 | [8] | SCREW | KOBM10x1.50x60mm Superseded by part number: ZS18C10060 |
| 24. | ZS13C10050 | [1] | SCREW | KOBM10x1.50x50mm Superseded by part number: ZS18C10050 |
| 25. | ZN13C14011 | [4] | NUT | KOBM14x2.0mm Superseded by part number: ZN18C14011 |
| 26. | ZN13C12010 | [4] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 27. | ZW22X10000 | [9] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 28. | ZG91U02000 | [2] | LUBE NIPPLE | KOB90° x 1/8" PT |
| 29. | ZG91S02000 | [5] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 30. | B16T0442D1 | [1] | SHIM,130mm OD x 72mm ID x 1.2mm Thk | KOBID 72 x OD 130 x Th 1.2mm |
| 31. | B16T0442D2 | [1] | SHIM,130mm OD x 72mm ID x 1.6mm Thk | KOBID 72 x OD 130 x Th 1.6mm |
| 32. | B16T0442D5 | [1] | SHIM,130mm OD x 72mm ID x 2.3mm Thk | KOBID 72 x OD 130 x Th 2.3mm |
| 33. | B16T0442D27 | [4] | SHIM,62mm ID x 100mm OD x 1.2mm Thk | KOBID 62 x OD 100 x Th 1.2mm |
| 34. | B16T0442D19 | [4] | SHIM,62mm ID x 100mm OD x 1.6mm Thk | KOBID 62 x OD 100 x Th 1.6mm |
| 35. | B16T0442D20 | [4] | SHIM,100mm OD x 62mm ID x 2.3mm Thk | KOBID 62 x OD 100 x Th 2.3mm |
| 36. | 2418T23986D1 | [2] | RING | KOBID 94 x OD 98 x Th 12mm |
| 37. | 2419T6002D7 | [2] | PIN,14mm OD x 91mm L | KOBOD 14 x 91mm Long |
| 45. | 2420T4331D1 | [1] | SCREW,M12 x 1.75 x 125mm | KOBM12x1.75x125mm |
| 46. | B16T0442D43 | [4] | SHIM,62mm ID x 100mm OD x 0.9mm Thk | KOBID 62 x OD 100 x Th 0.9mm |
| 47. | B16T0442D56 | [4] | SHIM,62mm ID x 100mm OD x 0.5mm Thk | KOBID 62 x OD 100 x Th 0.5mm |
| 48. | B16T0442D44 | [1] | SHIM,72mm ID x 130mm OD x 0.9mm Thk | KOBID 72 x OD 130 x Th 0.9mm |
| 49. | B16T0442D57 | [1] | SHIM,72mm ID x 130mm OD x 0.5mm Thk | KOBID 72 x OD 130 x Th 0.5mm |
| 50. | B16T0442D88 | [1] | SHIM,100mm OD x 67mm ID x 0.5mm Thk | KOBID 67 x OD 100 x Th 0.5mm |
| 53. | 2418P31221 | [1] | RIGID TUBE | KOB Superseded by part number: 2418P10046D2 |
| 54. | 2418P31222 | [1] | RIGID TUBE | KOB Superseded by part number: 2418P22119 |
| 100. | 2411J4696D3F1 | [1] | ARM | |
| 100-20. | 2405P472 | [2] | BUSHING | KOBID 65 x OD 80 x 75mm Long, Flange OD 130 |
| 100-21. | 2405T824 | [2] | BUSHING | KOBID 60 x OD 75 x 69mm Long |
| 100-22. | 2405T823 | [2] | BUSHING | KOBID 70 x OD 85 x 70mm Long |
| 100-24. | 2418T21692 | [1] | PLATE | |
| 100-25. | 2418T21691 | [1] | PLATE | |
| 100-26. | 2416T24198 | [2] | BRACKET | KOB |
| 100-27. | 2416T12924D2 | [2] | BLOCK | KOB |
| 101. | 2418P23416 | [1] | TUBE | KOB |
| 102. | 2418P27157 | [1] | TUBE | KOB |
| 103. | 2444Z2878D4 | [2] | HOSE | KOB |
| 104. | 24100P1006F1 | [2] | VALVE | KOBSTOP Superseded by part number: 24100P1006F2 |
| 104-1. | 2436P230 | [1] | VALVE BODY | KOB |
| 104-2. | 2436T304 | [1] | VALVE | KOB |
| 104-3. | 2418T8945D1 | [1] | SPACER | KOBID 40 x OD 60 x Th 3.2mm |
| 104-4. | ZR16X04000 | [1] | RING | KOBRetaining -- ID 37 x OD 40 x Th 1.8mm |
| 104-5. | ZS23C06010 | [1] | SCREW,Hex Socket Head, M6 x 10mm | KOBM06x1.0x10mm |
| 104-6. | ZD11G04000 | [2] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 104-7. | ZD12G04000 | [1] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 104-8. | ZD75G04000 | [1] | BACK-UP RING | KOBID 40 x OD 45 x Th 1.25mm |
| 104-9. | ZD12G03500 | [1] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 104-10. | ZD85G03500 | [1] | RING | KOBBack-Up -- ID 35 x OD 40 x Th 1.25mm |
| 104-11. | ZE82T04000 | [1] | PLUG | KOB1/4" PT |
| 105. | 2444P1744D2 | [2] | CONNECTION | KOB(No O-Ring supplied) |
| 106. | ZA23F28012 | [2] | HYD CONNECTOR | KOB |
| 107. | 2420T4404 | [2] | PLUG | KOB1-1/16" - 12 UNC |
| 108. | ZD12P02400 | [4] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 109. | ZC26X28014 | [2] | CLAMP | KOBSingle Line -- 75x37x38mm (Ø28mm) |
| 110. | ZS13C12050 | [2] | SCREW | KOBM12x1.75x50mm Superseded by part number: ZS18C12050 |
| 111. | ZS13C08025 | [8] | SCREW | KOBM08x1.25x25mm Superseded by part number: ZS18C08025, 77276313 |
| 112. | ZW22X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 113. | ZW22X08000 | [8] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 114. | 2444T2158 | [1] | HYD CONNECTOR | KOBIncls. 2444T2159 Connector, ZF93N28000 Nut, & ZF93S28000 Sleeve |
| 115. | 2406P4938D2 | [1] | LINK | KOB |
| 116. | 2406P4938D1 | [1] | LINK | KOB |
