神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (12-001) - VALVE ASSY CONTROL (EXTRA & BREAKER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
290 次

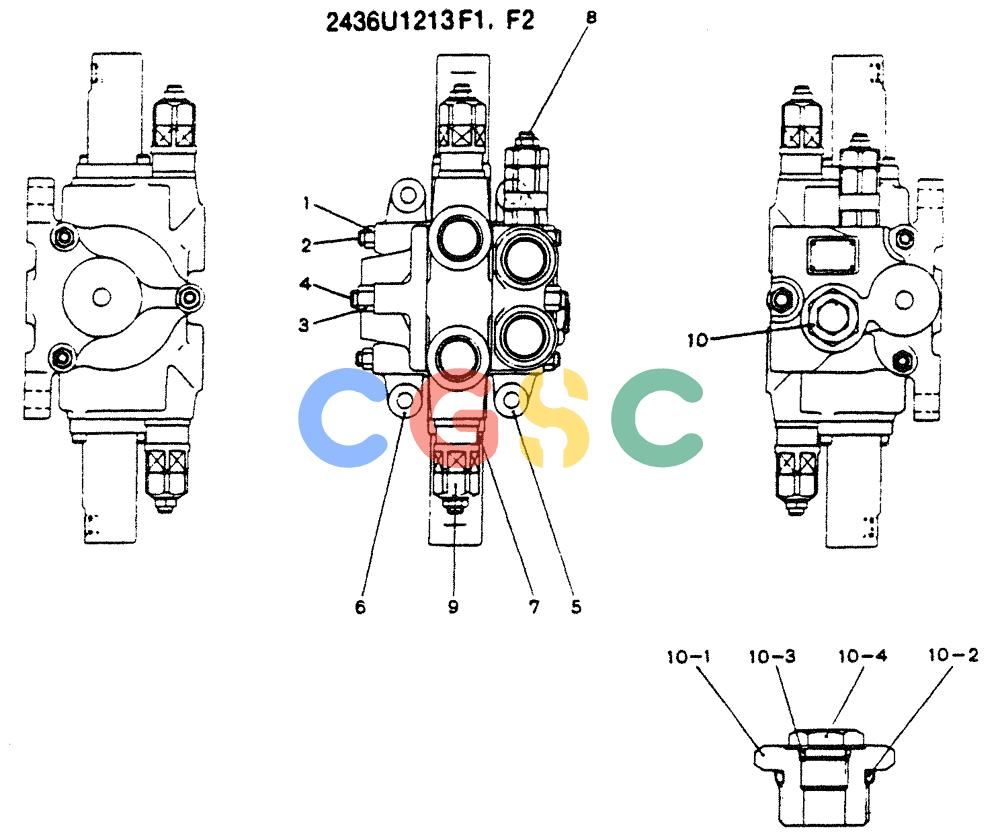

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1213F1 | [1] | CONTROL VALVE | KOB |
| . . | 2436U1213F2 | [1] | CONTROL VALVE | KOB |
| 1. | B36K0019E112 | [4] | NUT | KOB |
| 2. | 2436U428S5 | [2] | ROD, TIE | |
| 3. | B36K0019E110 | [2] | NUT | KOB |
| 4. | 2436U836S4 | [1] | ROD, TIE | |
| 5. | 2436Z416F1 | [1] | SECTION ASSY, INLET | SECTION ASSY, INLET |
| 6. | B36K0019E102 | [1] | SECTION ASSY, OUTLET | |
| 7. | 2436R807F1 | [1] | SPOOL | KOB |
| 8. | 2436R1094F1 | [1] | VALVE | KOB |
| 9. | 2436R721F3 | [2] | HYDRAULIC VALVE | KOB |
| 10. | 2420Z1266F1 | [1] | PLUG | KOB |
| 10-1. | 2420Z1266S1 | [1] | PLUG | |
| 10-2. | 2436U618S28 | [1] | O-RING | KOB Superseded by part number: ZD12P02400 |
| 10-3. | 2483U283S9 | [1] | O-RING | KOB Superseded by part number: ZD12P01100 |
| 10-4. | 2420Z1266S4 | [1] | PLUG | |
