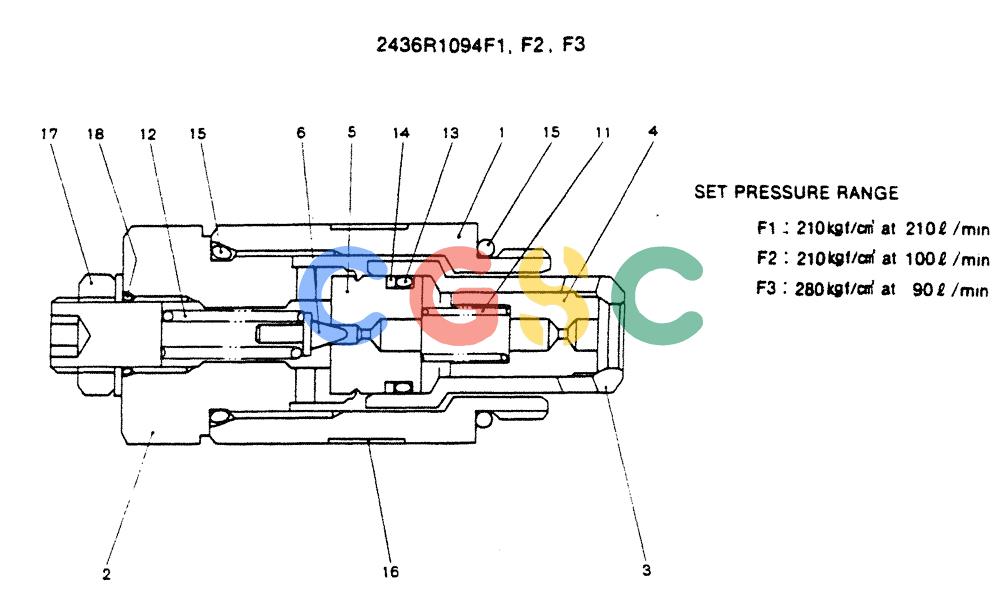

神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (12-004) - VALVE ASSY MAIN RELIEF Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
343 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R1094F1 | [1] | VALVE | KOB |
| . . | 2436R1094F2 | [1] | VALVE PRESSURE RELIE | KOB |
| . . | 2436R1094F3 | [1] | VALVE | KOB |
| 1. | 2436R1094S1 | [1] | CAP | |
| 2. | 2436R1174S1 | [1] | PLUG | |
| 3. | 2436R1174S2 | [1] | SLEEVE | |
| 4. | 2436R1094S4 | [1] | POPPET VALVE | |
| 5. | 2436R1094S5 | [1] | SEAT PILOT | SEAT PILOT |
| 6. | 2436R1094S6 | [1] | POPPET, PILOT | |
| 11. | 2436R1094S11 | [1] | SPRING | |
| 12. | 2436R1094S12 | [1] | SPRING, PILOT | |
| 13. | 2436R1094S13 | [1] | O-RING | KOB |
| 14. | 2438U283S4 | [1] | RING | KOB |
| 15. | 2445Z7D8 | [2] | O-RING | KOB Superseded by part number: 921206 |
| 16. | 2436R1094S16 | [1] | NAME PLATE | |
| 17. | 2436R1094S17 | [1] | NUT, ADJUSTING | |
| 18. | ZD12P01000 | [1] | O-RING | KOBID 09.80 ± 0.17 x OD 13mm |
