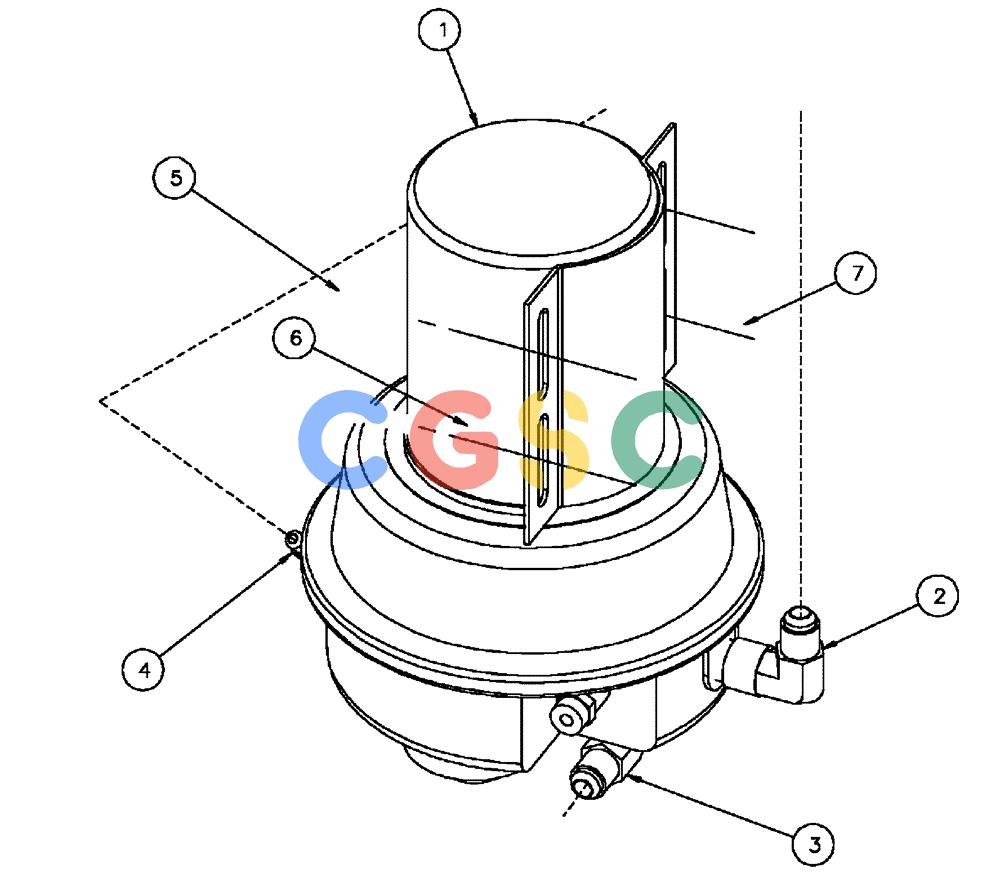

凯斯零件查询(FLX3300B) - FLOATER - 2002 (9/02-10/03) (07-013) - AIR DRYER GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
702 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN2296407
|
[1] |
FILTER ASSY
|
BN
Air Dryer (Spin On)
|
| 1A. |
BN2296407-001
|
[1] |
FILTER
|
BN
Coalescing Kit
|
| 1B. |
BN2296407-002
|
[1] |
FILTER
|
BN
Kit (Desiccant & Coalescing) (Spin On)
|
| 1C. |
BN2296407-003
|
[1] |
REPAIR KIT
|
BN
(Purge, Turbo, Saver, Check Valve)
|
| 1D. |
BN2296407-004
|
[1] |
Air Dryer
|
|
| 1E. |
BN2296407-005
|
[1] |
BRACKET
|
BN
Superseded by part number: BN2296407
|
| 1F. |
BN2296407-006
|
[1] |
CLAMP
|
BN
T-Bolt
|
| 2. |
BN2390690
|
[1] |
FITTING
|
BN
5603-8-10 Superseded by part number: 86512935
|
| 3. |
BN2290508
|
[1] |
ELBOW
|
BN
2103-8-8
|
| 4. |
BN2290148
|
[1] |
ELBOW
|
BN
4MJ - 2MP 90º
|
| 5. |
BN300472
|
[4] |
BOLT
|
BN
M10-1.5 x 35, HH, SS
|
| 6. |
BN300507
|
[4] |
WASHER
|
BN
M10, Flat, SS
|
| 7. |
100037
|
[4] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
