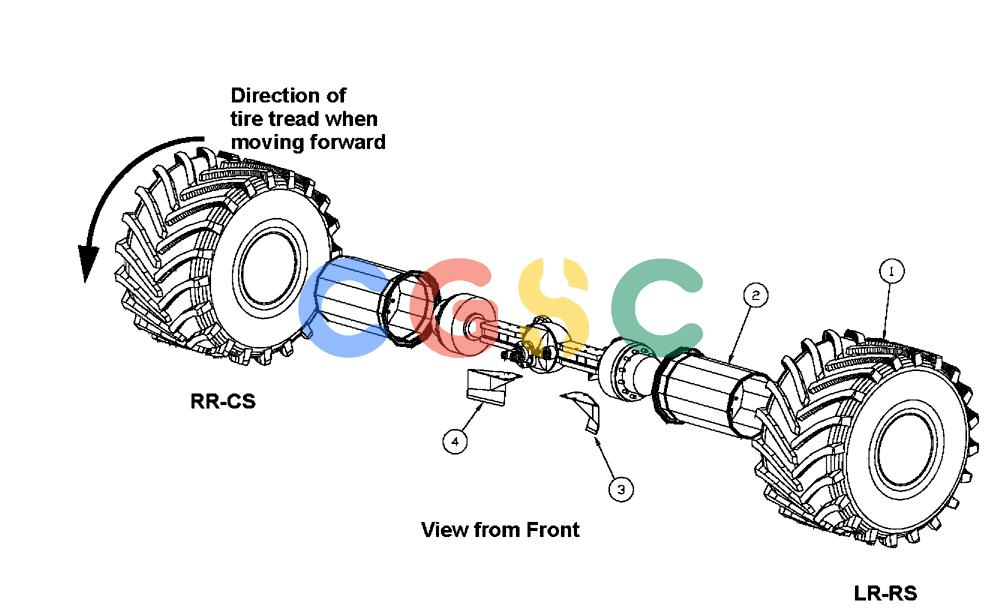

凯斯零件查询(FLX3300B) - FLOATER - 2002 (9/02-10/03) (05-001[01]) - REAR TIRE GROUP - 66" FIRESTONE, 16 PLY, TIRE-MTD LH, 66 X 43, 16P, FS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
633 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN304490
|
[1] |
Tire, 66 X 43-25 16PFS
|
|
| 2. |
BN323605
|
[1] |
WHEEL
|
BN
36 X 25, 0 Off, SIL
|
| 2A. |
BN2391858
|
[1] |
O-RING
|
BN
OR25T Black
|
| 2B. |
BN67197
|
[1] |
VALVE STEM
|
BN
TR-600
|
| 2C. |
BN2297235
|
[1] |
LOCKING RING
|
BN
LR25T
|
| 2D. |
BN2396615
|
[1] |
FLANGE
|
TYR
FL025T
|
| 3. |
BN7136021
|
[1] |
MUD CLEANER
|
BN
Scraper-Left Rear
|
| 4. |
BN7136022
|
[1] |
MUD CLEANER
|
BN
Scraper-Right Rear
|
| 4A. |
BN315229
|
[12] |
WHEEL NUT
|
BN
Flange, Wheel, 22 mm
|
| 4B. |
333089A1
|
[1] |
DECAL
|
BN
torque wheel nuts Superseded by part number: 47765851
|
