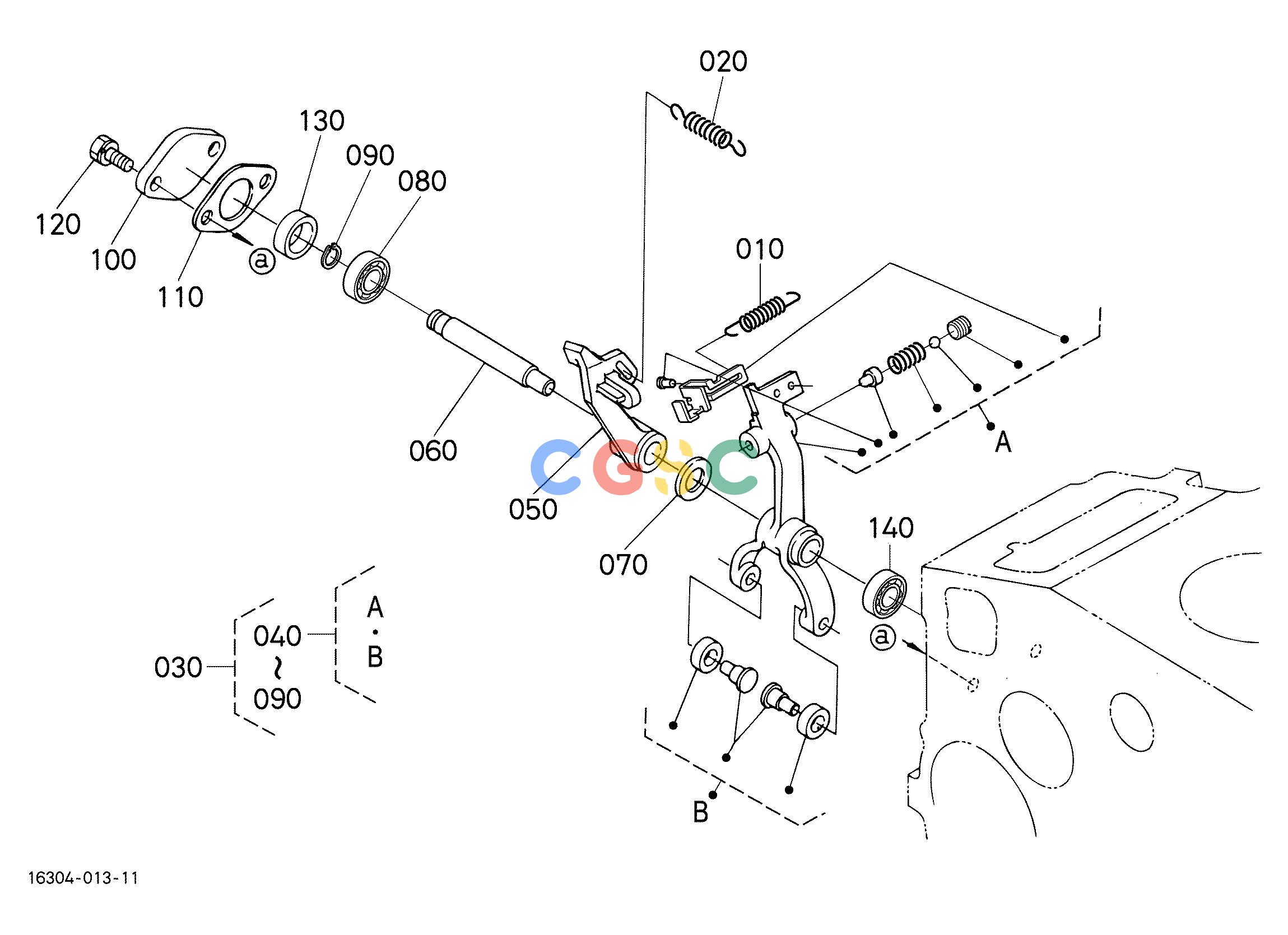

久保田零件查询020401 GOVERNOR ## S.No.;<=3Y9499 ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
1019 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1626156480
|
[1] |
SPRING,START
|
0.0044(lbs); 0.002
|
| 020. |
1G04356410
|
[1] |
SPRING,GOVERNOR
|
0.0418(lbs); 0.019
|
| 030. |
1621656055
|
[1] |
ASSY LEVER,FORK
|
0.5500(lbs); 0.250
|
| 040. |
1621656045
|
[1] |
COMP.LEVER,FORK
|
0.2860(lbs); 0.130
|
| 050. |
1622256133
|
[1] |
LEVER,FORK
|
0.1320(lbs); 0.060
|
| 060. |
1624156153
|
[1] |
SHAFT,FORK LEVER
|
0.0880(lbs); 0.040
|
| 070. |
1624194010
|
[1] |
WASHER,PLAIN
|
0.0044(lbs); 0.002
|
| 080. |
1624156330
|
[1] |
BEARING,MINIATURIZE
|
0.0154(lbs); 0.007
|
| 090. |
0461200090
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0022(lbs); 0.001
|
| 100. |
1624156250
|
[1] |
COVER,FORK LEV.SHAFT
|
0.0286(lbs); 0.013
|
| 110. |
1629956260
|
[1] |
GASKET
|
0.0044(lbs); 0.002
|
| 120. |
0102350614
|
[2] |
BOLT,SEMS
|
0.0110(lbs); 0.005
|
| 130. |
1624156210
|
[1] |
COLLAR
|
0.0176(lbs); 0.008
|
| 140. |
1624156340
|
[1] |
BEARING,MINIATURIZE
|
0.0154(lbs); 0.007
|
