| . . | NSS | [1] | NOT SOLD SEPARAT | CONBOOM ASSY 5.2M(STD, BOOM & ARM SAFETY) |
| . . | YM02B00001F2 | [1] | BOOM, HOE ASSY | BOOM, HOE ASSY |
| A2. | YM01V01001P1 | [2] | BUSHING | KOB |

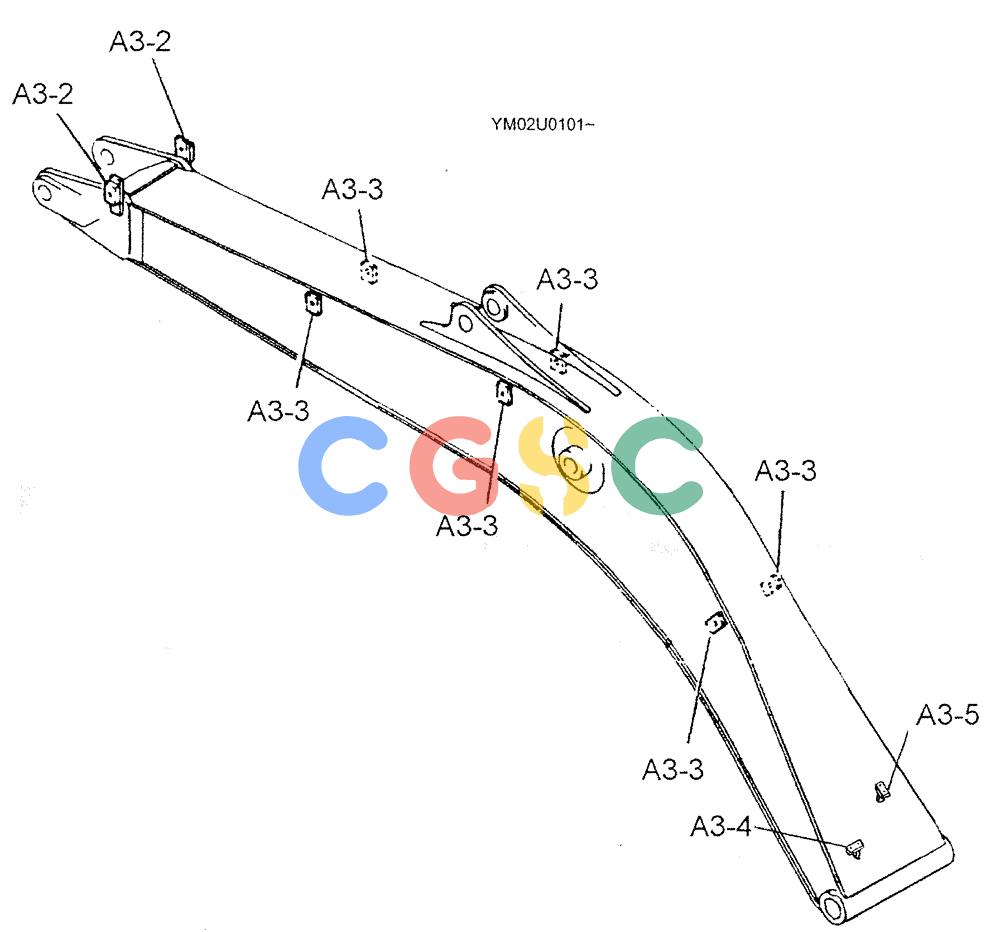

| A3. | NSS | [1] | NOT SOLD SEPARAT | CONBOOM, HOE |
| A3-1a. | YM02B01001P1 | [1] | BRACKET | KOB |
| A3-13-6. | 2416T13274D2 | [2] | BLOCK | KOBTAPPED |
| A3-1a-7. | 2416T12922 | [2] | BLOCK | KOBTAPPED |
| A3-1b. | 2416T22607 | [2] | BLOCK | KOBTAPPED |
| A3-1C. | 2416T21120D2 | [6] | BLOCK | KOBTAPPED |
| A3-1d. | 2418T22409 | [1] | PLATE | KOB |
| A3-1e. | 2416T9878 | [2] | BLOCK,M10 Thd Hole - 16mm Thk x 32mm W x 60mm L | KOBTAPPBD |
| A3-2. | YY02B01010P1 | [2] | BLOCK, TAPPED | |
| A3-3. | YN02B01207P1 | [6] | BLOCK | KOBTAPPED |
| A3-4. | YN02B01240P1 | [1] | BRACKET | KOB |
| A3-5. | YN02B01242P1 | [1] | BRACKET | KOB |
| . . | YM02B00006F1 | [1] | BOOM INSTAL | |
| B1. | YM02B01010P1 | [1] | PIN | KOB |
| B2. | 2418T12469 | [1] | PLATE | KOB150 x 50 x Th 12mm, 2-Ø16 Holes |
| B3. | ZS18C14030 | [2] | SCREW,Hex, M14 x 30mm | KOBM14x2.0x30mm |
| B4. | B16T0442D59 | [1] | SHIM,160mm OD x 87mm ID x 0.5mm Thk | KOBID 87 x OD 160 x Th 0.5mm |
| B5. | B16T0442D46 | [1] | SHIM,160mm OD x 87mm ID x 0.9mm Thk | KOBID 87 x OD 160 x Th 0.9mm |
| B6. | B16T0442D48 | [1] | SHIM,160mm OD x 87mm ID x 1.2mm Thk | KOBID 87 x OD 160 x Th 1.2mm |
| B7. | B16T0442D37 | [1] | SHIM,155mm OD x 87mm ID x 1.6mm Thk | KOBID 87 x OD 155 x Th 1.6mm |
| . . | YM02B00007F1 | [1] | BOOM | KOBGROUP |
| C1. | 2444R1117D088 | [2] | HOSE,6.40mm ID x 880mm L | KOBFF 1/4 Superseded by part number: HX21E04090DY |
| C2. | 2444R1117D088 | [2] | HOSE,6.40mm ID x 880mm L | KOBFF 1/4 Superseded by part number: HX21E04090DY |
| C3. | 2444R1117D297 | [1] | HOSE,6.40mm ID x 2970mm L | KOB(PT 1/4- FF 1/4, L=2970mm) Superseded by part number: 2444R1117D300 |
| C4. | 2444R1117D220 | [1] | HOSE,6.40mm ID x 2200mm L | KOB(PT 1/4- PF 1/4, L=2200mm) |
| C5. | ZH32Z04000 | [2] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| C6. | 2445R220D17 | [2] | SEAL,85mm ID x 100mm OD x 6mm Thk | KOBDust -- ID 85 x OD 100 x Th 6mm Superseded by part number: 160484A1 |
| C7. | ZG91S02000 | [6] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| . . | YM02B00005F1 | [1] | CYL INSTAL, BOOM | |
| D1. | YM02B01007P1 | [1] | PIN | KOB |
| D2. | YM02B01008P1 | [2] | PIN | KOB |
| D3. | HS18C16150G2 | [2] | SCREW | KOBM16x2.0x150mm |
| D4. | YN02B01108P1 | [2] | BOSS | KOB Superseded by part number: 72953989 |
| D5. | ZN18C16013 | [4] | NUT | KOBM16x2.0mm |
| D6. | ZS18C16030 | [2] | SCREW,Hex, M16 x 30mm | KOBM16x2.0x30mm |
| D7. | 2418T17550 | [2] | PLATE | KOBID 18 x OD 60 x Th 06mm |
| D8. | YN02B01109D1 | [1] | SHIM,87mm ID x 120mm OD x 0.5mm Thk | KOBID 87 x OD 120 x Th 0.5mm |
| D9. | YN02B01109D2 | [1] | SHIM,87mm ID x 120mm OD x 0.9mm Thk | KOBID 87 x OD 120 x Th 0.9mm |
| D10. | YN02B01109D3 | [1] | SHIM,87mm ID x 120mm OD x 1.2mm Thk | KOBID 87 x OD 120 x Th 1.2mm |
| D11. | YN02B01109D4 | [1] | SHIM,87mm ID x 120mm OD x 1.6mm Thk | KOBID 87 x OD 120 x Th 1.6mm |
| D12. | B16T0442D59 | [1] | SHIM,160mm OD x 87mm ID x 0.5mm Thk | KOBID 87 x OD 160 x Th 0.5mm |
| D13. | B16T0442D46 | [1] | SHIM,160mm OD x 87mm ID x 0.9mm Thk | KOBID 87 x OD 160 x Th 0.9mm |
| D14. | B16T0442D48 | [1] | SHIM,160mm OD x 87mm ID x 1.2mm Thk | KOBID 87 x OD 160 x Th 1.2mm |
| D15. | B16T0442D37 | [1] | SHIM,155mm OD x 87mm ID x 1.6mm Thk | KOBID 87 x OD 155 x Th 1.6mm |
| . . | YM02B00004F1 | [1] | CYL INSTAL, ARM | |
| E1. | YM12B01011P1 | [1] | PIN | KOB Superseded by part number: YB12B01071P1 |
| E2. | HS18C16140G2 | [1] | SCREW,M16 x 140mm, Cl 10.9 | KOBM16x2.0x140mm |
| E3. | ZN18C16013 | [2] | NUT | KOBM16x2.0mm |
| E4. | B16T0442D52 | [1] | SHIM,82mm ID x 100mm OD x 0.5mm Thk | KOBID 82 x OD 150 x Th 0.5mm |
| E5. | B16T0442D39 | [1] | SHIM,82mm ID x 150mm OD x 0.9mm Thk | KOBID 82 x OD 150 x Th 0.9mm |
| E6. | B16T0442D3 | [1] | SHIM,150mm OD x 82mm ID x 1.2mm Thk | KOBID 82 x OD 150 x Th 1.2mm |
| E7. | B16T0442D4 | [1] | SHIM,82mm ID x 150mm OD x 1.6mm Thk | KOBID 82 x OD 150 x Th 1.6mm |
