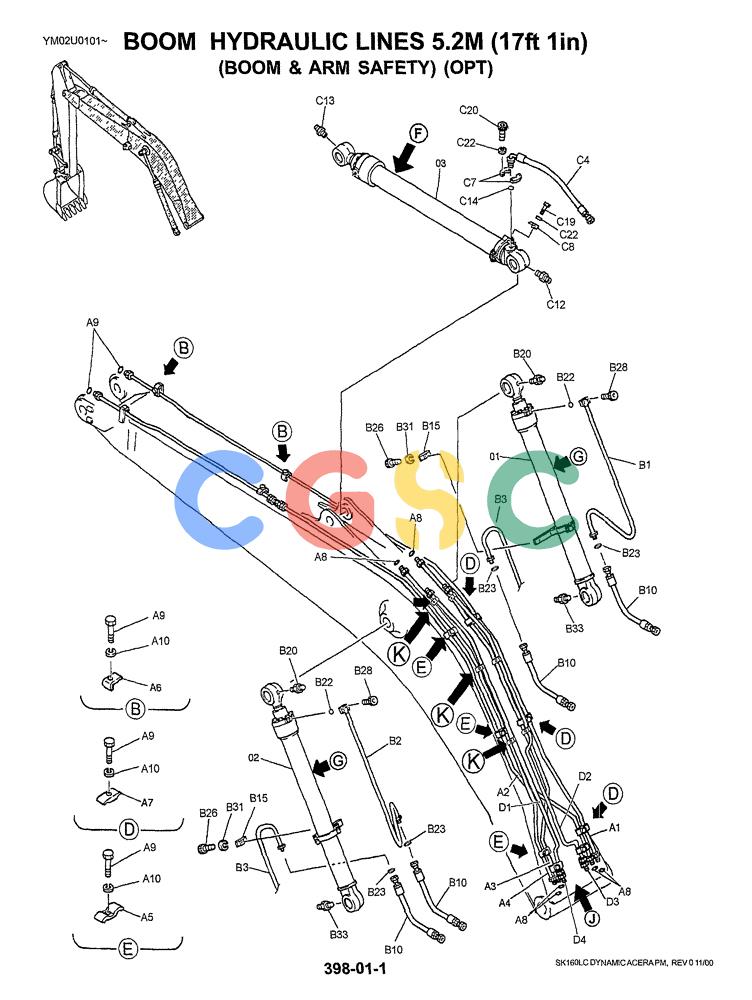

| . . | NSS | [1] | NOT SOLD SEPARAT | CONHYD LINES, BOOM 5.2M (BOOM & ARM SAFETY) |
| 1. | YM01V00006F1 | [1] | BOOM | KOBCYL ASSY, RH BOOM |
| 2. | YM01V00007F1 | [1] | BOOM | KOBASSY, LH Superseded by part number: YM01V00007F2 |
| 3. | YM01V00008F1 | [1] | CYLINDER | KOB Superseded by part number: YM01V00008F3 |
| . . | NS | [1] | NOT SERVICED | BASHYD LINES, BOOM (YM42H00001F1) Order Components |
| A1. | YM42H01028P1 | [1] | TUBE | KOB |
| A2. | YM42H01029P1 | [1] | TUBE | KOB |
| A3. | YM42H01003P1 | [1] | TUBE | KOB |
| A4. | YM42H01004P1 | [1] | TUBE | KOB |
| A5. | 2432T2434 | [3] | CLAMP | KOBDouble Line -- 129x38x15mm (Ø29xØ36mm) |
| A6. | ZC26X28014 | [4] | CLAMP | KOBSingle Line -- 75x37x38mm (Ø28mm) |
| A7. | ZC36X28014 | [3] | CLAMP | KOBDouble Line -- 100x38x16mm (Ø30mm) |
| A8. | ZD12A01800 | [8] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
| A9. | ZS18C12055 | [10] | SCREW,Hex, M12 x 55mm | KOBM12x1.75x55mm |
| A10. | ZW26X12000 | [10] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| . . | YM42H00012F1 | [1] | TUBE | KOBHYD LINES, BOOM CYL (BOOM & ARM SAFETY) |
| B1. | YM42H01032P1 | [1] | RIGID TUBE | KOB970mm Long (38-3/16 in) |
| B2. | YM42H01033P1 | [1] | RIGID TUBE | KOB970mm Long (38-3/16 in) |
| B3. | YM42H01037P1 | [2] | RIGID TUBE | KOB |
| B4. | 2444Z2891 | [2] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) |
| B5. | YM42H01038P1 | [1] | TUBE | KOB |
| B6. | YM42H01039P1 | [1] | TUBE | KOB |
| B7. | YM42H01040P1 | [1] | TUBE | KOB |
| B8. | YM42H01041P1 | [1] | TUBE | KOB |
| B9. | YN42H01547P1 | [2] | BLOCK | KOBTAPPED |
| B10. | ZX20H10074 | [4] | HOSE | KOB740mm Long (29-1/8 in) |
| B11. | ZX20H10105 | [1] | HOSE | KOB1050mm Long (41-21/64 in) |
| B12. | YM28V00002F1 | [1] | VALVE | KOBHOLDING, See CPM Superseded by part number: YN28V00014F1 |
| B13. | YM28V00001F1 | [1] | VALVE | KOBHOLDING, See CPM Superseded by part number: YN28V00015F1 |
| B14. | 2432T2242 | [2] | CLAMP | KOBDouble -- 106x38x12mm (Ø23xØ29mm) |
| B15. | ZC36X15009 | [2] | CLAMP | KOB |
| B16. | HG33H12012G1 | [2] | HYD CONNECTOR | KOB |
| B17. | ZA33F15006 | [2] | ELBOW | KOB |
| B18. | ZG23F10008 | [1] | HYD CONNECTOR | KOB1-14UNS x 1/2" PF x 43.5mm (5/8x1/2) (Incls. O-Ring 237-6008) |
| B19. | ZA23F15006 | [2] | HYD CONNECTOR | KOB3/8"PF - M22x1.50 x 37mm Long (No O-Ring supplied) |
| B20. | ZH22Z04000 | [2] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| B21. | ZD12G03000 | [2] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| B22. | ZD12P02600 | [2] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| B23. | ZD12A01600 | [6] | O-RING | KOBID 15.60 ± 0.12 x OD 19.16mm |
| B25. | ZS18C10065 | [2] | SCREW,Hex, M10 x 65mm | KOBM10x1.50x65mm |
| B26. | ZS18C08035 | [2] | SCREW,Hex, M8 x 35mm | KOBM08x1.25x35mm |
| B27. | ZS28C10065 | [8] | SCREW,Hex Socket Head, M10 x 65mm | KOBM10x1.50x65mm |
| B23. | ZS28C10030 | [8] | SCREW,Hex Socket Head, M10 x 30mm | KOBM10x1.50x30mm |
| B29. | ZW16H10000 | [2] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| B30. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| B31. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| B32. | ZW26K10000 | [8] | LOCK WASHER | KOBLock -- ID 10 x OD 15.7 x Th 2.5mm Superseded by part number: 12581679 |
| B33. | ZG91S02000 | [2] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| B34. | PY01P01043D3 | [4] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
| B35. | 2444Z3499 | [4] | HYD CONNECTOR | KOB3/8"PF - M22x1.50 x 39mm Long |
| B36. | 2444Z3713 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01800) |
| B37. | YN42H01602P1 | [1] | TEE | KOB |
| B38. | ZE72X04000 | [1] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| B39. | ZD12A01800 | [2] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
| . . | YM42H00011F1 | [1] | HYD LINES, ARM CYL(BOOMS ARM SAFETY) | |
| C1. | YM28V00001F1 | [1] | VALVE | KOBHOLDING, See CPM Superseded by part number: YN28V00015F1 |
| C2. | YM42H01036P1 | [1] | HYD TUBE,1386, 207 mm L | KOB |
| C3. | ZX20H12110 | [1] | HOSE | KOB1100mm Long (43-19/64 in) |
| C4. | ZX30U12110 | [1] | HOSE | KOB(L=1100 mm) |
| C5. | 2444R892D14 | [1] | HOSE,(L=2700mm) | |
| C6. | 2444R949D19 | [1] | HOSE,(L=2600mm) | |
| C7. | ZE13X12000 | [2] | CLAMP | KOBHalf -- (Incls. Capscrew & Lockwasher) |
| C8. | YN43H01097P1 | [1] | CLAMP | KOBSingle -- 58x30x38mm (Ø28mm) |
| C9. | HG33H12012G1 | [1] | HYD CONNECTOR | KOBELBOW, (PF3/4, 1 3/16-12UNS) |
| C10. | ZA33F18006 | [1] | ELBOW | KOB |
| C11. | ZA23F15006 | [1] | HYD CONNECTOR | KOB3/8"PF - M22x1.50 x 37mm Long (No O-Ring supplied) |
| C12. | ZH22Z04000 | [1] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| C13. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| C14. | ZD12P02600 | [1] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| C15. | ZD12P01800 | [2] | O-RING | KOBID 17.8mm x OD 20.2mm |
| C16. | ZD12P01400 | [2] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| C17. | ZD12G03000 | [1] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| C18. | ZS18C12055 | [1] | SCREW,Hex, M12 x 55mm | KOBM12x1.75x55mm |
| C19. | ZS28C10055 | [4] | SCREW,Hex Socket Head, M10 x 55mm | KOBM10x1.50x55mm |
| C20. | ZS28C10035 | [4] | SCREW,Hex Socket Head, M10 x 35mm | KOBScrew -- M10x1.50x35mm |
| C21. | ZW26X12000 | [1] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| C22. | ZW26K10000 | [8] | LOCK WASHER | KOBLock -- ID 10 x OD 15.7 x Th 2.5mm Superseded by part number: 12581679 |
| C23. | PY01P01043D3 | [13] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
| C24. | ZE72X08000 | [1] | PLUG | KOB1/2" PF, (Incls. O-Ring ZD12P01800) |
| . . | YM42H00007F1 | [1] | HYD LINES, BOOM(BOOM & ARM SAFETY) | |
| D1. | YM42H01022P1 | [1] | TUBE | KOBLeft -- 2356mm Long (92-3/4 in) |
| D2. | YM42H01023P1 | [1] | TUBE | KOBRight -- 2354mm Long (92-43/64 in) |
| D3. | 2444Z3251 | [1] | FITTING | KOB3/8"PF - M26x1.50 x 39mm Long |
| D4. | 2444Z3499 | [1] | HYD CONNECTOR | KOB3/8"PF - M22x1.50 x 39mm Long |
| D5. | 2432T3993 | [4] | CLAMP | KOBDouble Line -- 95x38x19mm Hole Only |
| D6. | 2432T3994 | [4] | CLAMP | KOBDouble Line -- 95x38x19mm Threaded M12 |
| D7. | 2432T5531 | [1] | CLAMP | KOBDouble -- 82x32x19mm Threaded M12 |
| D8. | 2432T5532 | [1] | CLAMP | KOBDouble -- 82x32x19mm Hole Only |
| D9. | 2432T5625 | [3] | CLAMP | KOBDouble -- 98x38x22mm Hole Only |
| D10. | 2432T5626 | [3] | CLAMP | KOBDouble -- 98x38x22mm Threaded M12 |
| D11. | ZS18C12045 | [8] | SCREW,Hex, M12 x 45mm | KOBM12x1.75x45mm |
| D12. | ZW26X12000 | [8] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
