神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (03-005[02]) - BOOM HYDRAULIC LINES 5.2M (17FT 1IN) (BOOM AND ARM SAFETY - N AND B) (OPT) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
205 次

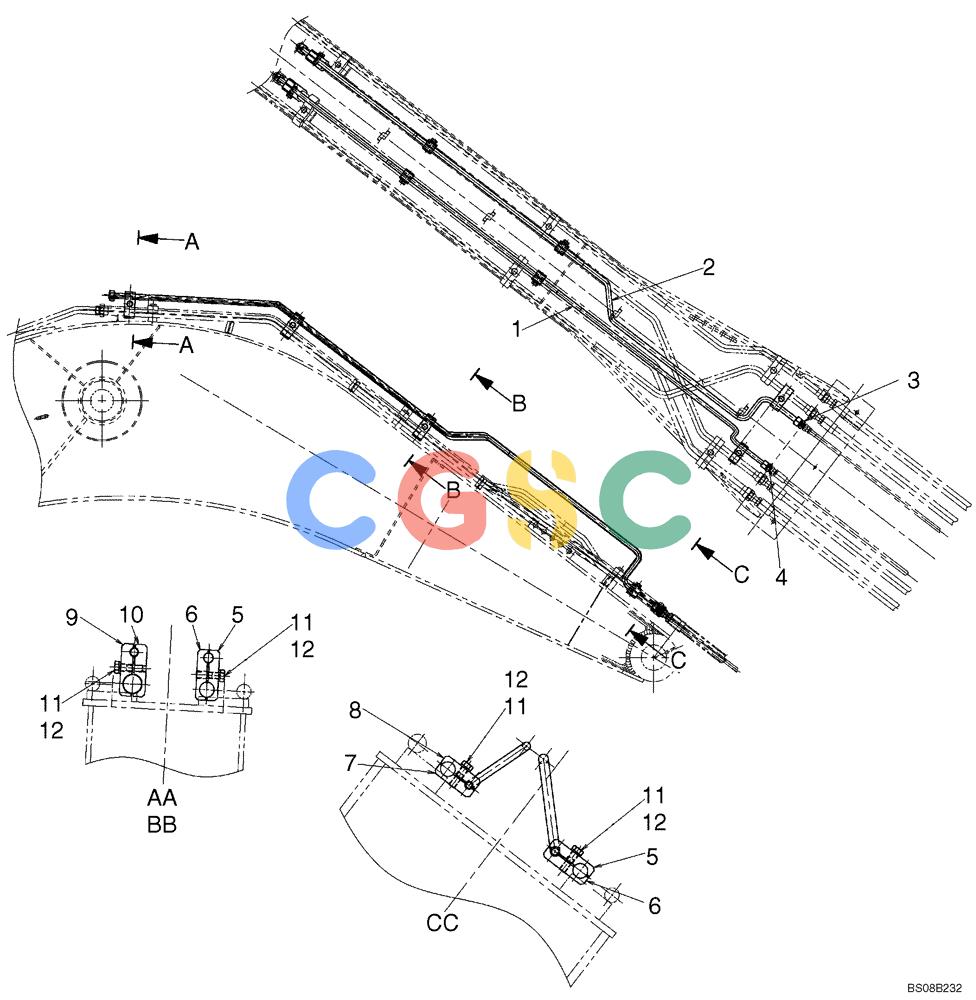

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| D1. | YM42H01022P1 | [1] | TUBE | KOBLeft -- 2356mm Long (92-3/4 in) |
| D2. | YM42H01023P1 | [1] | TUBE | KOBRight -- 2354mm Long (92-43/64 in) |
| D3. | 2444Z3251 | [1] | FITTING | KOB3/8"PF - M26x1.50 x 39mm Long |
| D4. | 2444Z3499 | [1] | HYD CONNECTOR | KOB3/8"PF - M22x1.50 x 39mm Long |
| D5. | 2432T3993 | [4] | CLAMP | KOBDouble Line -- 95x38x19mm Hole Only |
| D6. | 2432T3994 | [4] | CLAMP | KOBDouble Line -- 95x38x19mm Threaded M12 |
| D7. | 2432T5531 | [1] | CLAMP | KOBDouble -- 82x32x19mm Threaded M12 |
| D8. | 2432T5532 | [1] | CLAMP | KOBDouble -- 82x32x19mm Hole Only |
| D9. | 2432T5625 | [3] | CLAMP | KOBDouble -- 98x38x22mm Hole Only |
| D10. | 2432T5626 | [3] | CLAMP | KOBDouble -- 98x38x22mm Threaded M12 |
| D11. | ZS18C12045 | [8] | SCREW,Hex, M12 x 45mm | KOBM12x1.75x45mm |
| D12. | ZW26X12000 | [8] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
