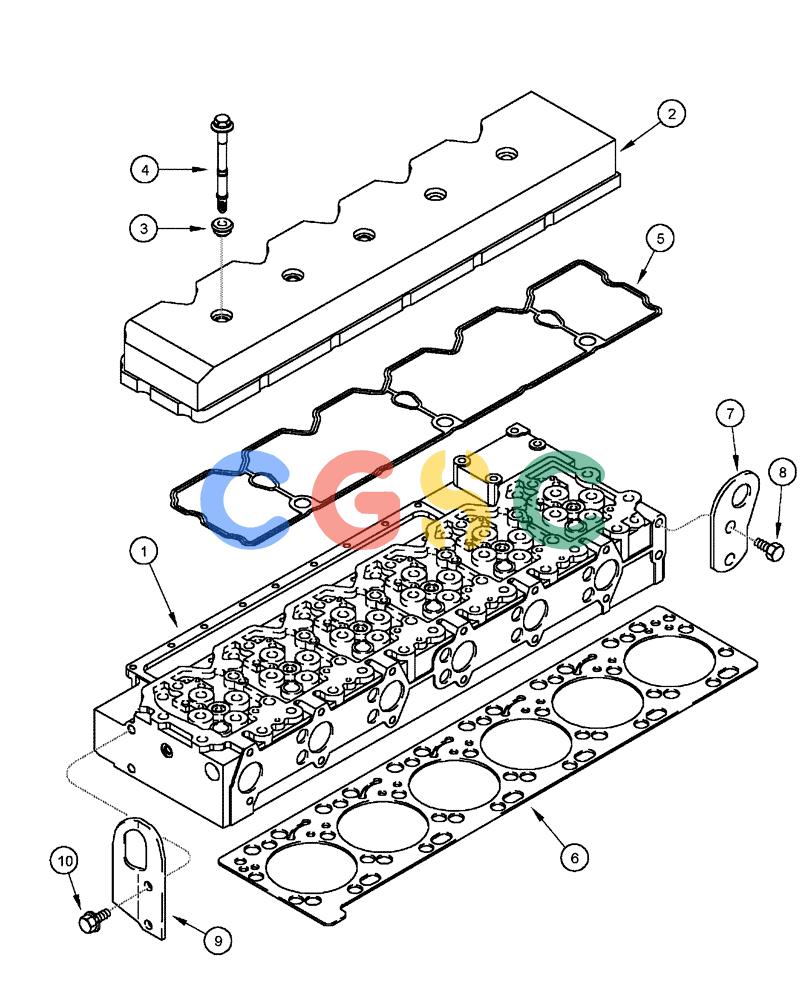

凯斯零件查询(FLX3300B) - FLOATER - 2002 (9/02-10/03) (02-034) - VALVE COVER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
999 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Head - Cylinder, See Fig 02-035
|
| 2. |
J938445
|
[1] |
VALVE COVER
|
RAC
|
| 2A. |
J990876
|
[5] |
ISOLATOR
|
CAS
Screw
|
| 5. |
J939284
|
[1] |
GASKET
|
CAS
Valve Cover
|
| 6. |
J943366
|
[1] |
CYLINDER HEAD GASKET,2.11mm Thk
|
CAS
Standard
|
| 7. |
J944239
|
[1] |
BRACKET
|
CAS
Lifting, Front
|
| 8. |
300388
|
[2] |
BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8
|
NH
|
| 9. |
J944290
|
[1] |
BRACKET
|
CAS
Lifting, Rear
|
| 10. |
9804266
|
[2] |
BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd
|
DUB
|
