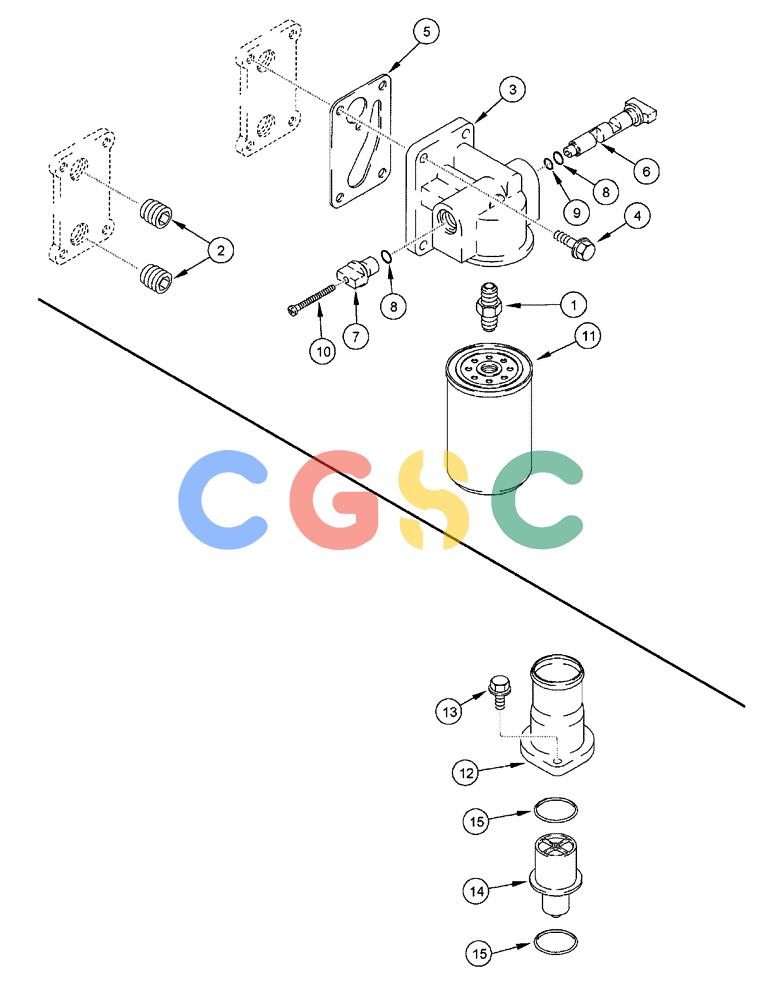

凯斯零件查询(FLX3300B) - FLOATER - 2002 (9/02-10/03) (02-036) - COOLANT FILTER - THERMOSTAT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
316 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
A77623
|
[1] |
ADAPTER,3/4" - 10 x 11/16" - 16
|
IH
Filter Head
|
| 2. |
263136
|
[2] |
MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF
|
NH
PLUG, MAGNETIC
|
| 3. |
J943738
|
[1] |
FILTER HEAD
|
CAS
Superseded by part number: 84152565AM, 87612306
|
| 4. |
845-8025
|
[4] |
BOLT,Hex Flg, M8 x 25mm, Cl 8.8
|
CAS
|
| 5. |
J937367
|
[1] |
GASKET
|
CAS
Corrosion Resistor Superseded by part number: 87612306
|
| 6. |
J943739
|
[1] |
SHUT-OFF VALVE
|
CAS
|
| 7. |
J943740
|
[1] |
SHUT-OFF VALVE
|
CAS
|
| 8. |
238-5111
|
[2] |
O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro
|
CAS
Superseded by part number: 128999
|
| 9. |
238-5013
|
[1] |
O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro
|
CAS
Superseded by part number: 14453080
|
| 10. |
J944454
|
[1] |
SELF-TAP SCREW,#6 - 20 x 1 3/8"
|
CAS
Self-Tapping
|
| 11. |
J100307
|
[1] |
ELEMENT
|
TYR
Corrosion Superseded by part number: 47601183
|
| 12. |
J940631
|
[1] |
OUTLET
|
CAS
Connector - Water
|
| 14. |
J940632
|
[1] |
THERMOSTAT
|
CAS
Superseded by part number: 84427136
|
| 15. |
238-5227
|
[2] |
O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro
|
CAS
Superseded by part number: 510121
|
