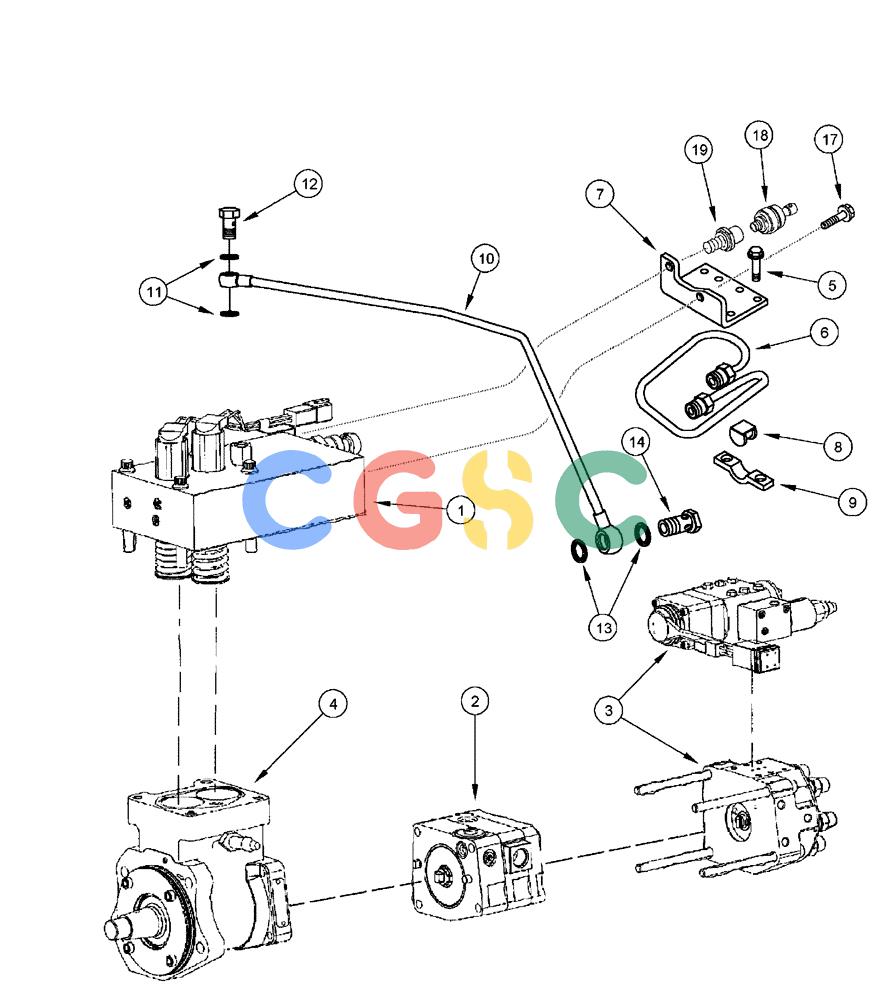

凯斯零件查询(FLX3300B) - FLOATER - 2002 (9/02-10/03) (02-049) - FUEL INJECTION PUMP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
491 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 0. |
J4076442
|
[1] |
FUEL INJECTION PUMP
|
CAS
Assembly Superseded by part number: JR4076442
|
| 0. |
JR4076442
|
[1] |
REMAN-INJECTION PUMP
|
CAS
FLX3300B
|
| 0. |
JC4076442
|
[1] |
CORE-INJECTION PUMP
|
CAS
Return Part Number
|
| 1. |
REF
|
[1] |
INSTRUCTION
|
NH
Kit - Accumulator, See Fig 02-050
|
| 4A. |
A77932
|
[1] |
KIT
|
CAS
Parts, Fuel Supply
|
| 5. |
NSS
|
[8] |
NOT SOLD SEPARAT
|
CON
Bolt - Special
|
| 10. |
J4010174
|
[1] |
FUEL TUBE,119, 189.7 mm L
|
CAS
Fuel Drain
|
| 11. |
J935170
|
[2] |
SPECIAL WASHER
|
CAS
Sealing Superseded by part number: 87417768
|
| 12. |
J918002
|
[1] |
BANJO BOLT
|
CAS
Screw
|
| 13. |
J918192
|
[2] |
PACKING RING,14mm ID x 20mm OD x 1mm Thk
|
CAS
Washer - Sealing, Special, 14 X 20 X 1 MM Superseded by part number: 87417767
|
| 14. |
J4002006
|
[1] |
BANJO BOLT,M14 x 1.5 x 26.40mm
|
CAS
Banjo
|
| 17. |
J417068
|
[1] |
FLANGE BOLT,Hex, M8 x 1.25 x 20mm, Gr 10.9
|
CAS
Hex Flange, 8 - 1.25 X 20 MM; 10.9
|
| 18. |
J4010051
|
[1] |
TEMPERATURE SENDER
|
CAS
|
| 19. |
J4010084
|
[1] |
ADAPTER
|
CAS
Sensor
|
