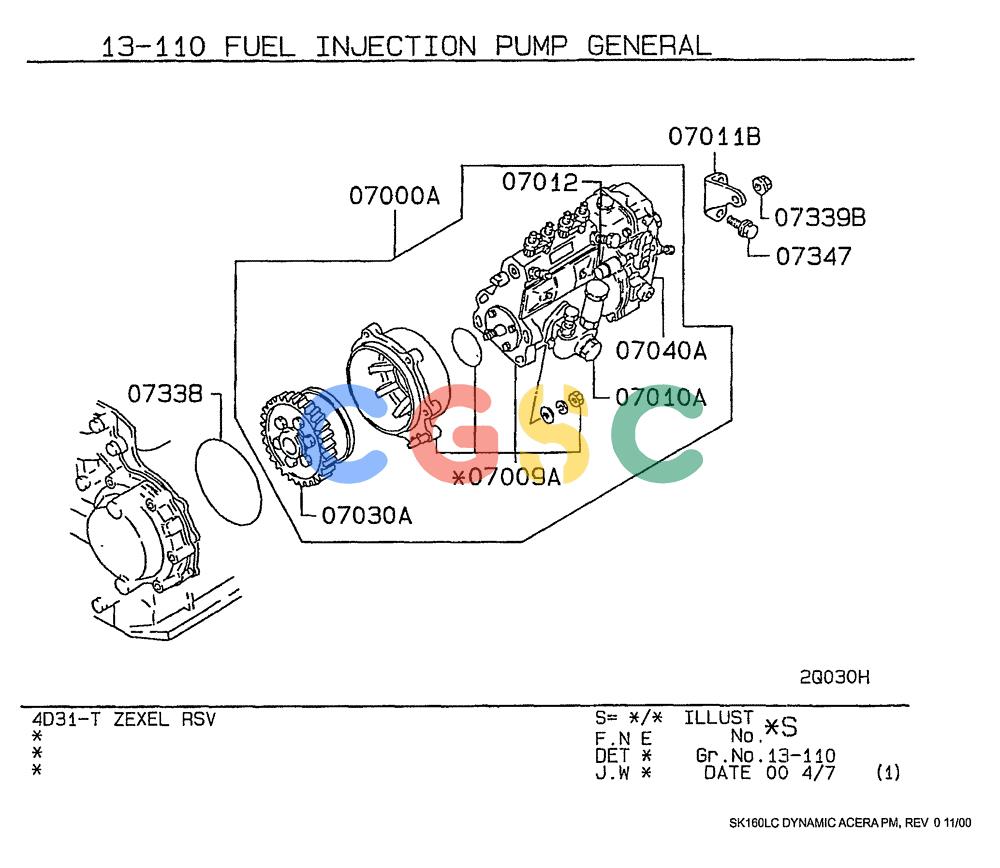

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (09-020) - FUEL INJECTION PUMP GENERAL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
832 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 07000A. | VAME440014 | [1] | PUMP | KOBPUMP ASSY, FUEL INJECTION, FROM-UP TO: 0001.1-, MODEL TYPE: ALL, Remarks: ZEXEL |
| 07009A. | NSS | [1] | NOT SOLD SEPARAT | CONBODY ASSY, INJECTION PUMP, FROM-UP TO: 0001.1-, MODEL TYPE: ALL, Remarks: NS |
| 07010A. | VAME742617 | [1] | PUMP | KOBPUMP ASSY, INJECTION PUMP FUEL FEED, FROM-UP TO: 0001.1-, MODEL TYPE: ALL |
| 07011B. | VAME217153 | [1] | BRACKET, INJECTION PUMP, FROM-UP TO: 0001.1-, MODEL TYPE: ALL | |
| 07012. | VAME741568 | [1] | CAP | KOBCAP, INJECTION PUMP, FROM-UP TO: 0001.1-, MODEL TYPE: ALL |
| 07030A. | VAME755119 | [1] | TIMER | KOBTIMER ASSY, INJECTION PUMP, FROM-UP TO: 0001.1-, MODEL TYPE: ALL |
| 07040A. | VAME755440 | [1] | GOVERNOR ASSY, INJECTION PUMP, FROM-UP TO: 0001.1-, MODEL TYPE: ALL, Remarks: RSV | |
| 07338. | VAMF520423 | [1] | O-RING | KOBO-RING, INJECTION PUMP, FROM-UP TO: 0001.1-, MODEL TYPE: ALL, Remarks: 135 Superseded by part number: VAF315313500 |
| 07339B. | VAMF434105 | [1] | NUT | KOBNUT, INJECTION PUMP, FROM-UP TO: 0001.1-, MODEL TYPE: ALL, Remarks: FLANGE, 10 |
| 07347. | VAMH000713 | [2] | BOLT | KOBBOLT, INJECTION PUMP, FROM-UP TO: 0001.1-, MODEL TYPE: ALL, Remarks: FLANGE, 10X20 |
