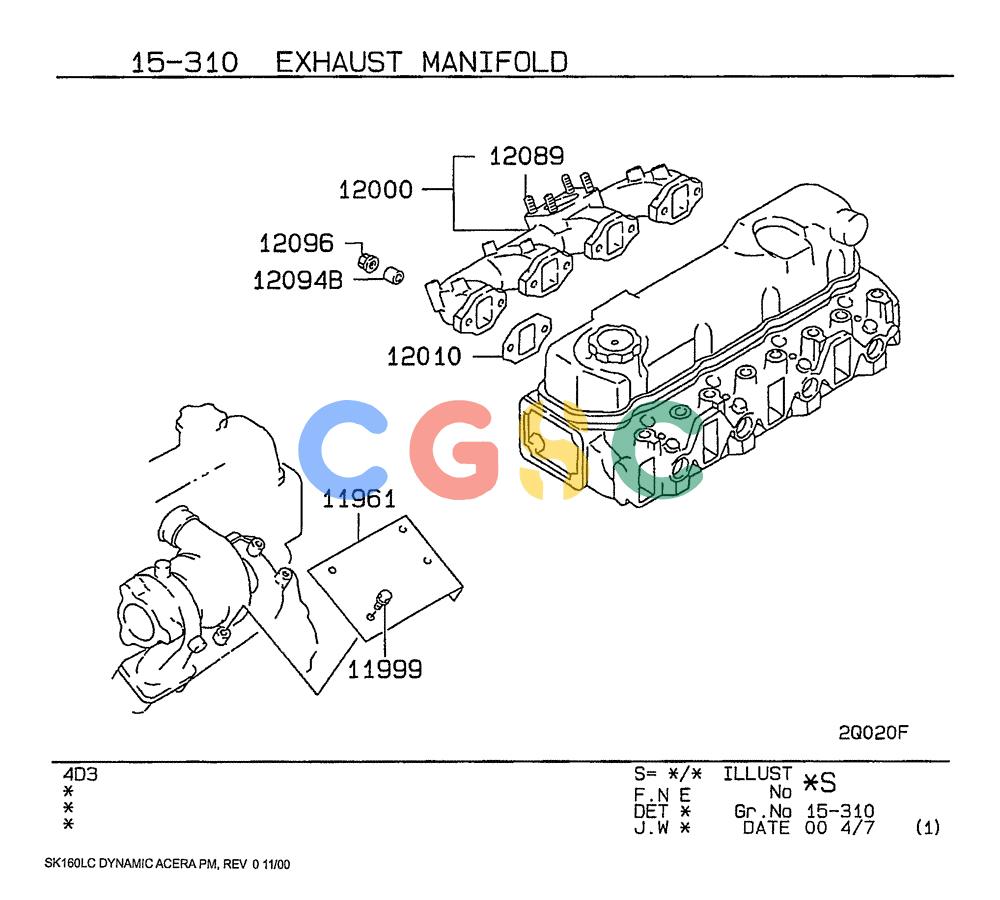

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (09-027) - EXHAUST MANIFOLD Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
301 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 11961. | VAME080482 | [1] | INSULATOR, ENG AIR INTAKE PIPE HEAT, FROM-UP TO: 0001.1-, MODEL TYPE: ALL | |
| 11999. | VAMH000392 | [4] | BOLT | KOBBOLT, ENG AIR INTAKE LINE, FROM-UP TO: 0001.1-, MODEL TYPE: ALL, Remarks: WASHER ASSEMBLED, 8X12 |
| 12000. | VAME080450 | [1] | EXHAUST MANIFOLD | KOBMANIFOLD, EXHAUST, FROM-UP TO: 0001.1-, MODEL TYPE: ALL |
| 12010. | VAME014349 | [4] | GASKET | KOBGASKET, EXHAUST MANIFOLD, FROM-UP TO: 0001.1-, MODEL TYPE: ALL |
| 12089. | VAMF407726 | [4] | STUD | KOBSTUD, EXHAUST MANIFOLD, FROM-UP TO: 0001.1-, MODEL TYPE: ALL, Remarks: 10X25 |
| 12094B. | VAME210059 | [8] | SPACER | KOBSPACER, EXHAUST MANIFOLD, FROM-UP TO: 0001.1-, MODEL TYPE: ALL, Remarks: T=21 |
| 12096. | VAMH004054 | [8] | NUT | KOBNUT, EXHAUST MANIFOLD, FROM-UP TO: 0001.1-, MODEL TYPE: ALL, Remarks: SELF LOCKING, FLANGE, 10 Superseded by part number: 134868A1 |
